64 22 137 Removing and installing/replacing left fresh-air grille

Special tools required:

NOTE: For special tools, refer to HEATING & AIR CONDITIONING - SPECIAL TOOLS - 645CI (E63) .

Partially fit special tool 64 1 020 as illustrated.

Lever out nozzle (1) at retaining points (2) and remove.

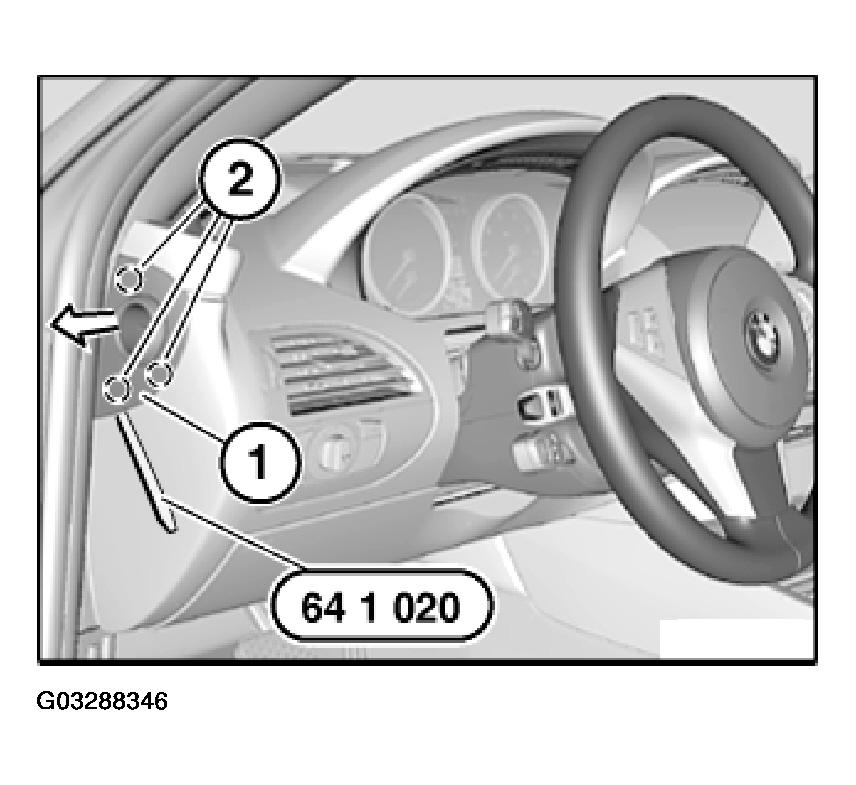

Fig 1: Levering Out Nozzle (1) At Retaining Points (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew bolt (1).

Hook special tool 64 1 020 into left fresh-air grill (2).

Unclip left fresh-air grill (2) towards rear and pull back.

Unlock and disconnect associated plug connection, remove left fresh-air grill (2).

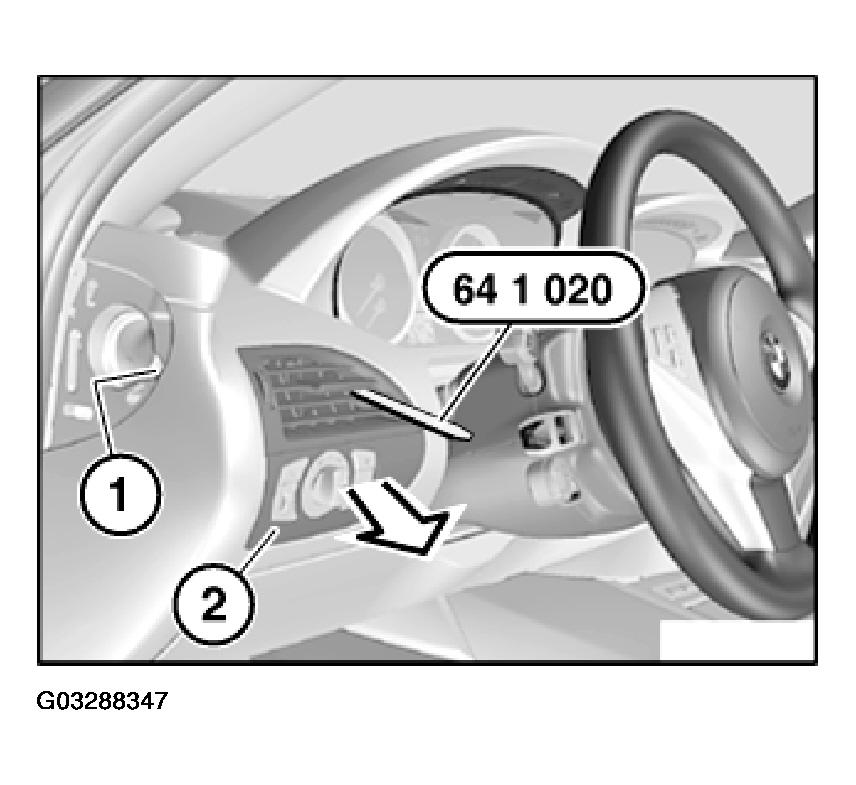

Fig 2: Hooking Special Tool 64 1 020 Into Left Fresh-Air Grill (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
