61 31 037 Removing and installing/replacing lighting control unit
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW M6, 2009 BMW M6, 2008 BMW M6, 2007 BMW M6, and 2006 BMW M6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove left fresh-air grill, refer to 64 22 137 REMOVING AND INSTALLING/REPLACING LEFT FRESH-AIR GRILL .
Replacement:

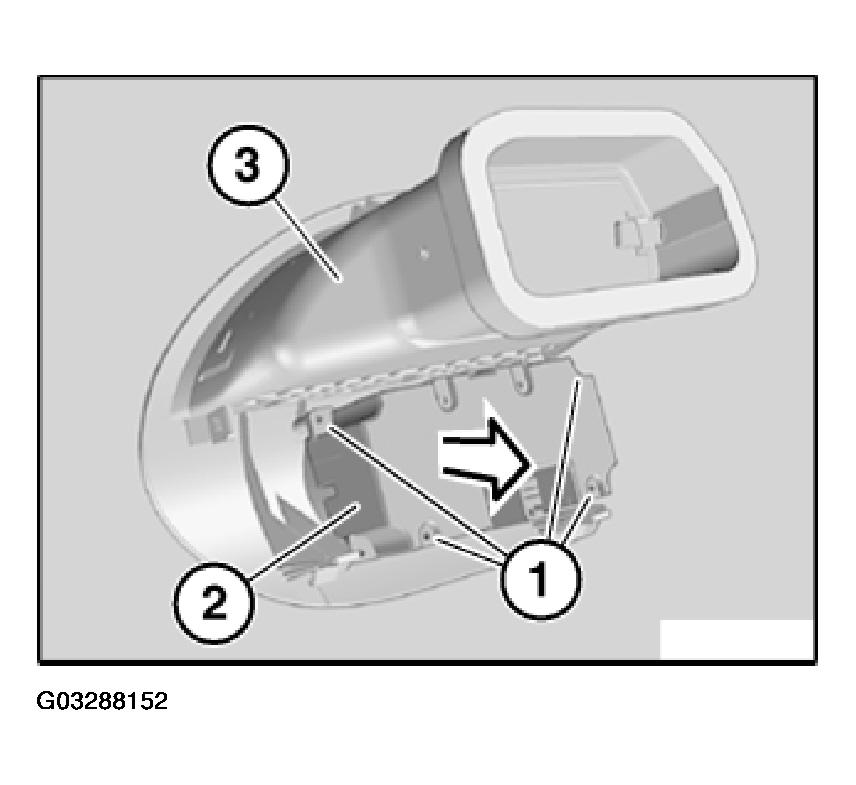

Release screws (1).
Remove lighting control unit (2) from left fresh-air grill (3).
