84 50 033 Removing and installing/replacing multiband telephone antenna: Notes

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Applicable to vehicles up to 03/2003 only

Necessary preliminary tasks:

Remove insert on rear console. Refer to 51 44 180 REMOVING AND INSTALLING / REPLACING REAR CONSOLE INSERT / MAKE-UP MIRROR IN REAR COMPARTMENT .

Unclip plug connections (1) from insert on rear console (2) and disconnect.

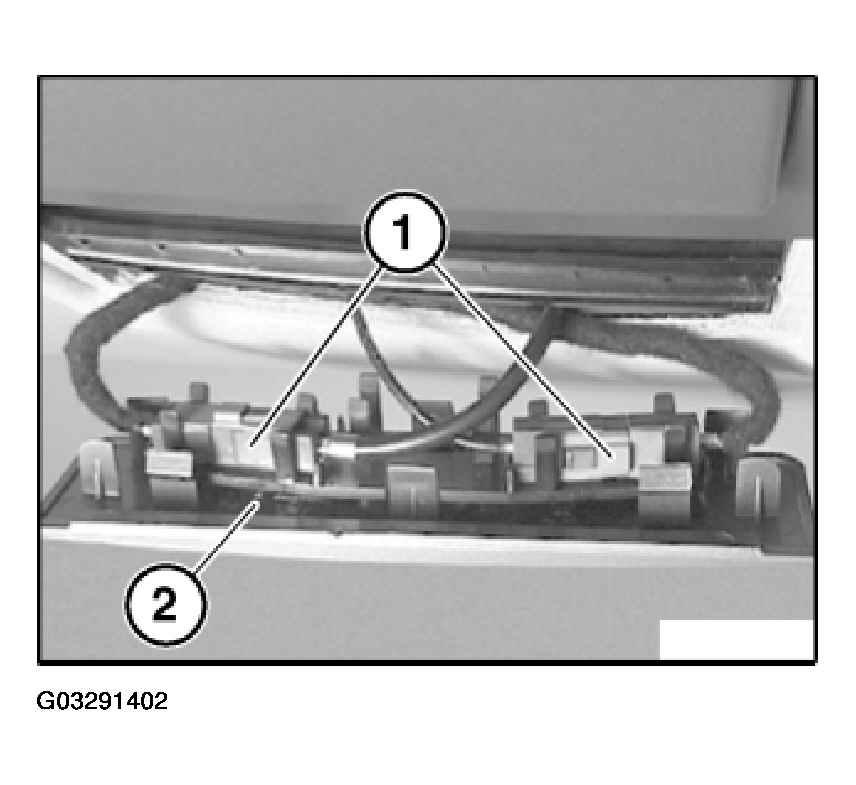

Fig 1: Unclipping Plug Connections From Insert On Rear Console

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach a cord to one of the two antenna lead to be fed out to make it easier to feed in later.
