51 44 180 Removing and installing / replacing rear console insert / make-up mirror in rear compartment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove ceiling light (rear), refer to 63 31 003 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT (REAR)

Lever out insert (1) in direction of arrow.

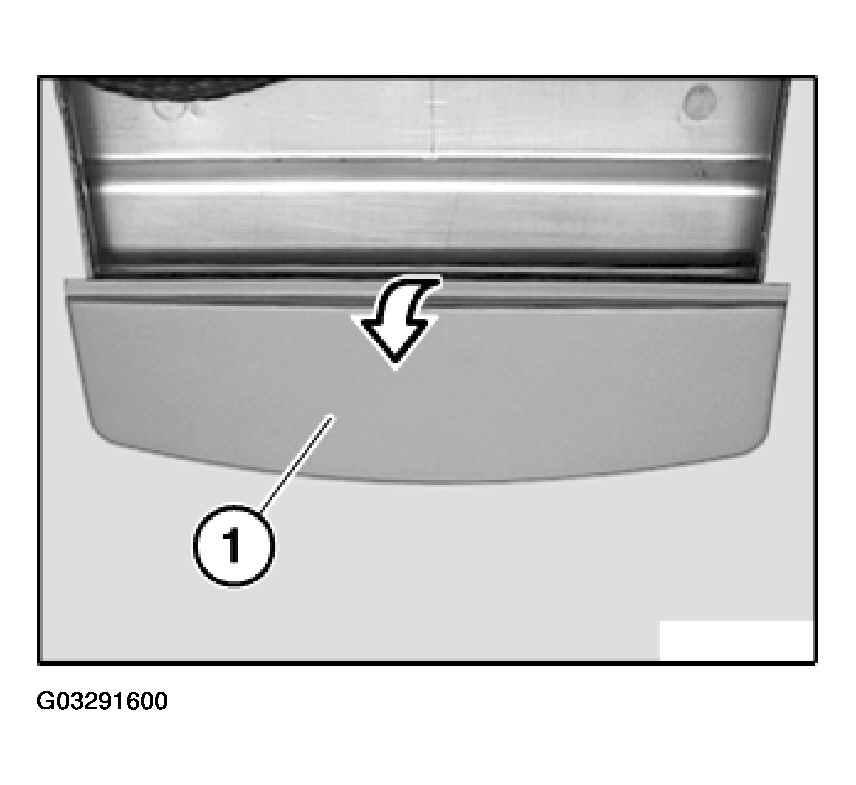

Fig 1: Removing Insert

G03291600

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip plug connections above and remove rear insert (1).

Installation:

Make sure plug connections (1) are correctly seated in console (2).

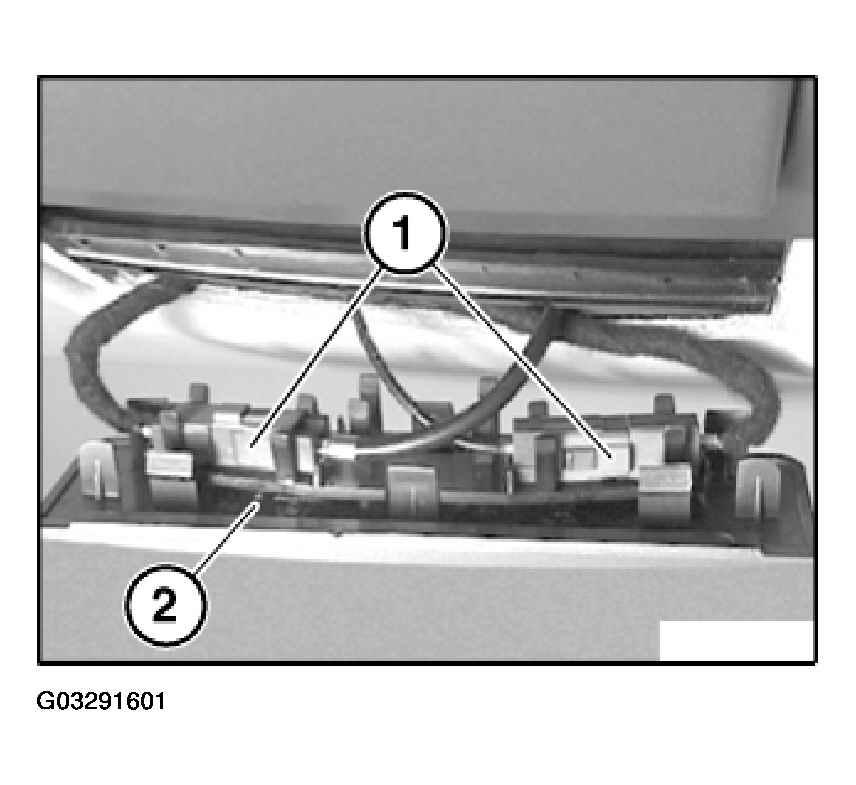

Fig 2: Installing Plug Connections

G03291601

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out make-up mirror (1) in direction of arrow.

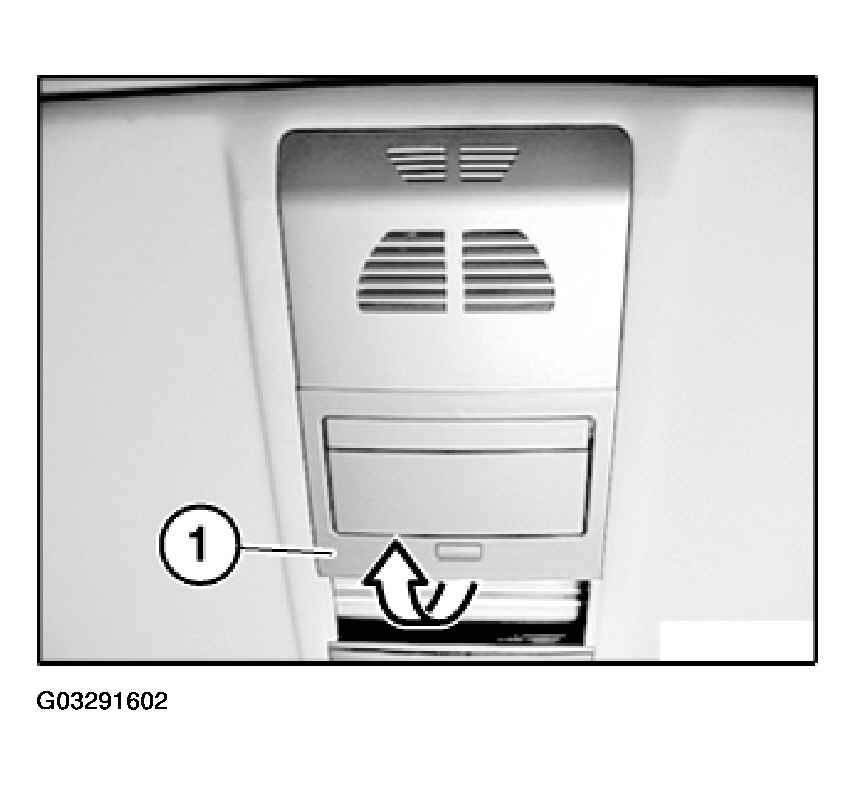

Fig 3: Removing Make-Up Mirror

G03291602

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection underneath and remove make-up mirror (1).

Lever out insert (1) in direction of arrow.

Version with anti-theft alarm system:

Disconnect plug connection underneath.

Remove insert (1).

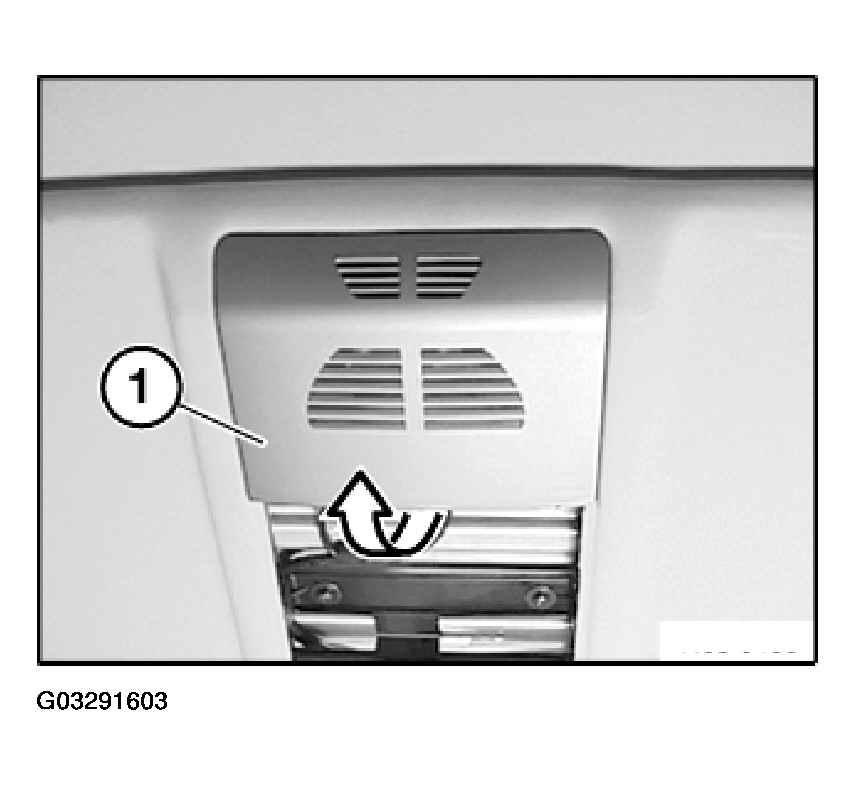

Fig 4: Removing Insert

G03291603

Courtesy of BMW OF NORTH AMERICA, INC.
