67 64 010 Removing and installing/replacing drive unit for electric steering column adjustment
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Move steering column into "lower" and "extended" position
- Disconnect battery negative lead, refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
- Remove panel for active knee protection, left, refer to 51 45 175 REMOVING AND INSTALLING/REPLACING PANEL FOR KNEE PROTECTOR ON LEFT or 51 45 177 REMOVING AND INSTALLING/REPLACING PANEL FOR ACTIVE KNEE PROTECTOR ON LEFT
NOTE:
For purposes of clarity, graphic shows steering column removed.

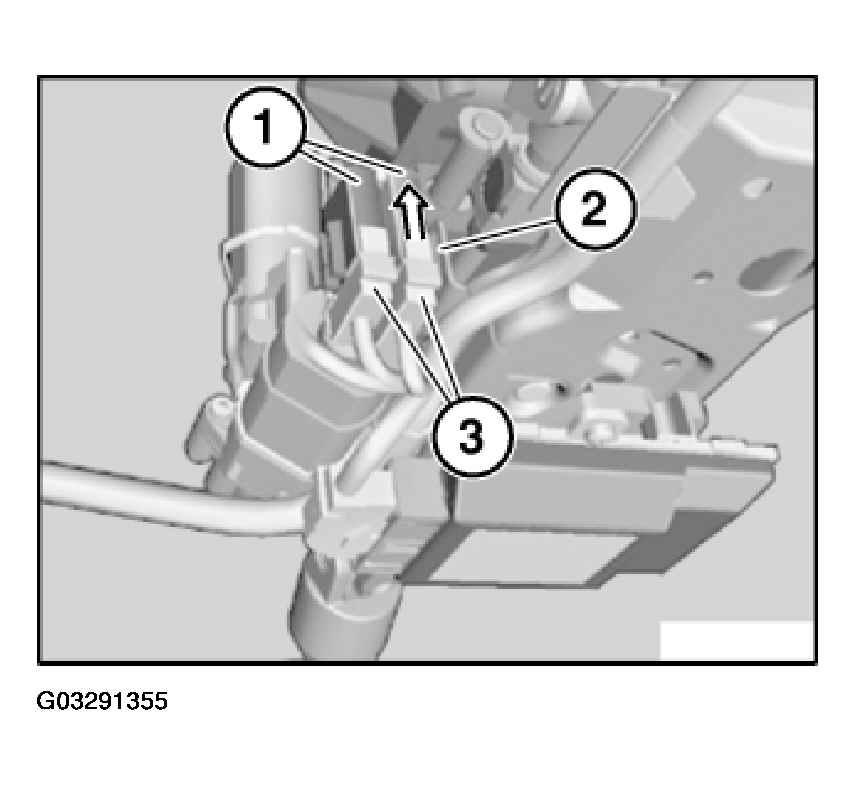

Unlock plug housings (1) and remove from holder (2) in direction of arrow.
Disconnect plug connections (3).
IMPORTANT:
Do not bend or twist drive shafts when removing!

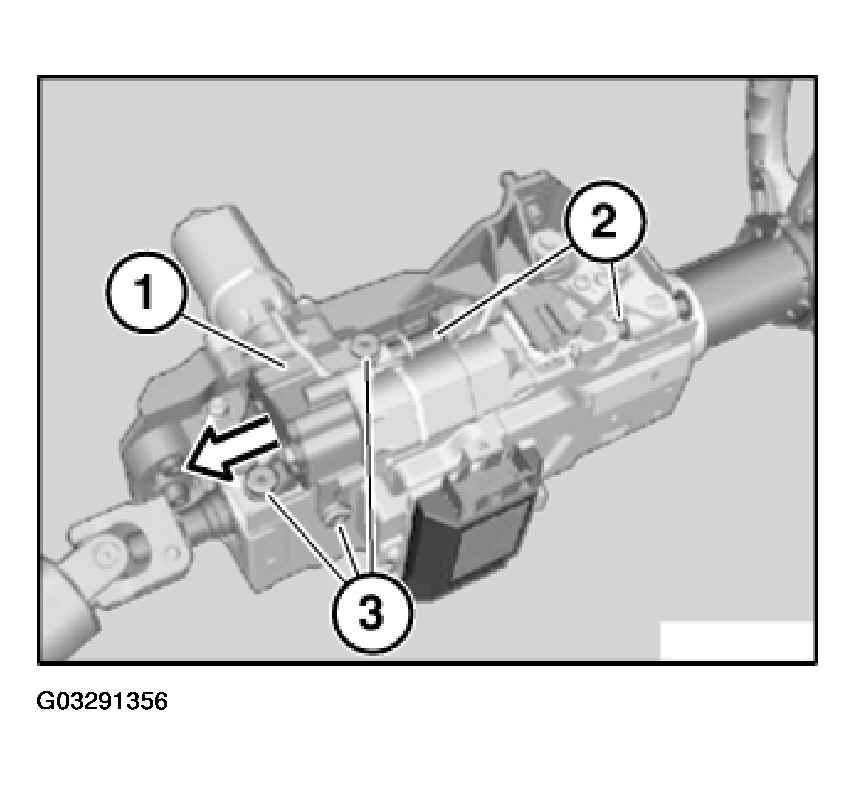

Release screws (3) and feed out drive (1) in direction of arrow.
Installation:
Replace screws (3).
Tightening torque, 6-10 Nm.
Installation:
Drive shafts must be inserted exactly in guides (2).

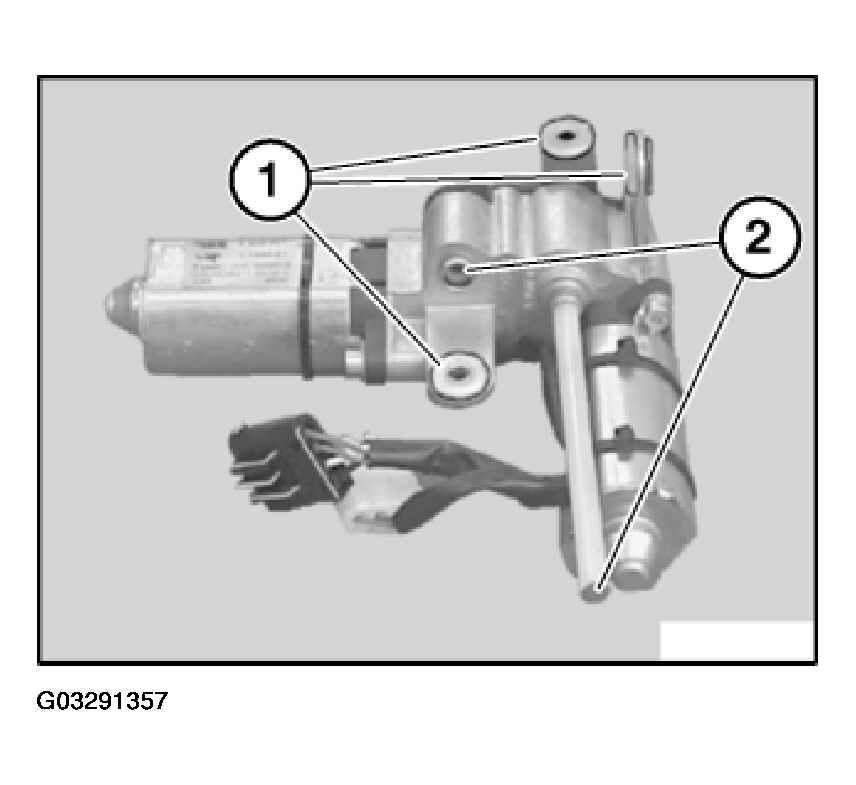

Check plastic bearings (1), replace if necessary.
