65 50 631 Replacing control unit for rear compartment monitor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear compartment fresh air grill. Refer to 64 22 191 REMOVING AND INSTALLING/REPLACING REAR COMPARTMENT FRESH-AIR GRILLE (AUTOMATIC A/C HIGH) .
Remove side panels on center console. Refer to 51 16 ... REMOVING AND INSTALLING SIDE PANELS ON CENTER CONSOLE .

CAUTION: The fully installed rear compartment monitor can only be swiveled up and down with the ignition turned on. Then turn off ignition again immediately.

Swiveling rear compartment monitor up/down without ignition voltage, refer to 65 50 120 REMOVING AND INSTALLING/REPLACING REAR COMPARTMENT MONITOR .

NOTE: Follow instructions for handling optical fibers. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS .

Fold up rear compartment monitor (1).

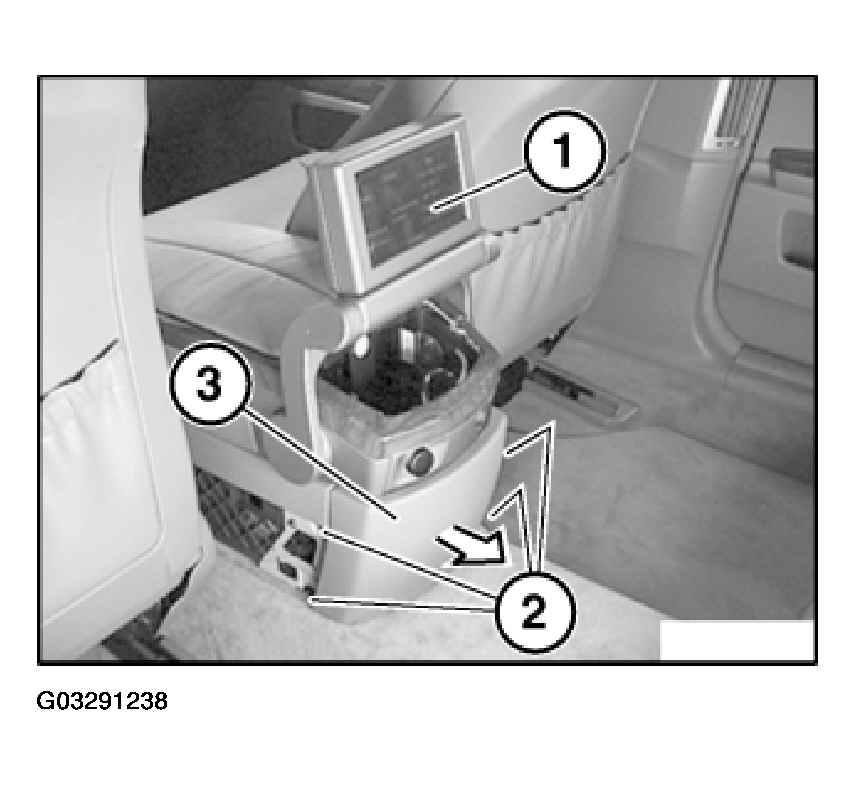

Fig 1: Removing Trim In Center Console At Rear

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove trim in center console at rear (3) in direction of arrow.

Release screws (1).

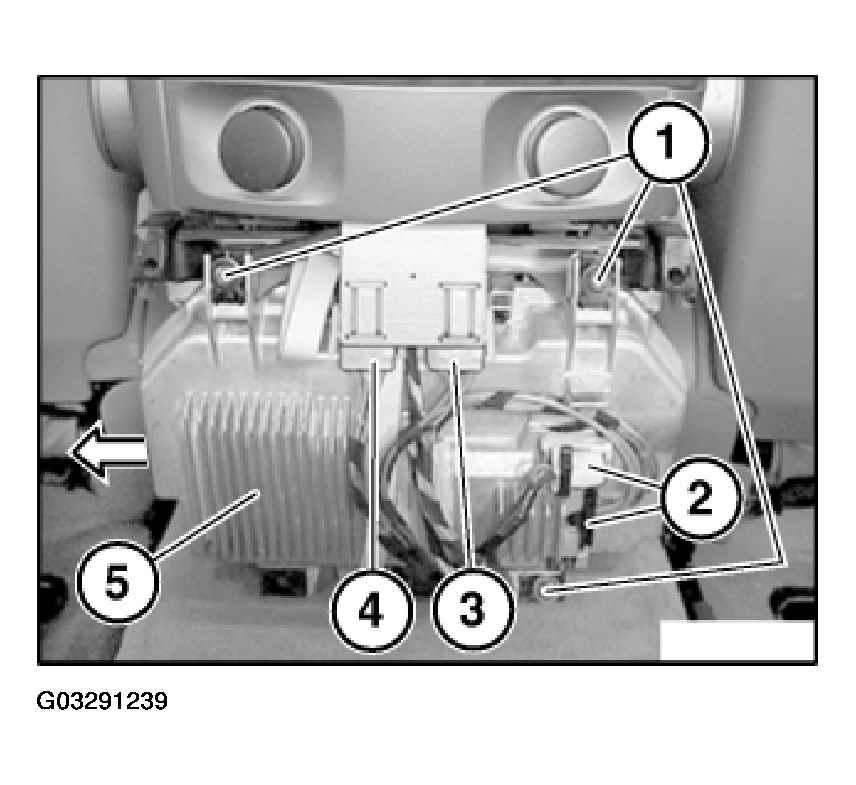

Fig 2: Unlocking Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Do not mix up plug connections (3) and (4).

Unlock plug connections (2), (3) and (4) and disconnect.

Feed out control unit for rear compartment monitor (5) in direction of arrow and set down.

Unlock plug connection (1) and disconnect.

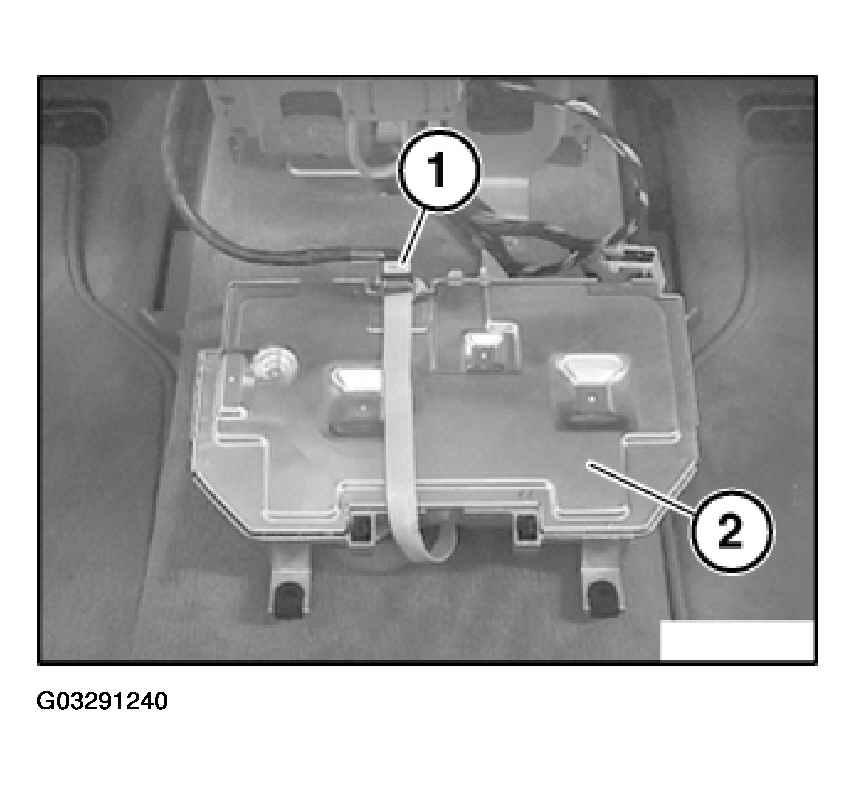

Fig 3: Removing Control Unit For Rear Compartment Monitor

Courtesy of BMW OF NORTH AMERICA, INC.

Remove control unit for rear compartment monitor (2).

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

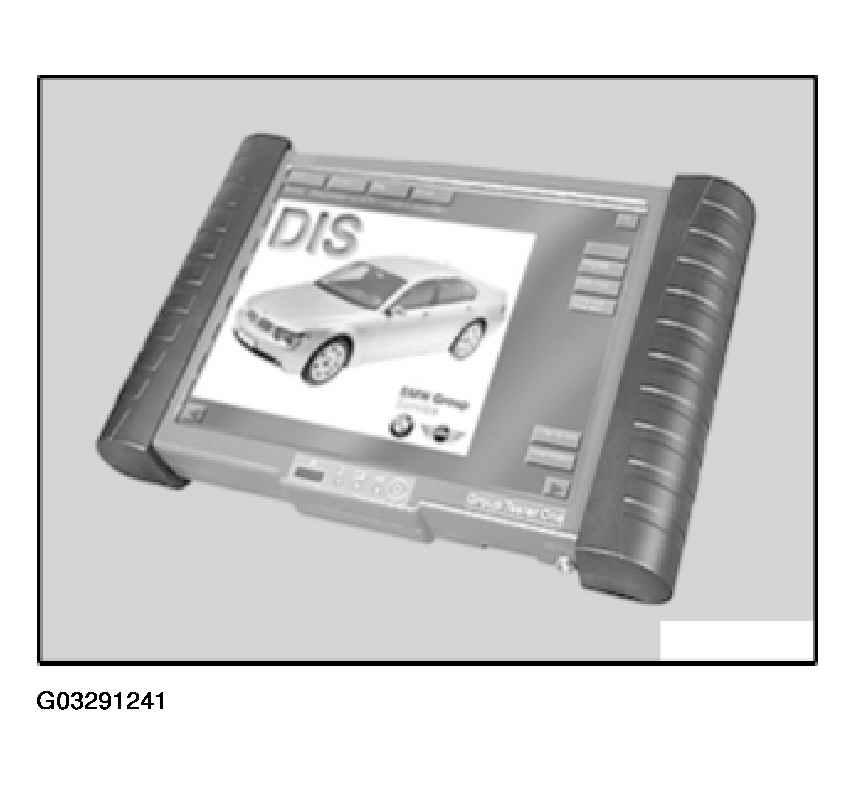

Fig 4: View Of Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
