65 50 120 Removing and installing/replacing rear compartment monitor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove center armrest (front). Refer to 51 16 195 REMOVING AND INSTALLING CENTRE ARMREST (FRONT) .

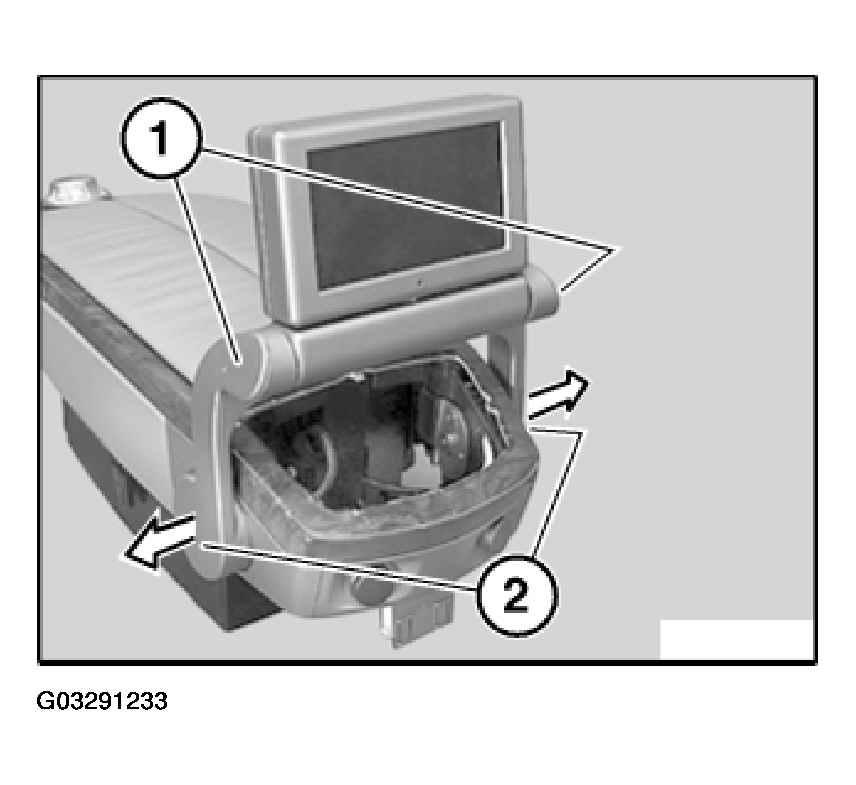

Release screws (1).

Fig 1: Removing Side Trims

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip side trims (2) in direction of arrow and remove.

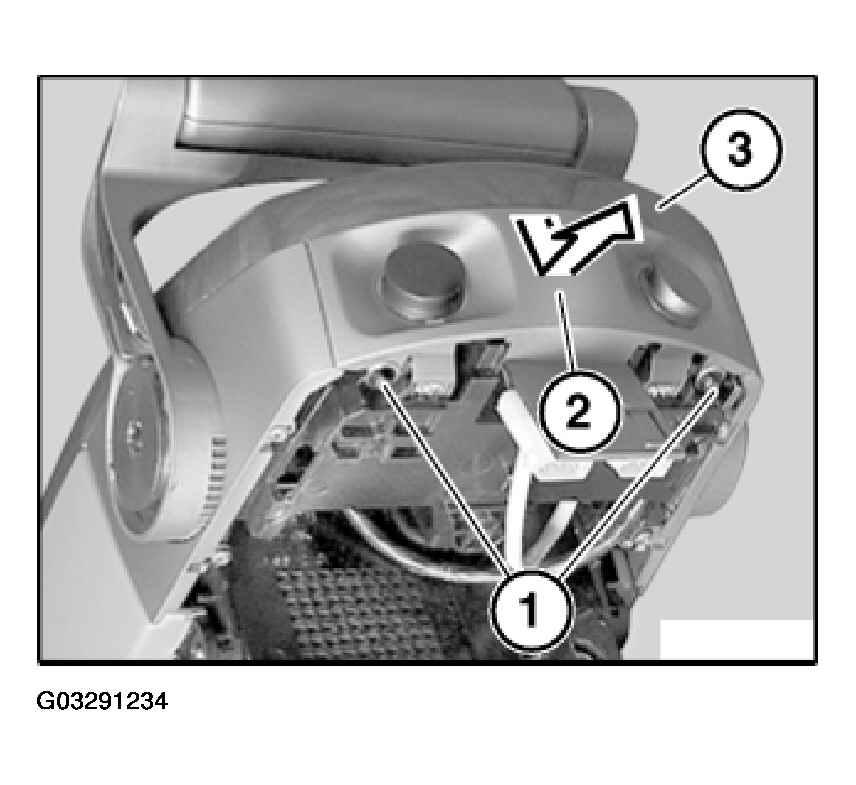

Release screws (1).

Fig 2: Feeding Out Rear Center Armrest Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out rear center armrest trim (2) in direction of arrow from center armrest (3) and pull back.

NOTE: Detaching rear compartment monitor mountings is shown on left side; proceed in same way for detaching on right side.

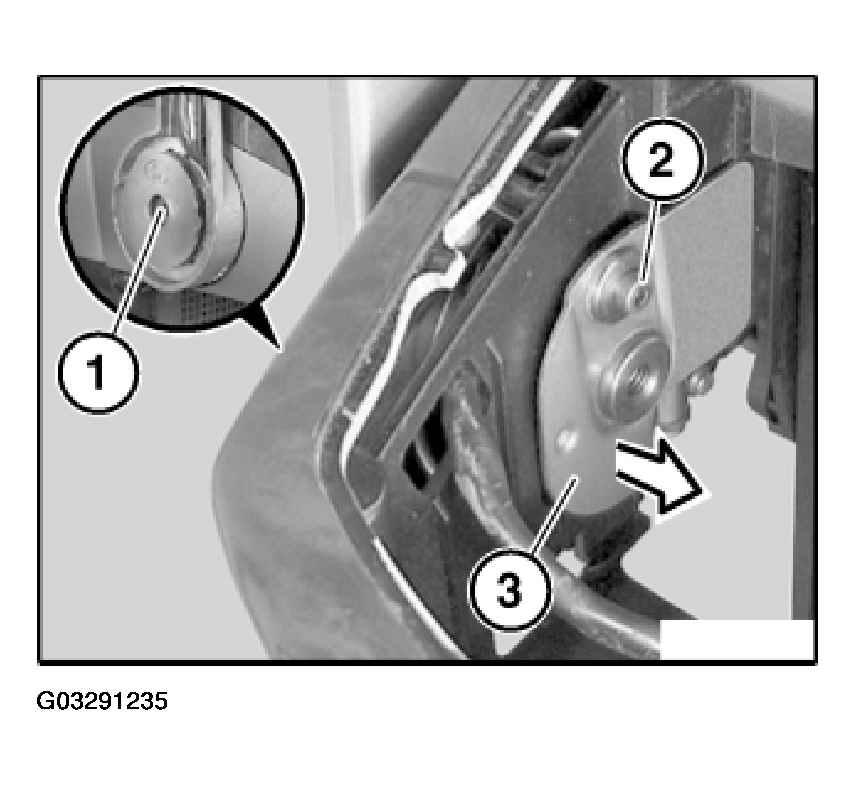

Release screw (1).

Fig 3: Removing Rear Compartment Monitor Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 65 52 2AZ. Refer to AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES - 745I - E65 .

Release screw (2) and remove rear compartment monitor mounting (3) in direction of arrow.

Installation:

Tightening torque, 65 52 1AZ. Refer to AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES - 745I - E65 .

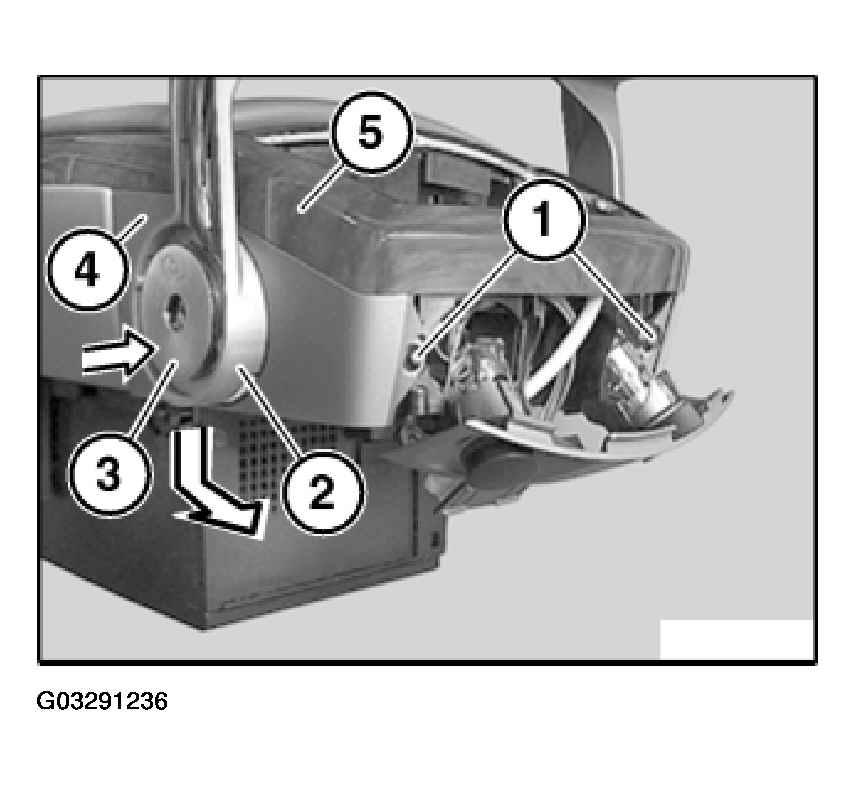

Release screws (1).

Fig 4: Feeding Out Trim

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Removing rear compartment monitor is shown on left side; proceed in same way for removing on right side.

Press metal ring (3) to unlock mechanism of rear compartment monitor (2). If necessary, swivel rear compartment monitor (2) downwards.

Feed out trim (4) downwards from center armrest (5).

Installation:

Make sure trim (4) is correctly seated on center armrest (5).

Pull back rear compartment monitor (2) complete with trim (4) in direction of arrow. Feed associated rear compartment monitor leads out of center armrest (5) and remove monitor (2) complete with trim (4).

Installation:

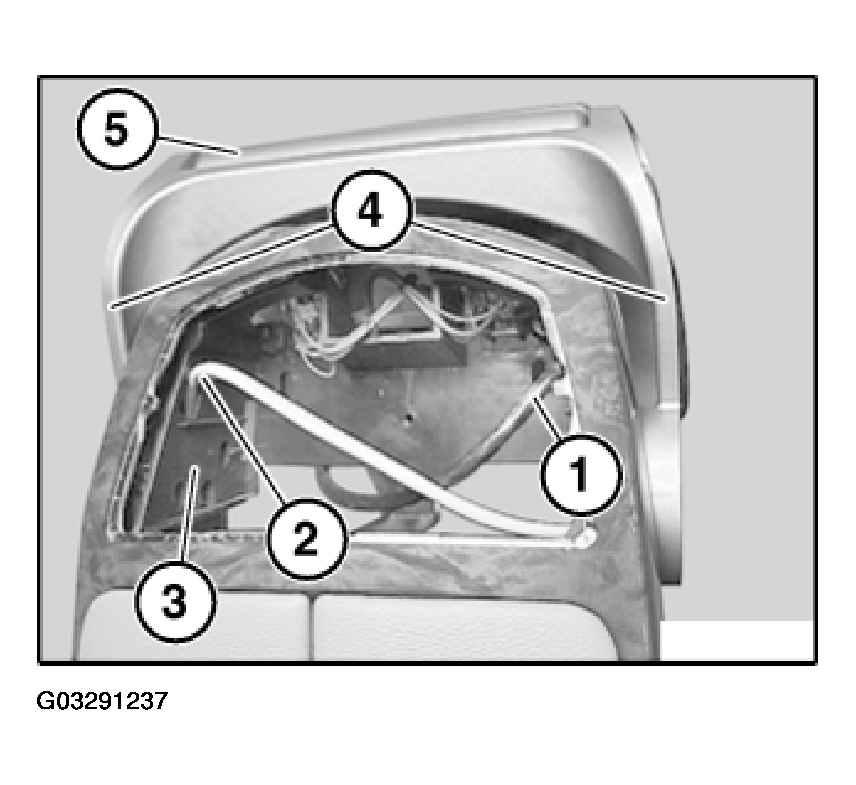

Feed rear compartment monitor leads (1) and (2) as illustrated into openings of center armrest (3).

Fig 5: View Of Rear Compartment Monitor Leads

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure rear compartment monitor leads (1) and (2) are correctly seated in folding arms (4) of monitor (5).
