51 16 195 Removing and installing centre armrest (front)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Close front cup holder
Remove side panels on centre console, refer to 51 16... REMOVING AND INSTALLING SIDE PANELS ON CENTRE CONSOLE
Remove fresh air grille in rear compartment, refer to 64 22 191 REMOVING AND INSTALLING/REPLACING REAR COMPARTMENT FRESH-AIR GRILLE (AUTOMATIC A/C HIGH)

Version with rear compartment monitor:

If necessary, remove control unit for rear compartment monitor, refer to 65 50 631 REPLACING CONTROL UNIT FOR REAR COMPARTMENT MONITOR

Version with rear compartment monitor:

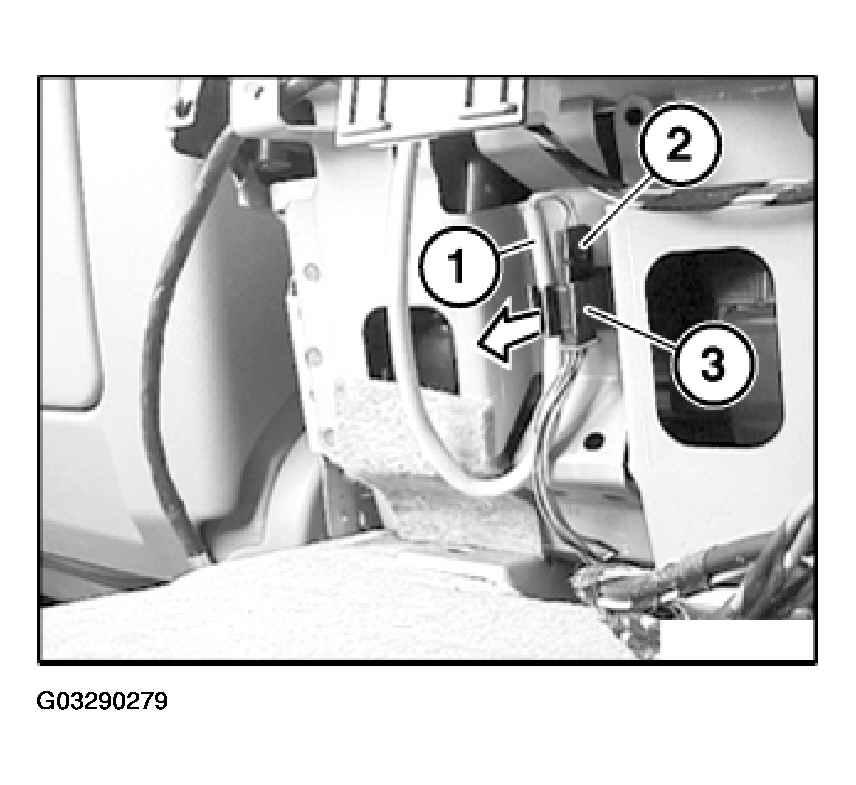

Unclip rear compartment monitor lead (1) and plug connection (2) in direction of arrow from fixture (3).

Fig 1: Disconnecting Plug Connection

G03290279

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (2).

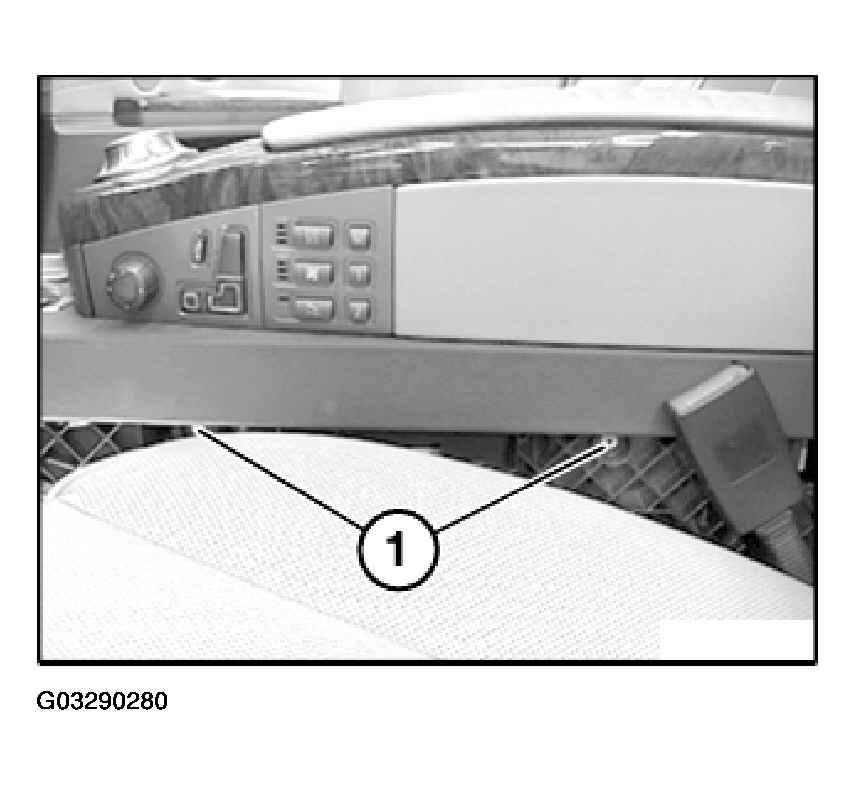

Release screws (1) on left/right.

Fig 2: Releasing Screws

G03290280

Courtesy of BMW OF NORTH AMERICA, INC.

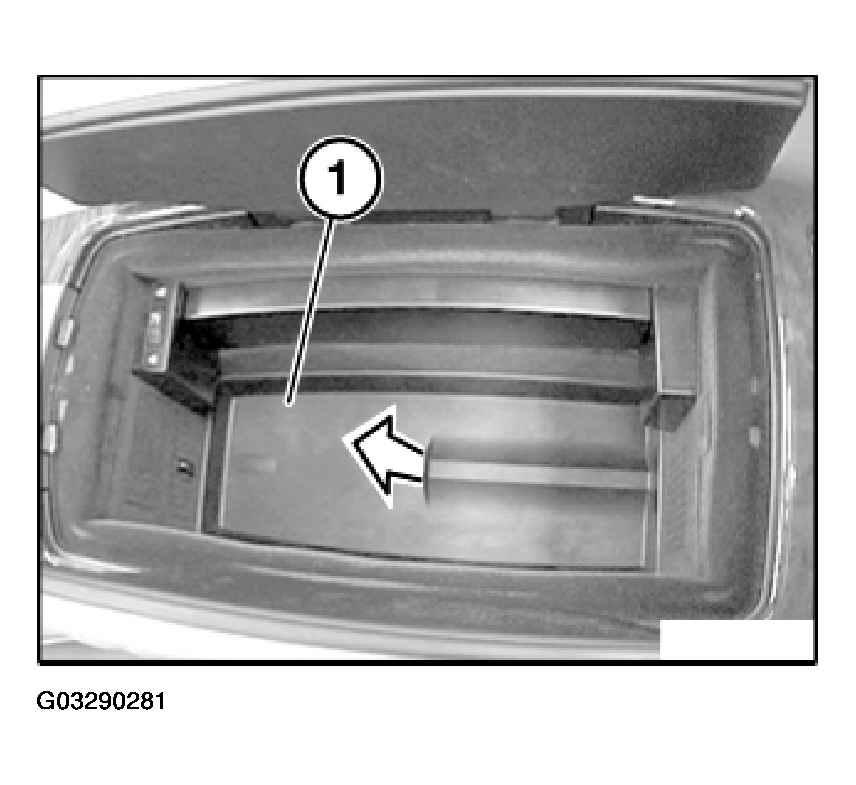

Pull out mat insert (1) in direction of arrow.

Fig 3: Removing Mat Insert

G03290281

Courtesy of BMW OF NORTH AMERICA, INC.

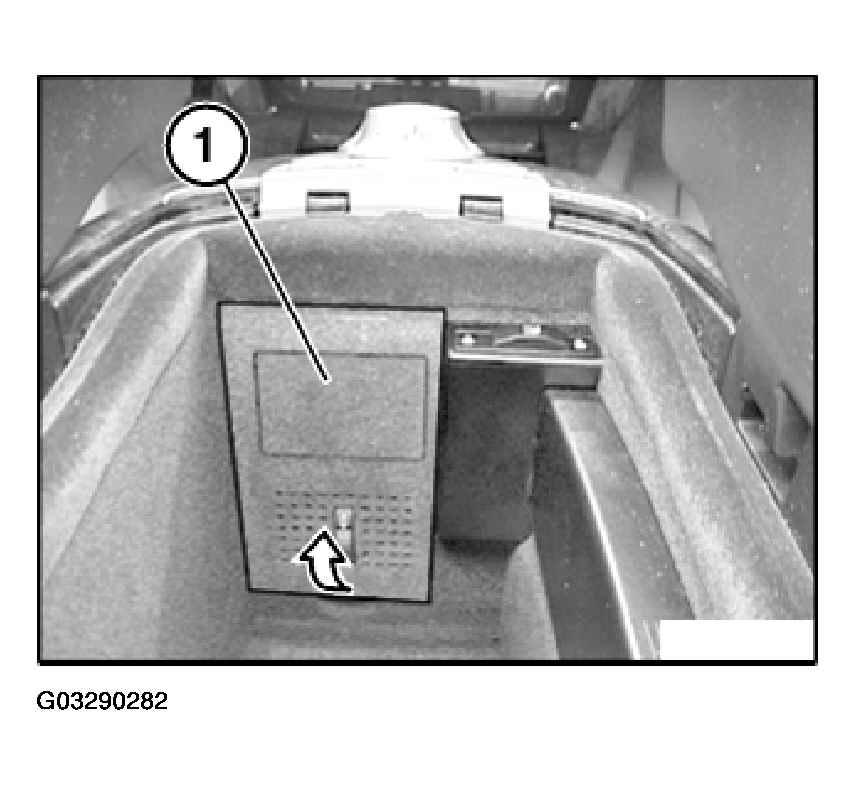

Pull out coin box (1) in direction of arrow and remove.

Fig 4: Removing Coin Box

G03290282

Courtesy of BMW OF NORTH AMERICA, INC.

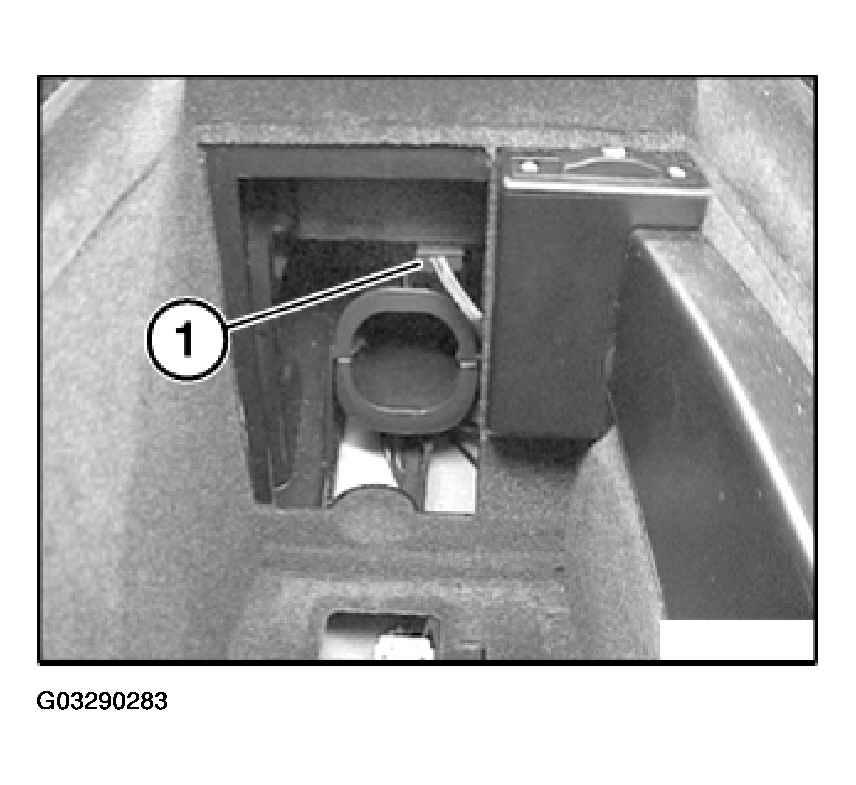

Disconnect plug connection (1).

Fig 5: Disconnecting Plug Connection

G03290283

Courtesy of BMW OF NORTH AMERICA, INC.

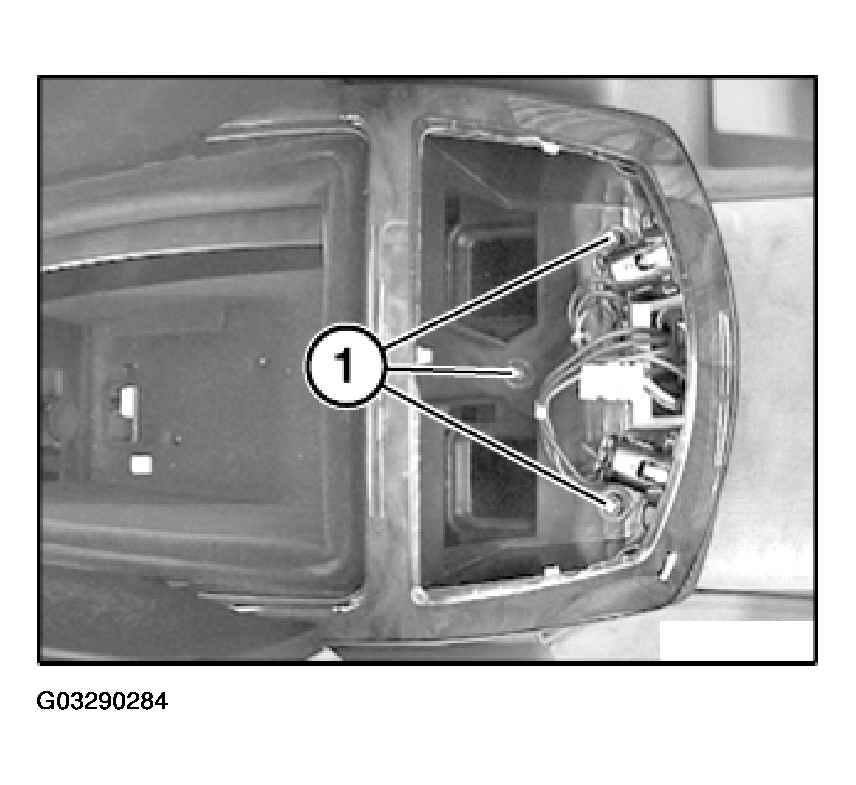

Unscrew nuts (1).

Fig 6: Unscrewing Nuts

G03290284

Courtesy of BMW OF NORTH AMERICA, INC.

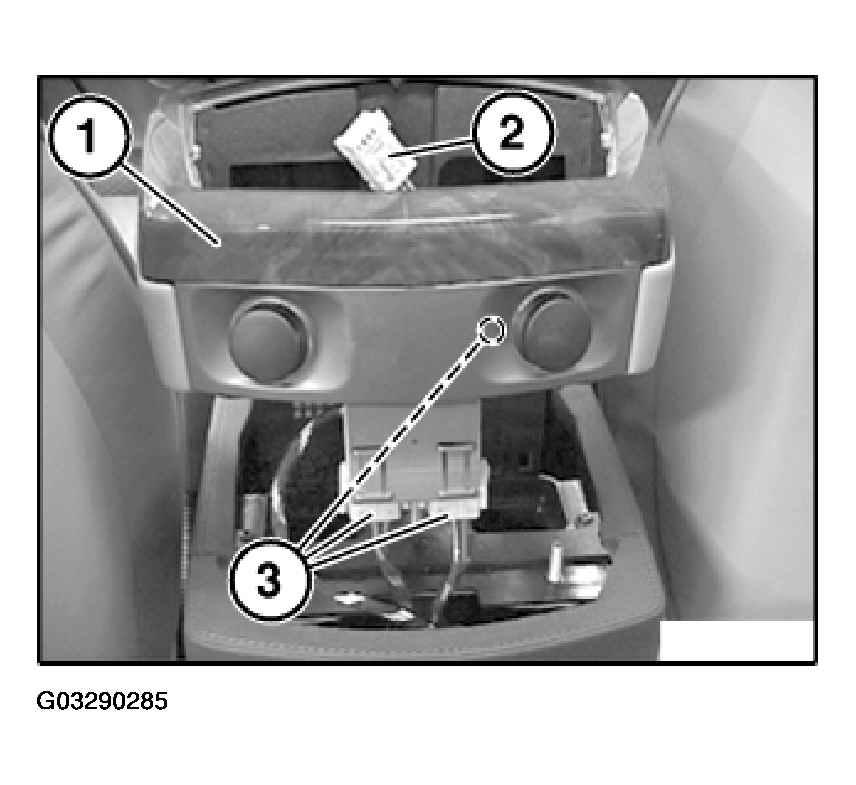

Raise centre armrest (1) slightly.

Fig 7: Removing Center Armrest

G03290285

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out plug (2) towards bottom.

Unlock plug connections (3) and disconnect.

Lift off centre armrest (1).
