65 12 250 Removing and installing/replacing headphones module

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect battery negative lead, refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD
Remove flap in luggage compartment panel on left. Refer to 51 47 172 REMOVING AND INSTALLING / REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

NOTE: Follow instructions for handling optical fibers. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS .

Unscrew nuts (1).

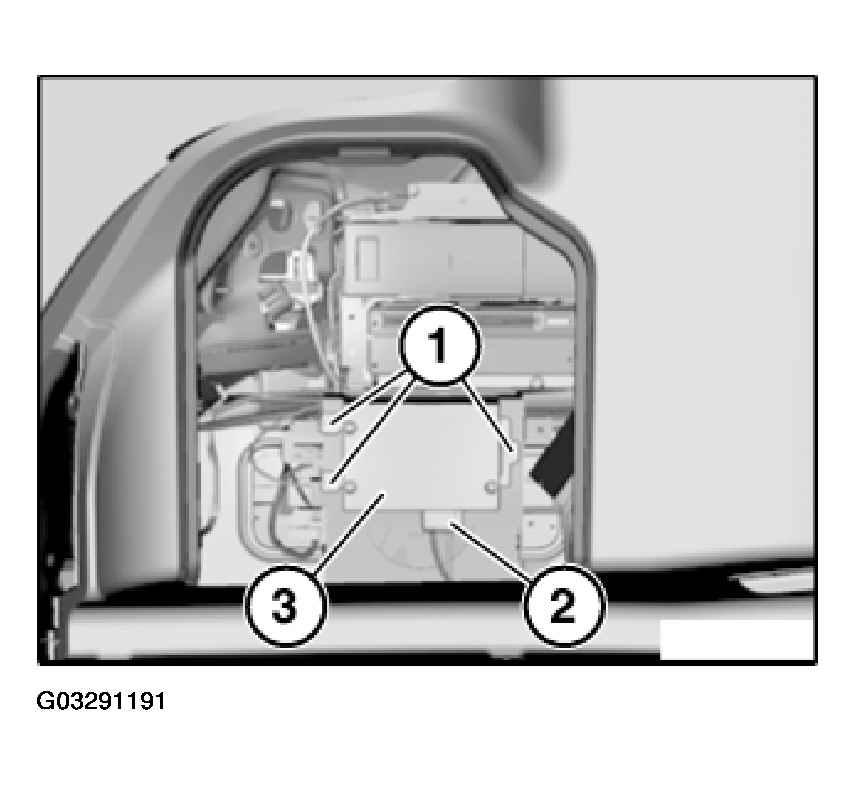

Fig 1: Removing Headset Module

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (2) and disconnect.

Remove headset module (3).
