61 20 900 Disconnecting and connecting battery negative lead

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe safety instructions for handling vehicle battery. Refer to 61 00... SAFETY INSTRUCTIONS FOR HANDLING VEHICLE BATTERY .
Follow instructions for disconnecting and connecting battery. Refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Necessary preliminary tasks:

Remove battery cover or open right luggage compartment trim panel, refer to 61 21... REMOVING AND INSTALLING / REPLACING BATTERY COVER

Disconnect battery negative lead (1).

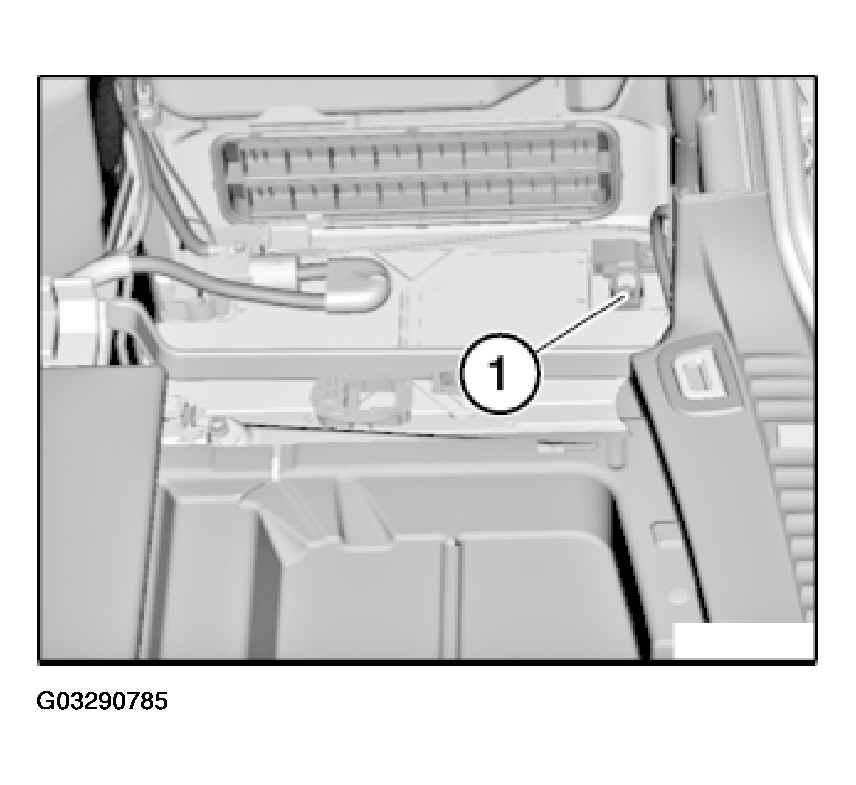

Fig 1: Disconnecting Battery Negative Lead

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Cover battery negative terminal post and secure negative lead (1) at side.

Tightening torque 61 21 1AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .
