65 12 070 Removing and installing/replacing amplifier
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Disconnect battery negative lead, refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD
- Remove luggage compartment wheel arch trim on left, refer to 51 47 151 REMOVING AND INSTALLING / REPLACING LEFT LUGGAGE COMPARTMENT WHEEL ARCH TRIM

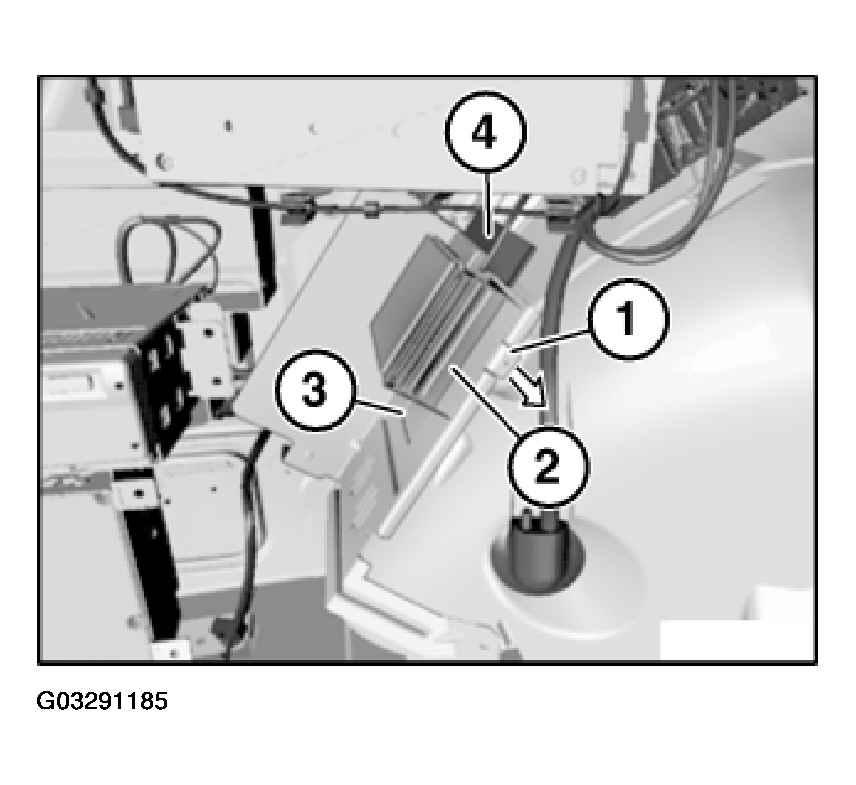

Pull out retaining plate (1) in direction of arrow.
Installation:
Make retaining plate (1) is correctly seated.
Remove amplifier (2) from holder (3). Unfasten plug connection (4) and disconnect.
