65 75 071 Removing and installing (replacing) module for passenger compartment sensor

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove make-up mirror and front console insert. Refer to 51 44 180 REMOVING AND INSTALLING / REPLACING REAR CONSOLE INSERT / MAKE-UP MIRROR IN REAR COMPARTMENT .

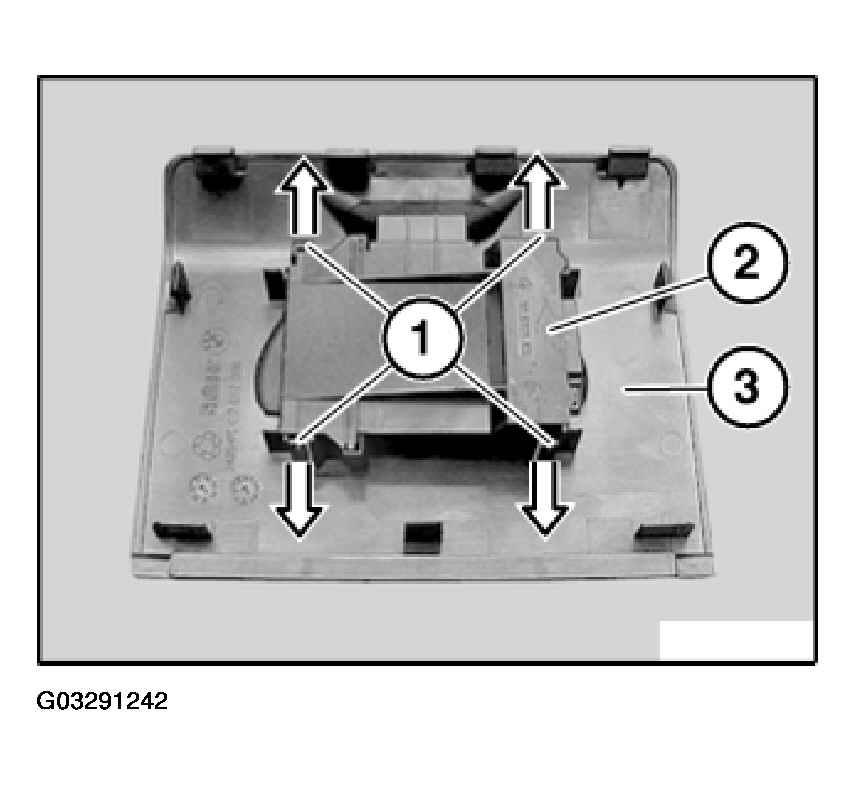

Open detent lugs (1) in direction of arrow and remove module for passenger compartment sensor (2) from front console insert (3).

Fig 1: Removing Module For Passenger Compartment Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

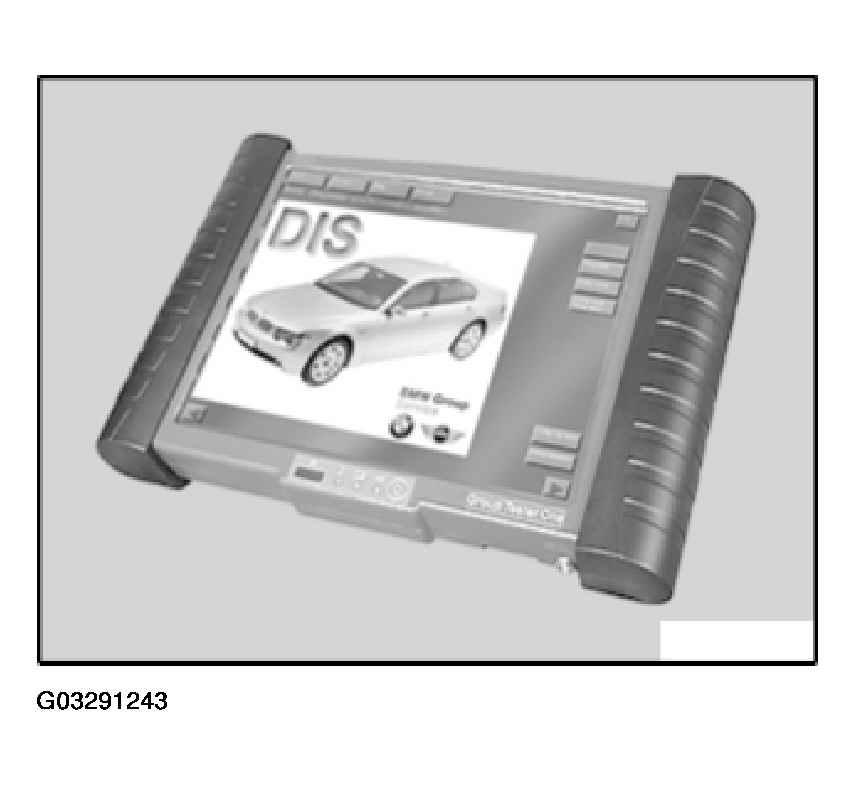

Fig 2: View Of Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
