65 20 220 Removing and installing/replacing rear window antenna amplifier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove blocking circuit. Refer to 65 24 020 REMOVING AND INSTALLING OR REPLACING BLOCKING CIRCUIT .

NOTE: For purposes of clarity, the illustration shows the panel for the rear parcel shelf removed.

Disconnect plug connections (1).

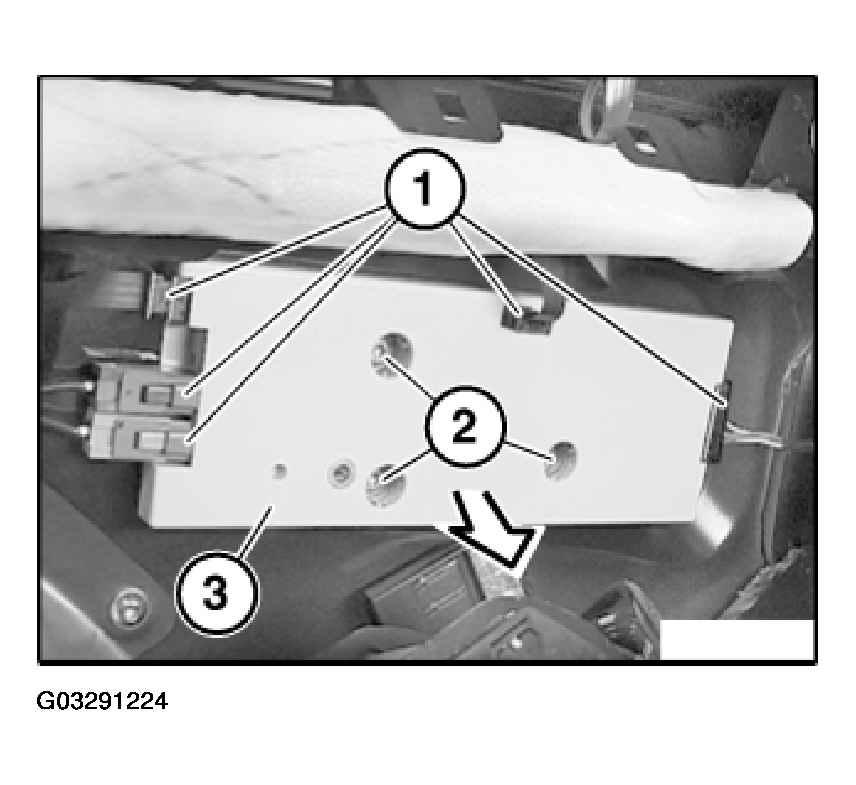

Fig 1: Removing Rear Window Antenna Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove rear window antenna amplifier (3) in direction of arrow.
