65 24 020 Removing and installing or replacing blocking circuit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim on C-pillar at bottom right, refer to 51 43 230 REMOVING AND INSTALLING / REPLACING TRIM ON C-PILLAR AT BOTTOM LEFT OR RIGHT or 51 43 245 REMOVING AND INSTALLING/REPLACING TRIM ON C-PILLAR AT BOTTOM (WITH ELECTRIC REAR SEAT ADJUSTMENT) ON LEFT OR RIGHT

NOTE: For purposes of clarity, the illustration shows the panel for the rear parcel shelf removed.

Disconnect plug connections (1).

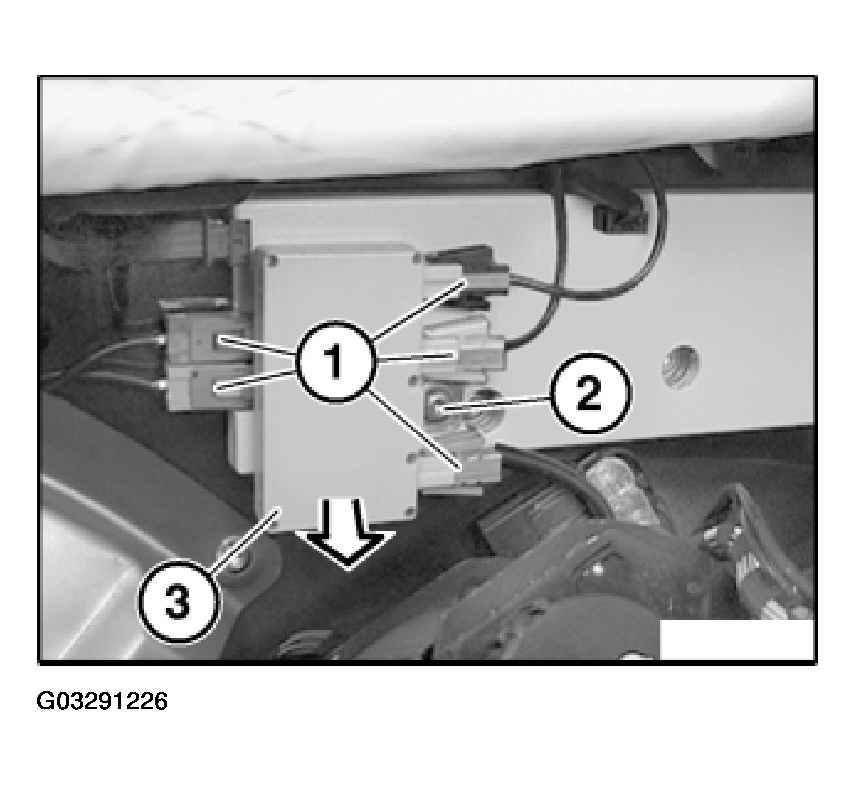

Fig 1: Removing Blocking Circuit From Rear Window Antenna Amplifier

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2) and remove blocking circuit (3) in direction of arrow from rear window antenna amplifier.

Installation:

Make sure guide pin (1) of blocking circuit (2) is correctly seated in bore in rear window antenna amplifier.

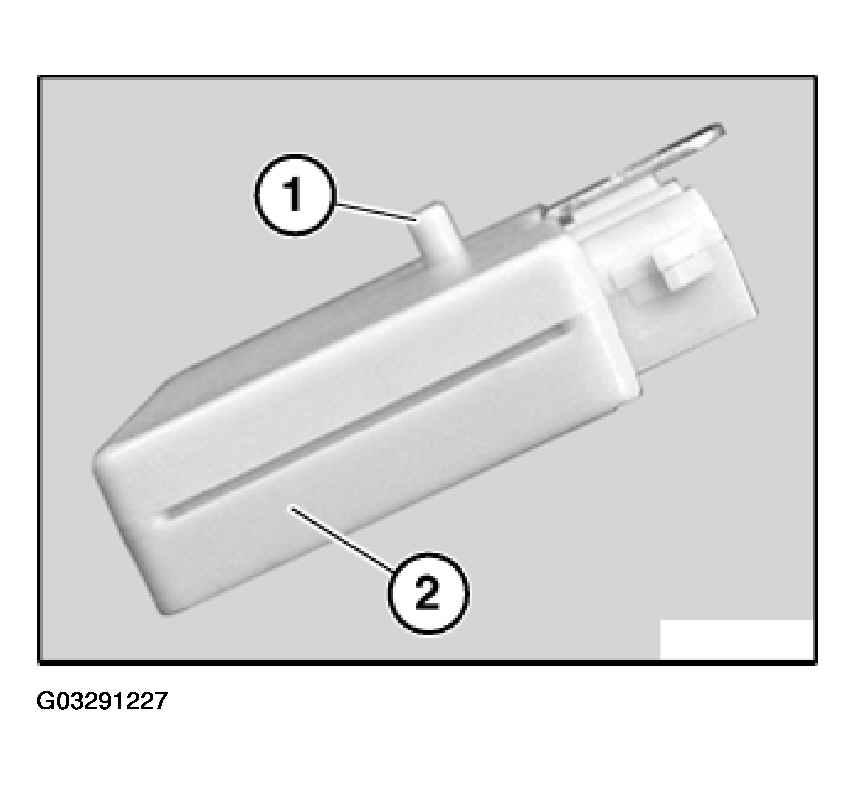

Fig 2: Identifying Guide Pin Of Blocking Circuit

Courtesy of BMW OF NORTH AMERICA, INC.
