65 20 200 Removing and installing (replacing) antenna tuner
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Disconnect battery negative lead, refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD
- Remove rear left head restraint. Refer to 52 24 390 REMOVING AND INSTALLING/REPLACING REAR LEFT OR RIGHT HEAD RESTRAINT (NORMAL) .
- Remove panel for roof pillar at rear left. Refer to 51 43 255 REMOVING AND INSTALLING / REPLACING TRIM FOR REAR LEFT OR RIGHT ROOF PILLAR (FRONT) .
NOTE:
For purposes of clarity, the following illustrations show the panel for the rear parcel shelf removed.

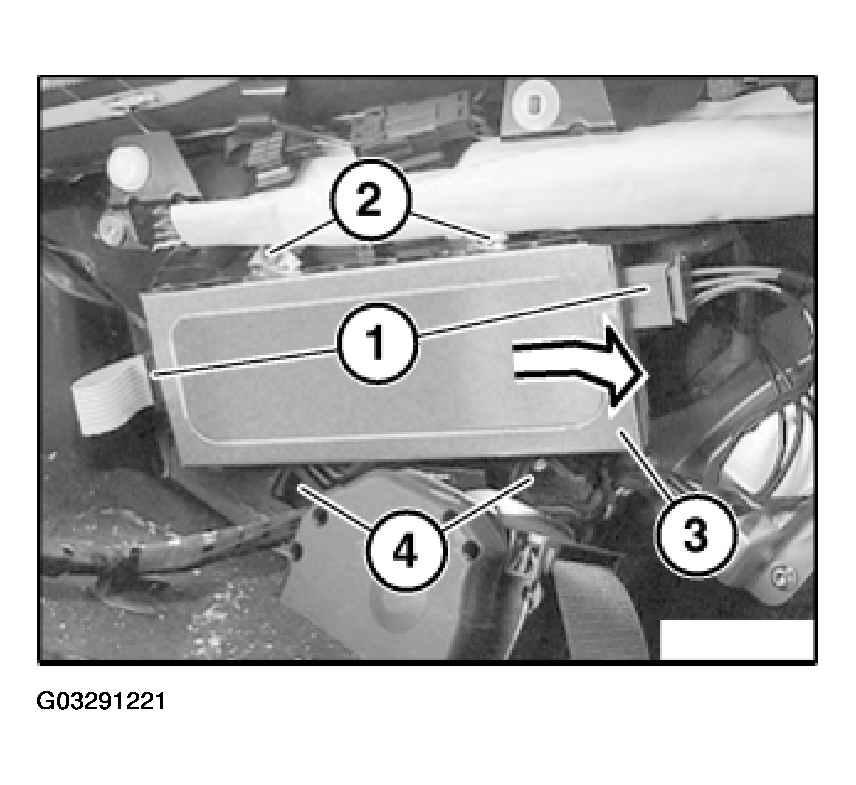

Unlock plug connections (1) and disconnect.
Loosen screws (2).
Feed antenna tuner (3) in direction of arrow out of guides (4) and remove.
Installation:

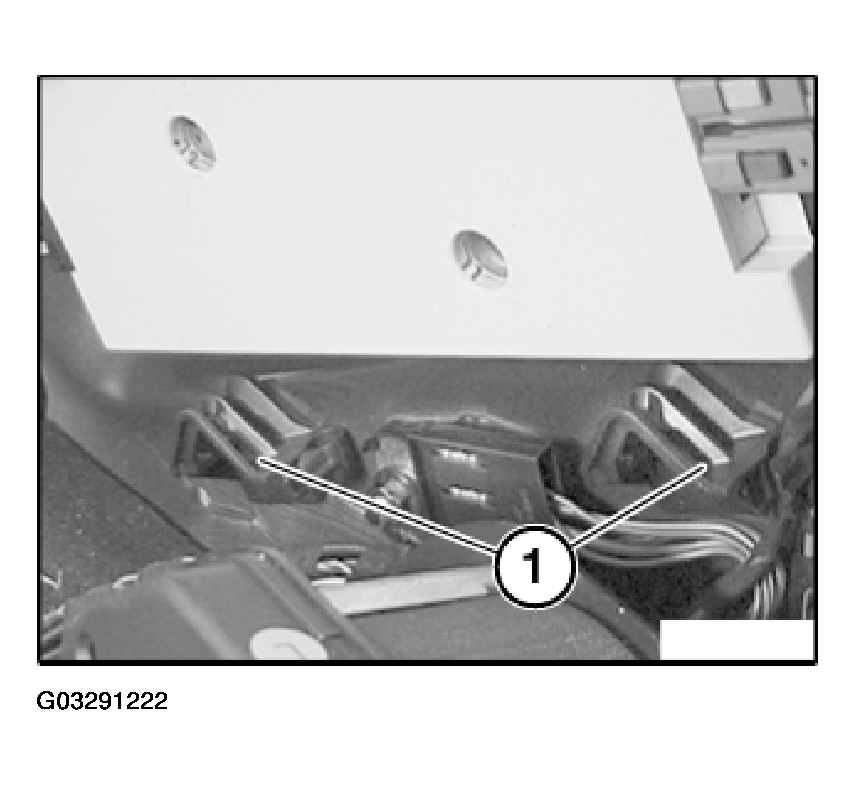

Make sure antenna tuner is correctly seated in inner guide (1) in each case.
Replacement:
Carry out coding/programming.
Observe following IDC specifications:
- Programming
- Coding
- Car & Key Memory
- CD "CIP"
