65 77 690 Removing and installing/replacing central gateway module (up to build date 03/2004)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove safety information module. Refer to 65 77 700 REMOVING AND INSTALLING (REPLACING) SAFETY INFORMATION MODULE .

NOTE: Follow instructions for handling optical fibres. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS .

After installation:

Carry out coding/programming.

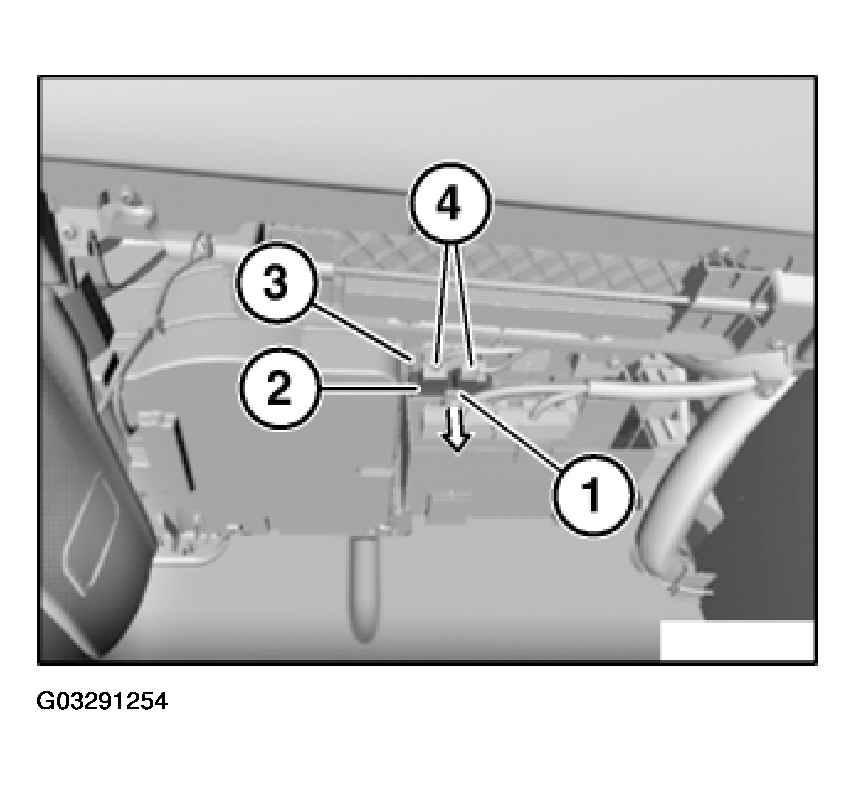

Fig 1: View Of Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catch (1) in direction of arrow.

Fig 2: Removing Central Gateway Module

Courtesy of BMW OF NORTH AMERICA, INC.

Pull central gateway module (2) out of control unit carrier (3) slightly.

Disconnect plug connections (4).

Remove central gateway module (2).
