65 77 700 Removing and installing (replacing) safety information module

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Note AIRBAG safety instructions! Refer to AIR BAG SAFETY PRECAUTIONS .
Incorrect handling can activate AIRBAG and cause injury.

NOTE: Follow instructions for handling optical fibers. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS .

Necessary preliminary tasks:

Disconnect and cover battery negative lead. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Remove trim for instrument panel, bottom right. Refer to 51 45 181 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM AT BOTTOM RIGHT .

Unlock catch (1) in direction of arrow.

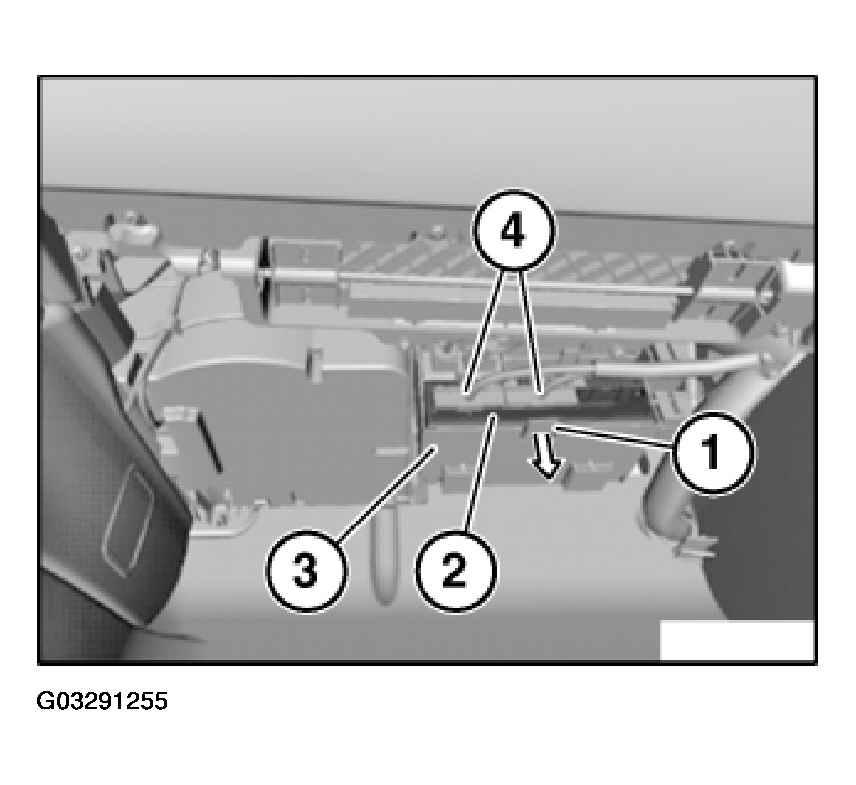

Fig 1: Pulling Safety Information Module Out Of Control Unit Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Pull safety information module (2) out of control unit carrier (3) slightly.

Unlock plug connections (4) and disconnect.

Remove safety information module (2).

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

Fig 2: View Of Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
