65 77 635 Replacing sensor mat for left or right rear seat occupancy detector (comfort seat)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove seat cover for rear seat, refer to 52 25 450 REPLACING PADDING FOR REAR SEAT

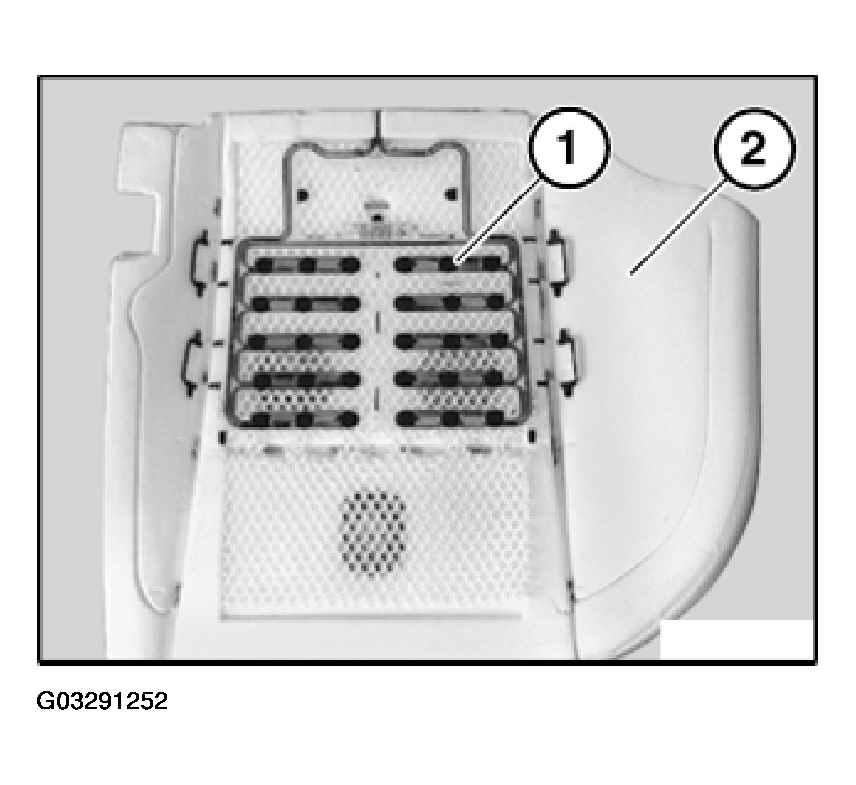

Remove sensor mat (1) from padding (2).
IMPORTANT:
To avoid malfunctions, make sure sensor mat (1) is cleanly laid:
- Lay plug-in connection in designated recess.
- Lay sensor mat (1) straight and without kinks (large bending radii).
- If necessary, secure sensor mat (1) with adhesive tape provided.
- Feed sensor mat (1) in areas of transition (e.g. seat cushion to side section) cleanly into penetrations of padding (1).
