52 25 450 Replacing padding for rear seat

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary tasks:

Remove padding for rear seat. Refer to 52 25 002 REMOVING AND INSTALLING PADDING FOR LEFT OR RIGHT REAR SEAT .

Detach retainers in areas (1).

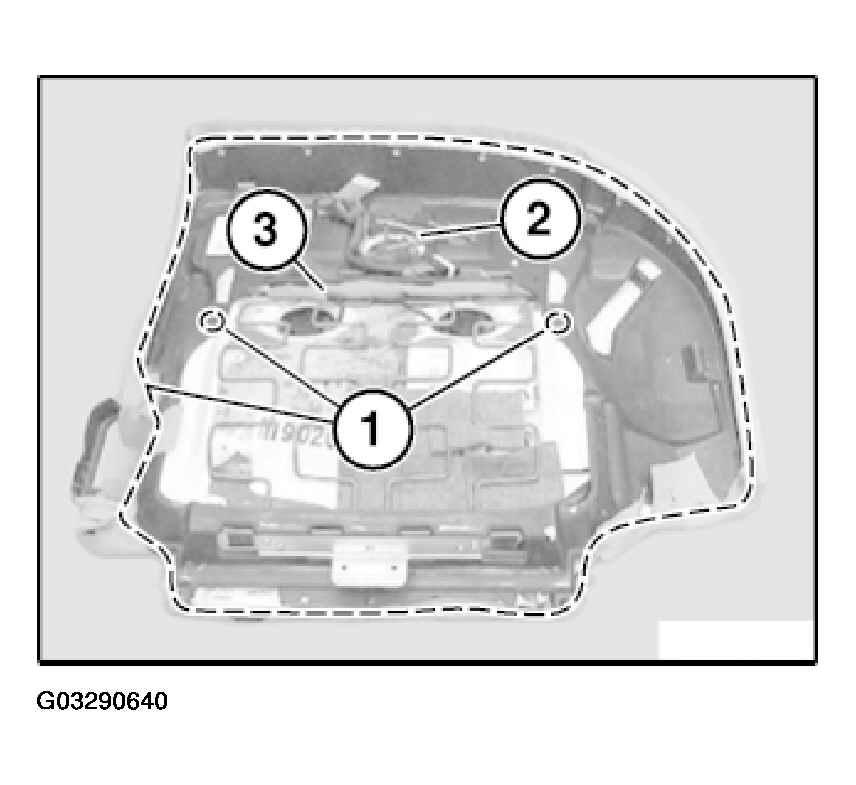

Fig 1: Removing Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bend new retainers closed with pliers 52 0 050.

Unclip wiring harness (2).

Seat with air conditioning:

Detach retainers on panel (3) and disconnect plug connections for fan.

Remove seat cover with padding.

Release retainers in area (1).

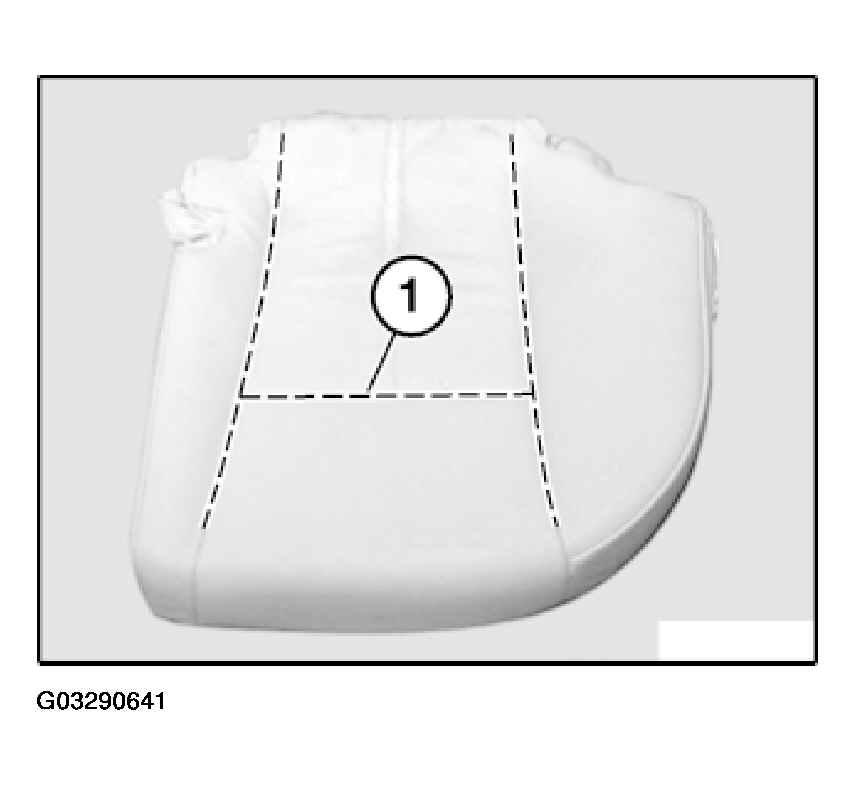

Fig 2: Removing Cushion Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cushion cover.

Remove seat occupancy mat (1).

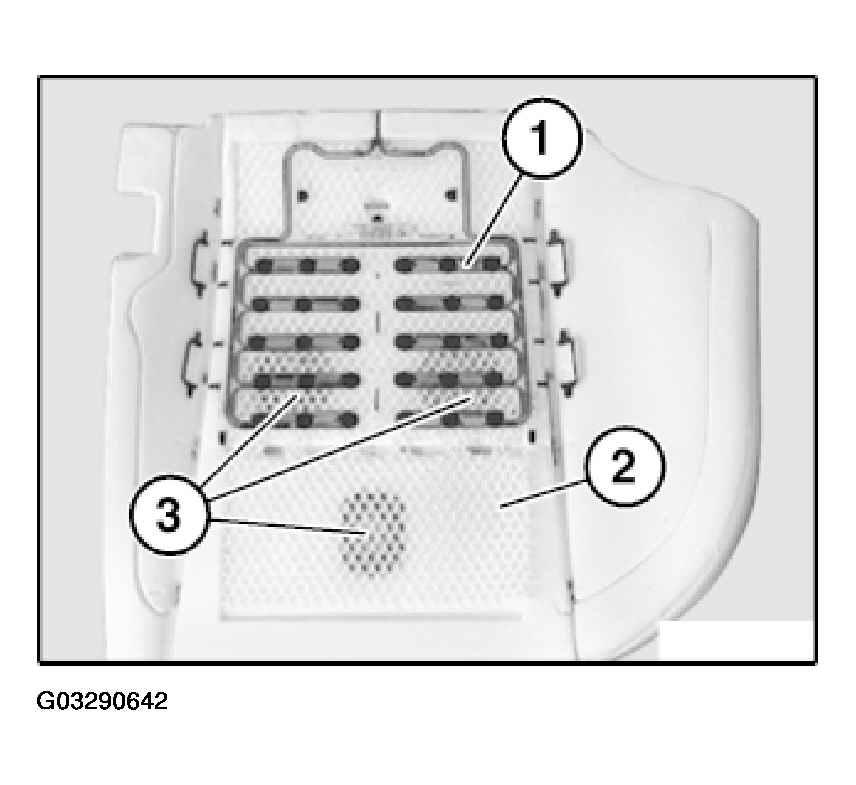

Fig 3: Removing Seat Occupancy Mat And Dividing Net

Courtesy of BMW OF NORTH AMERICA, INC.

Remove dividing net (2).

Seat with air conditioning:

Remove fan (3).

Installation:

Make sure cables are correctly laid.
