65 77 565 Removing and installing/replacing control electronics for rear seat occupancy detector (left or right)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (NORMAL) .

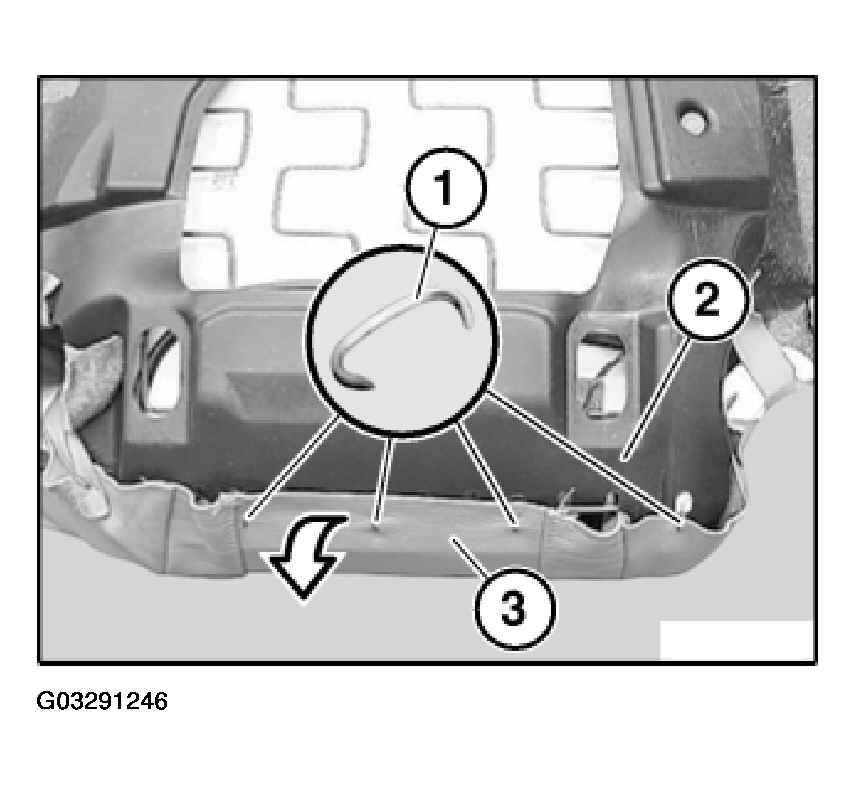

Detach retainers (1) on rear seat (2).

Fig 1: Detaching Retainers On Rear Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Turn up seat cover (3) in direction of arrow slightly.

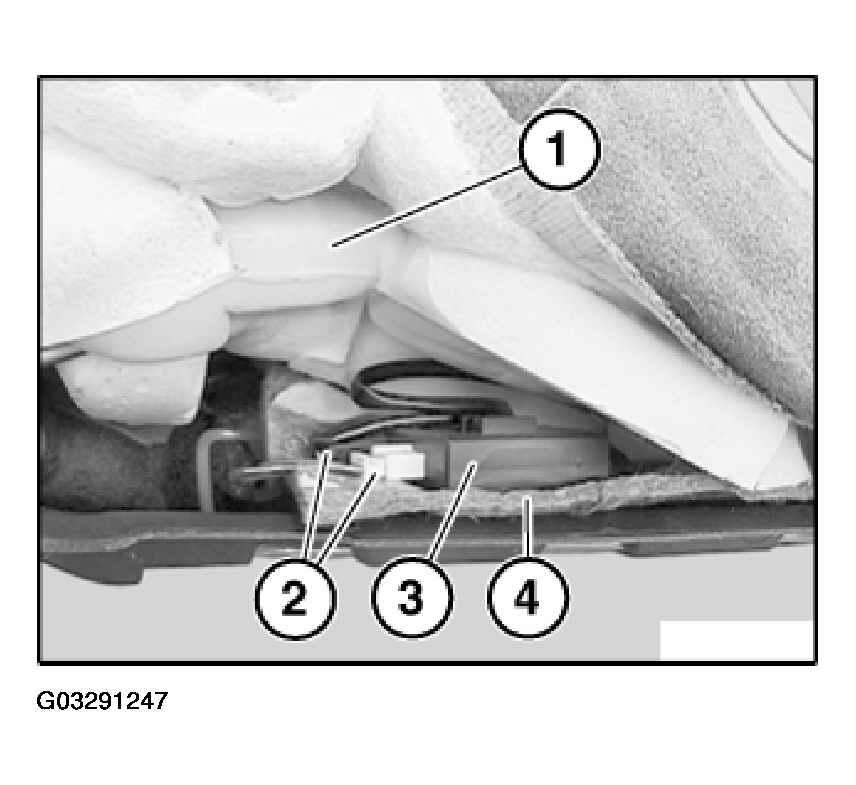

Raise seat upholstery section (1) slightly.

Fig 2: Removing Control Electronics For Rear Seat Occupancy Detector

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (2).

Detach control electronics for rear seat occupancy detector (3) from felt (4) and remove.
