64 22 162 Removing and installing/replacing center fresh air grille (automatic A/C High)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove control display trim. Refer to 51 45 ... REMOVING AND INSTALLING/REPLACING CONTROL DISPLAY TRIM .

CAUTION: Proceed with care so as to avoid damaging the fresh air grill.

Release screws (1).

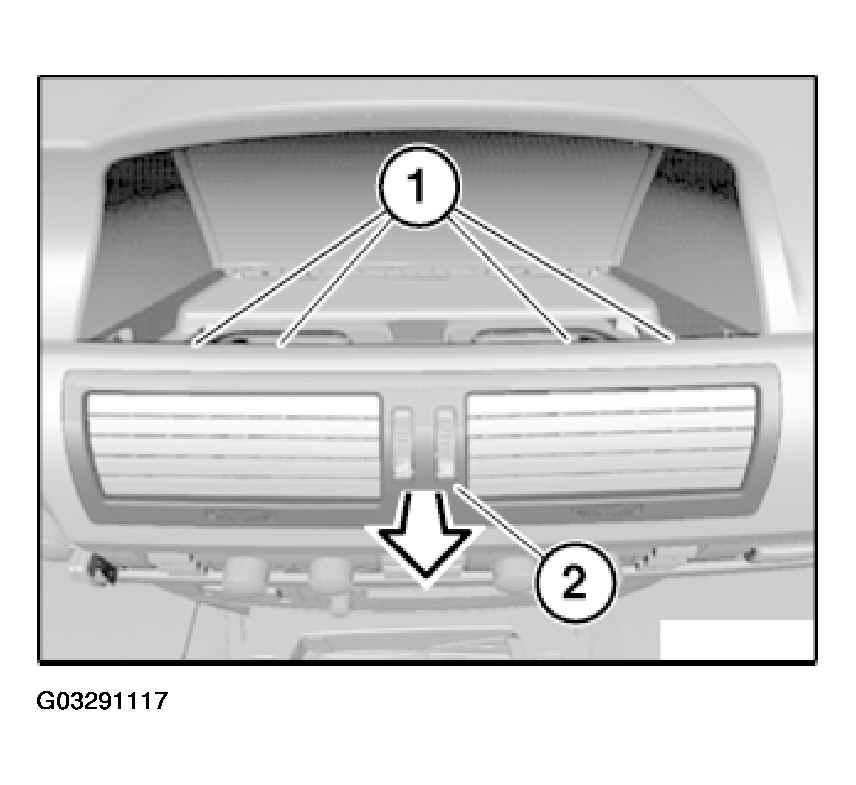

Fig 1: Removing Center Fresh Air Grill

Courtesy of BMW OF NORTH AMERICA, INC.

Press out center fresh air grill (2) from inside in direction of arrow.

Unlock associated plug connections and disconnect. Remove center fresh air grill (2).

Installation:

Make sure electric leads are correctly routed.
