51 45... Removing and installing/replacing control display trim

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 341

Unclip fresh air grill (1) with special tool 00 9 341.

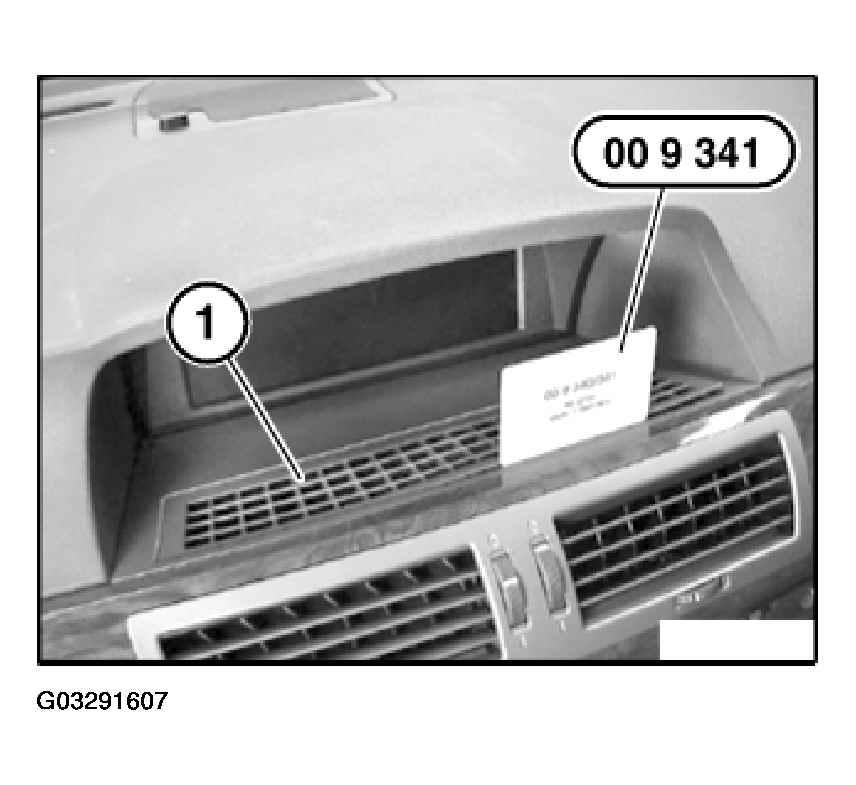

Fig 1: Unclipping Fresh Air Grill

G03291607

Courtesy of BMW OF NORTH AMERICA, INC.

Grip trim (1) through openings (2) from inside and unclip along wood trim towards top.

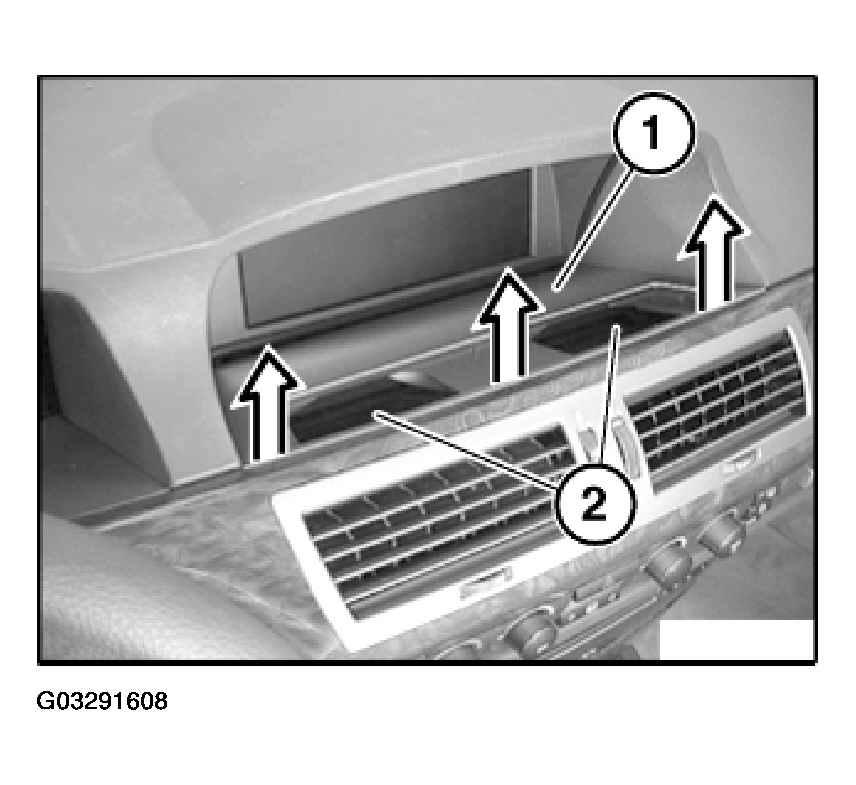

Fig 2: Unclipping Trim

G03291608

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1 and 2) must not be damaged.

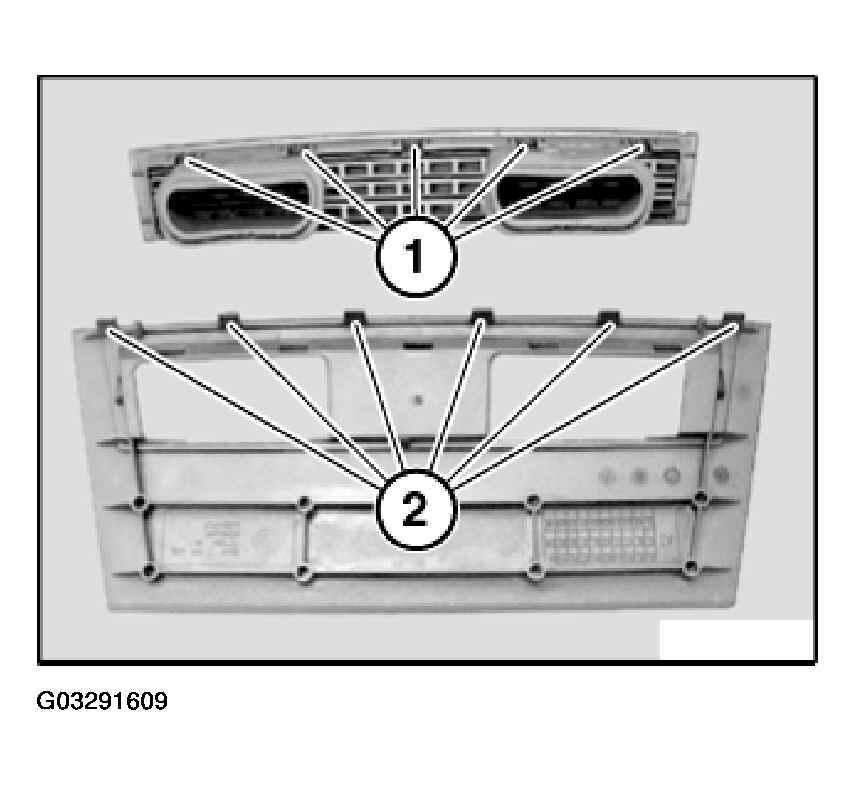

Fig 3: Identifying Catches

G03291609

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert trim (2) in mounting of control display (1).

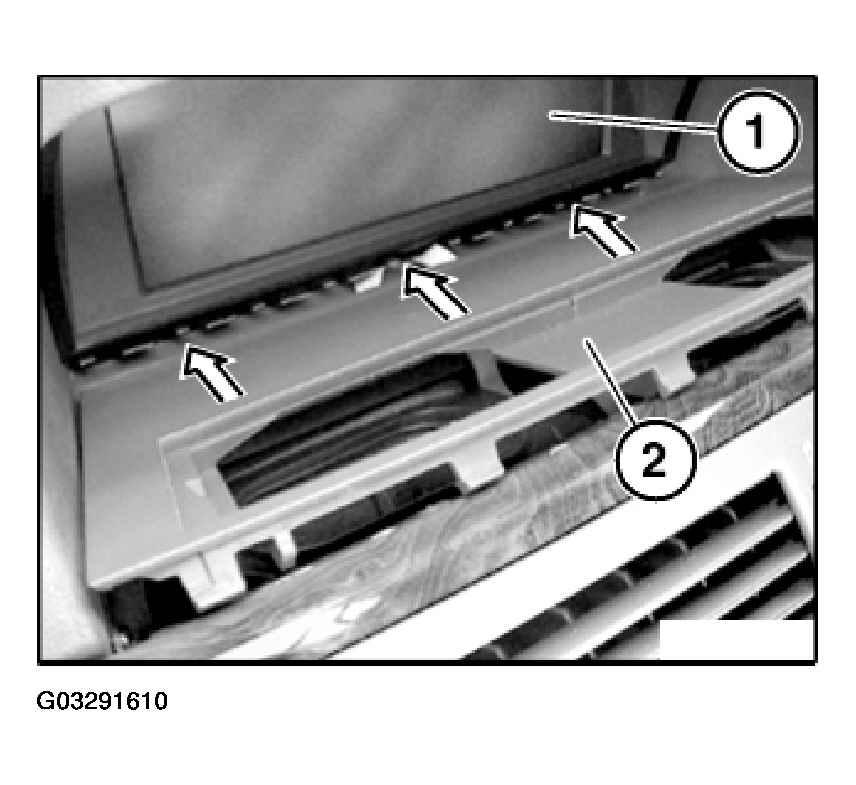

Fig 4: Inserting Trim

G03291610

Courtesy of BMW OF NORTH AMERICA, INC.

Do not damage wood trim on right. If necessary, snap locks of trim (2) into place with special tool 00 9 341.
