64 11 913 Removing and installing/replacing temperature sensor for heating unit (automatic A/C High)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for instrument panel, bottom right. Refer to 51 45 181 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM AT BOTTOM RIGHT .

Remove center console trim at front right. Refer to 51 16 195 REMOVING AND INSTALLING CENTRE ARMREST (FRONT) .

Remove sound insulation for A/C unit at rear right.

Disconnect plug connection (1).

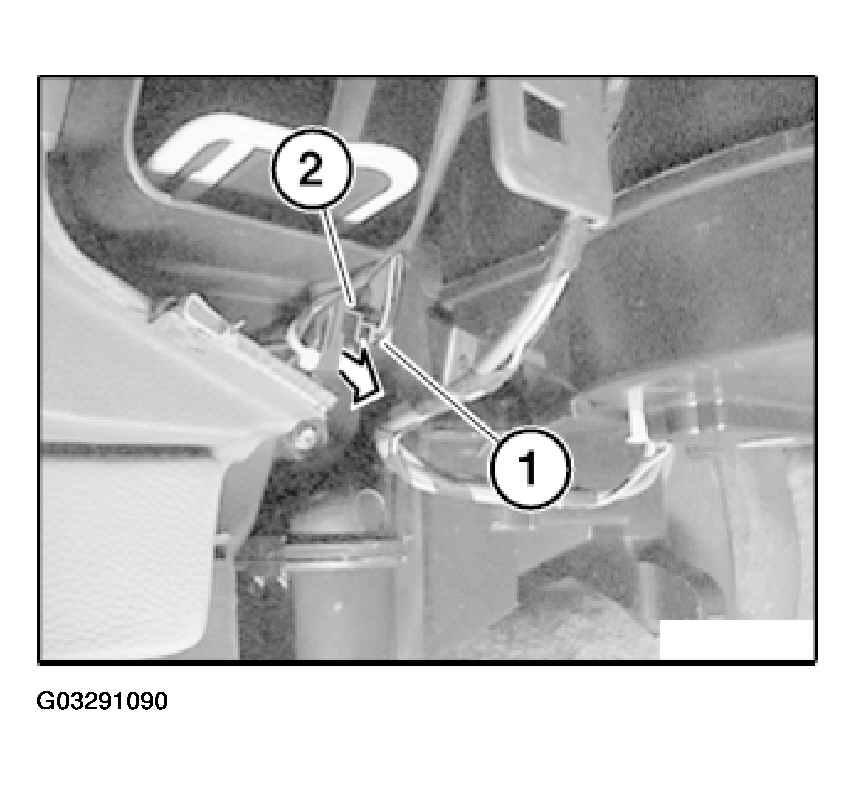

Fig 1: Removing Temperature Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out temperature sensor (2) in direction of arrow.

Installation:

When installing temperature sensor, pay attention to guide (1) in mount (2).

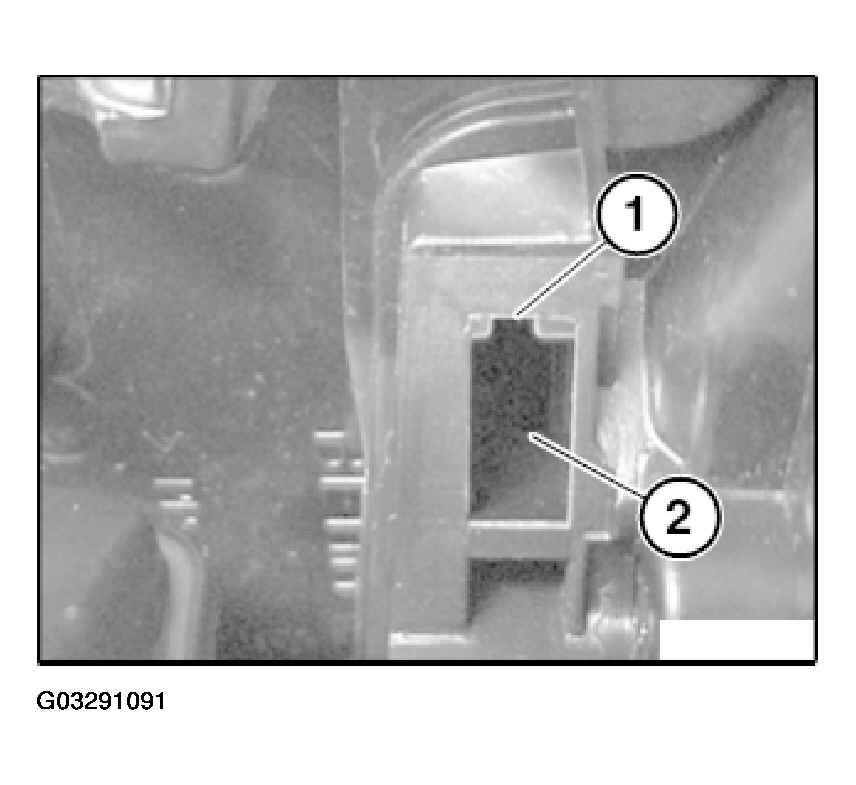

Fig 2: Identifying Guide In Mount

Courtesy of BMW OF NORTH AMERICA, INC.
