64 11 911 Removing and installing/replacing temperature sensor for heating unit (automatic A/C High)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Remove and install panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
Remove center console trim at front left. Refer to 51 16 195 REMOVING AND INSTALLING CENTRE ARMREST (FRONT) .
Remove sound insulation for A/C unit at rear left.

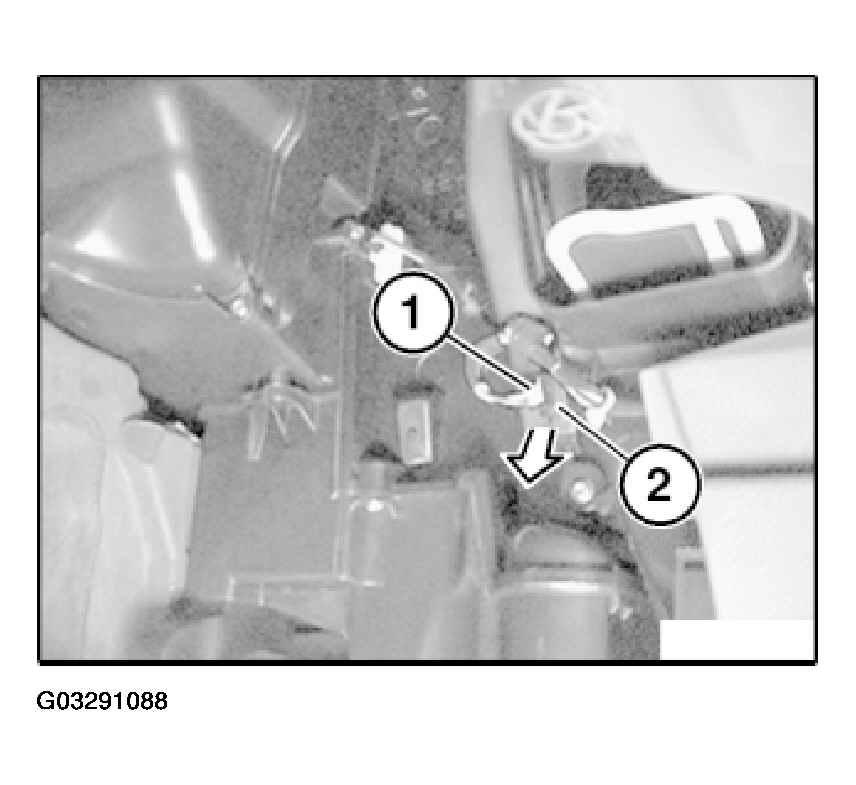

Disconnect plug connection (1).
Pull out temperature sensor (2) in direction of arrow.
Installation:

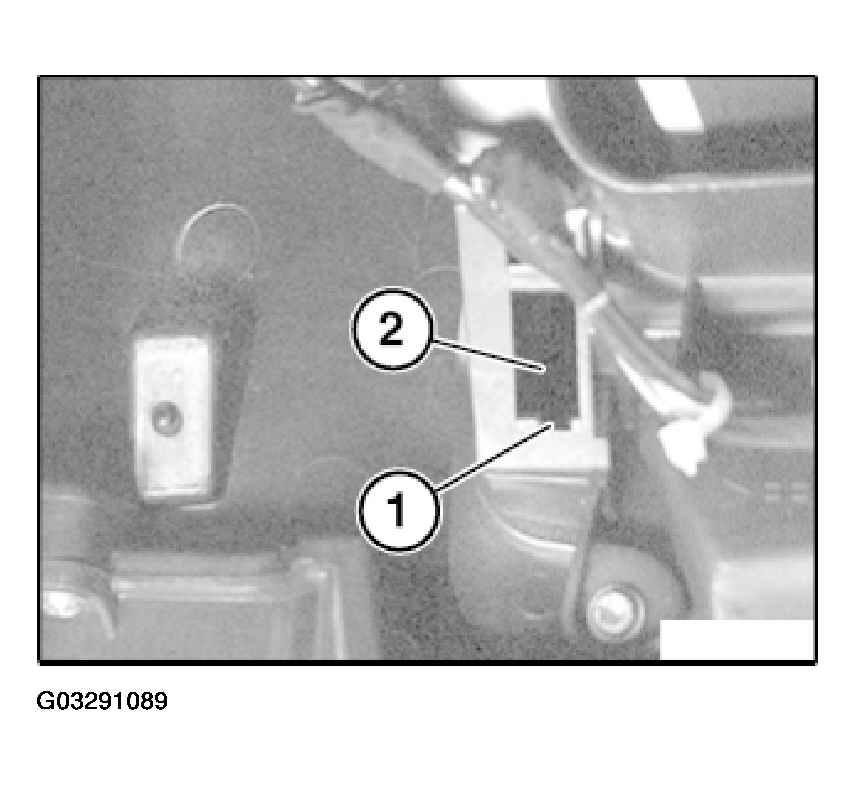

When installing temperature sensor, pay attention to guide (1) in mount (2).
