64 11 889 Replacing sensor fan for interior temperature.

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove control panel for heater - A/C system. Refer to 64 11 377 REMOVING AND INSTALLING (REPLACING) CONTROL PANEL FOR HEATER - A/C SYSTEM .

Release screws (1).

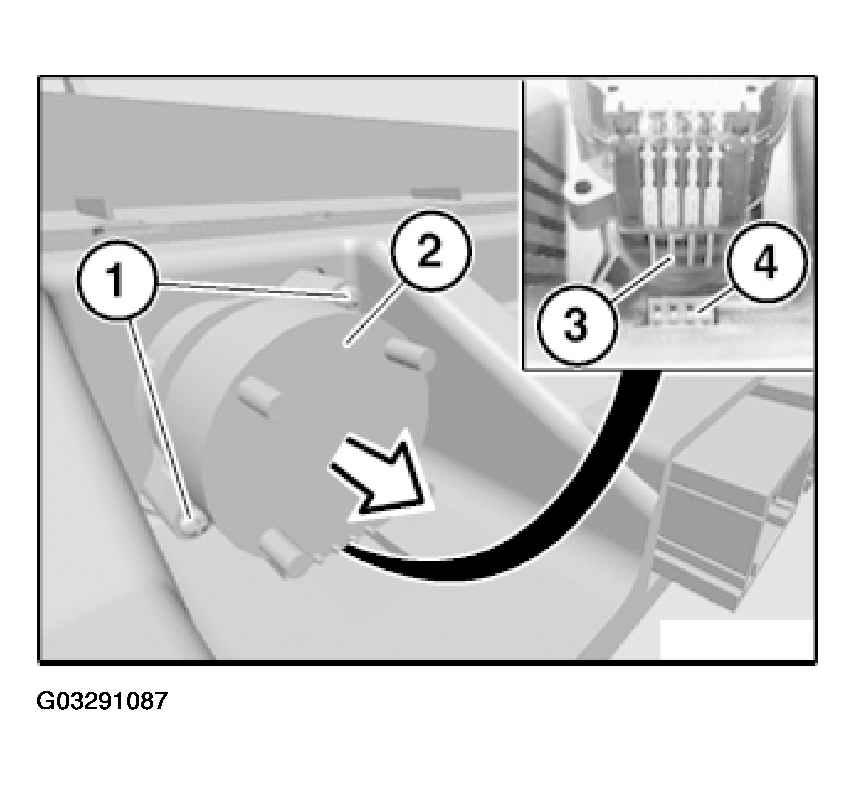

Fig 1: Removing Sensor Fan

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out sensor blower for interior temperature (2) in direction of arrow.

Installation:

Make sure pins (3) are correctly seated in base (4).
