64 11 377 Removing and installing (replacing) control panel for heater - A/C system

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove and install right trim on instrument panel. Refer to 51 45 263 REMOVING AND INSTALLING/REPLACING INSTRUMENT PANEL TRIM ON RIGHT .
Remove and install center trim on instrument panel. Refer to 51 45 ... REMOVING AND INSTALLING/REPLACING CENTER INSTRUMENT PANEL TRIM .

Lever out clips (1).

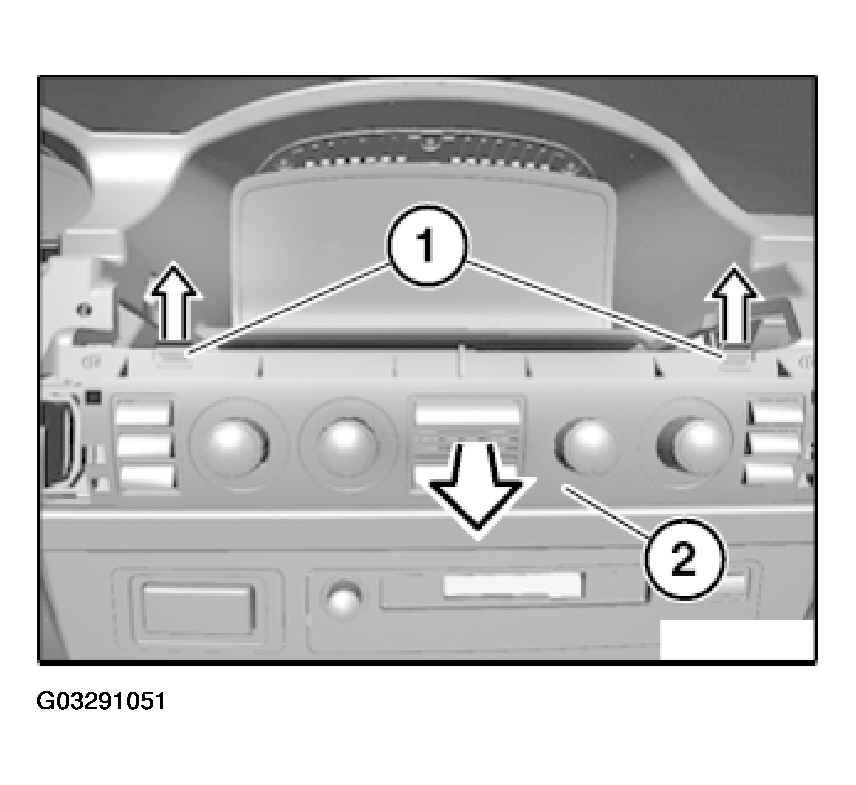

Fig 1: Levering Out Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out control panel for heater - A/C system (2) in direction of arrow.

Disconnect plug connections behind and remove control panel for heater - A/C system (2).

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

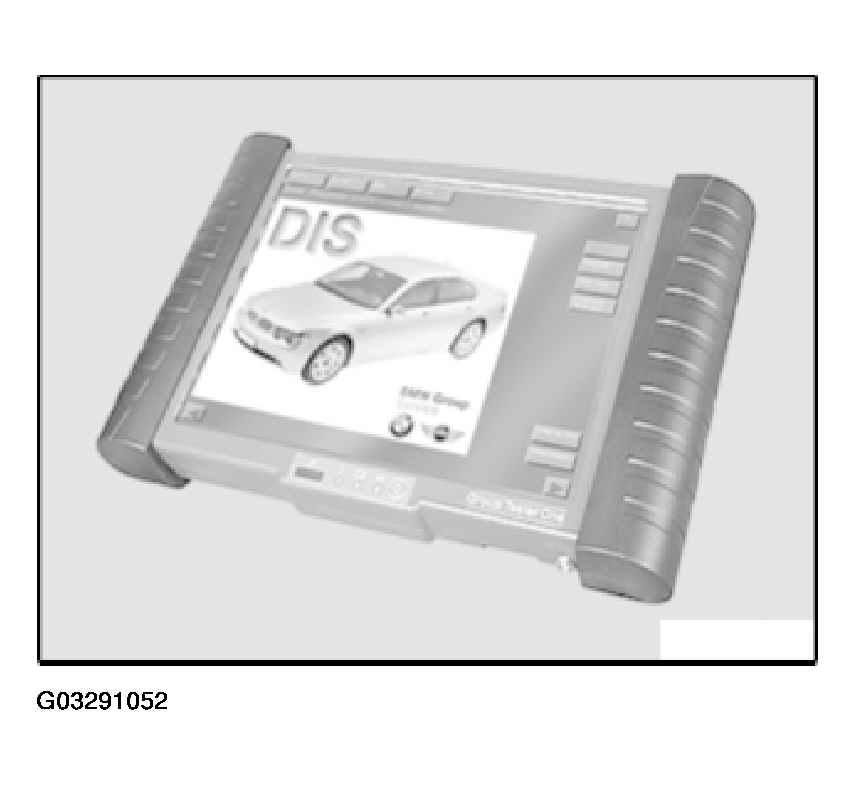

Fig 2: View Of Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
