64 11 853 Replacing servodrive for right rear compartment flap (automatic A/C High)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove function carrier on trim for instrument panel, refer to 51 16 170 REMOVING AND INSTALLING FUNCTION CARRIER ON PANEL FOR INSTRUMENT PANEL

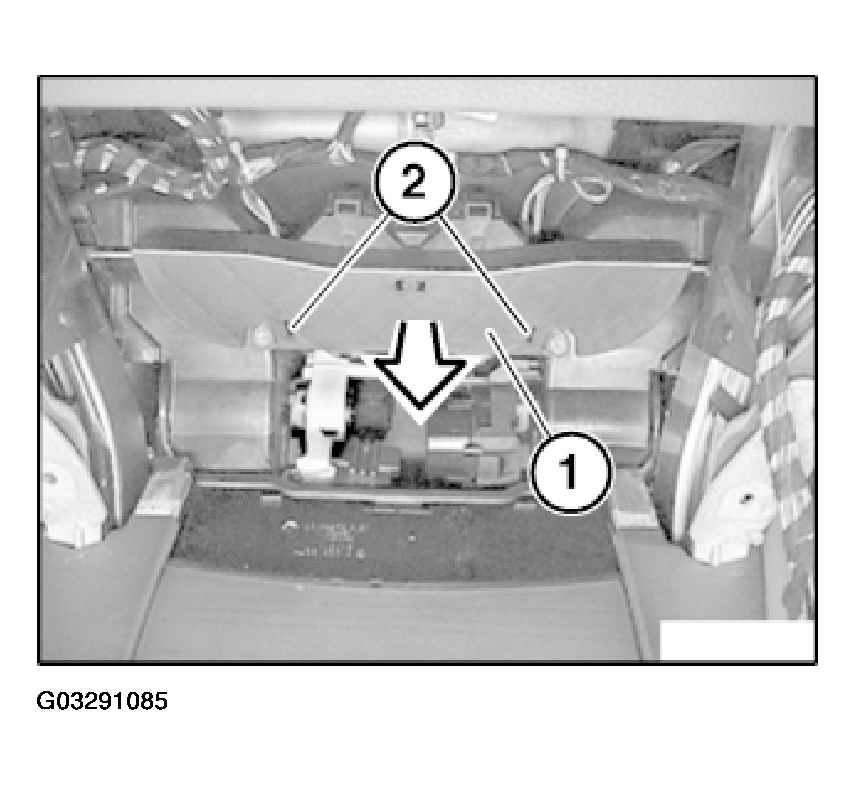

Unclip cover (1) at both retaining hooks (2) and remove in direction of arrow.

Fig 1: Removing Cover At Both Retaining Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

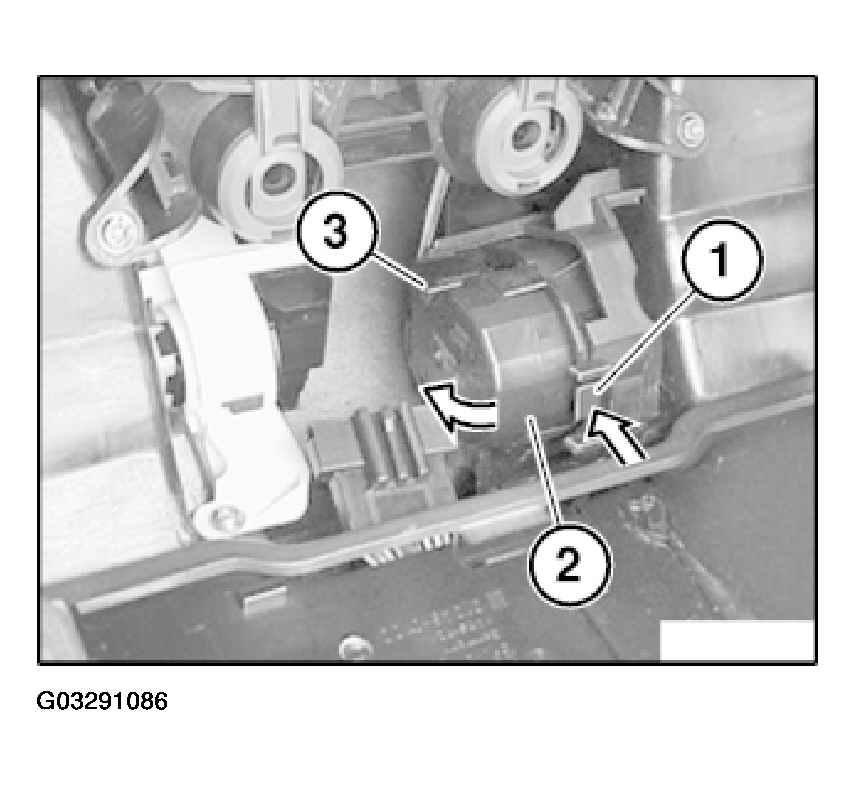

Press lock (1) and unclip servodrive for right rear compartment flap (2) in direction of arrow.

Disconnect plug connection (3) and remove servodrive for right rear compartment flap (2).

Fig 2: Removing Servodrive For Right Rear Compartment Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
