51 16 170 Removing and installing function carrier on panel for instrument panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove audio system controller, refer to 65 12 200 REMOVING AND INSTALLING (REPLACING) AUDIO SYSTEM CONTROLLER

Release screws (1).

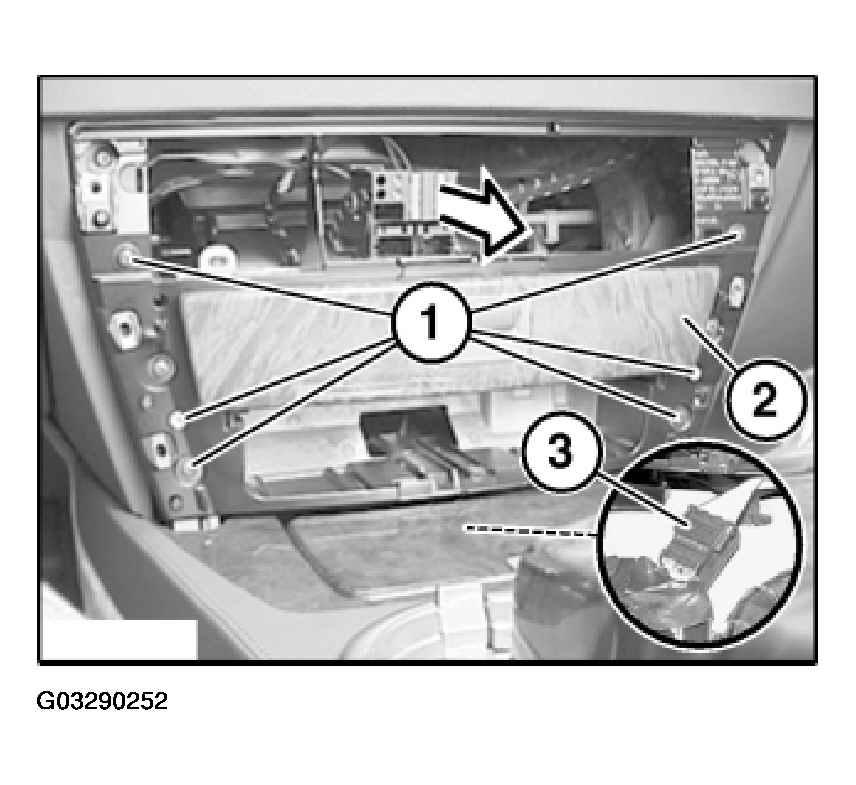

Fig 1: Removing Function Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out function carrier (2) slightly and disconnect plug connection (3).

Remove function carrier (2).
