64 11 842 Replacing servodrive for right footwell flap (automatic A/C High)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove function carrier on trim for instrument panel, refer to 51 16 170 REMOVING AND INSTALLING FUNCTION CARRIER ON PANEL FOR INSTRUMENT PANEL

Unclip cover (1) at both retaining hooks (2) and remove in direction of arrow.

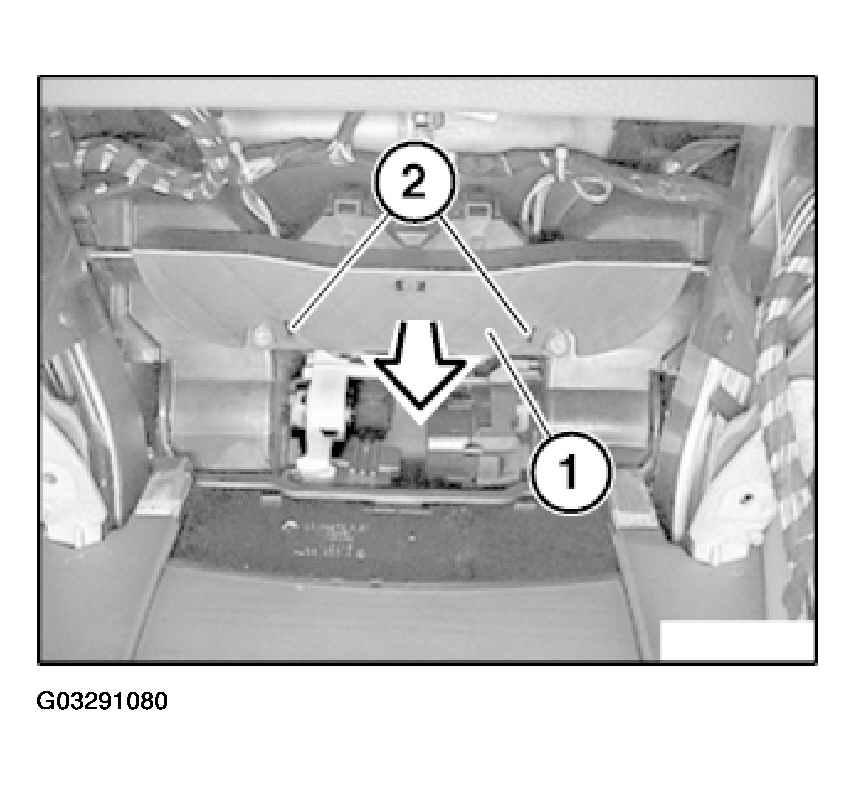

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip both linkages (2) in direction of arrow.

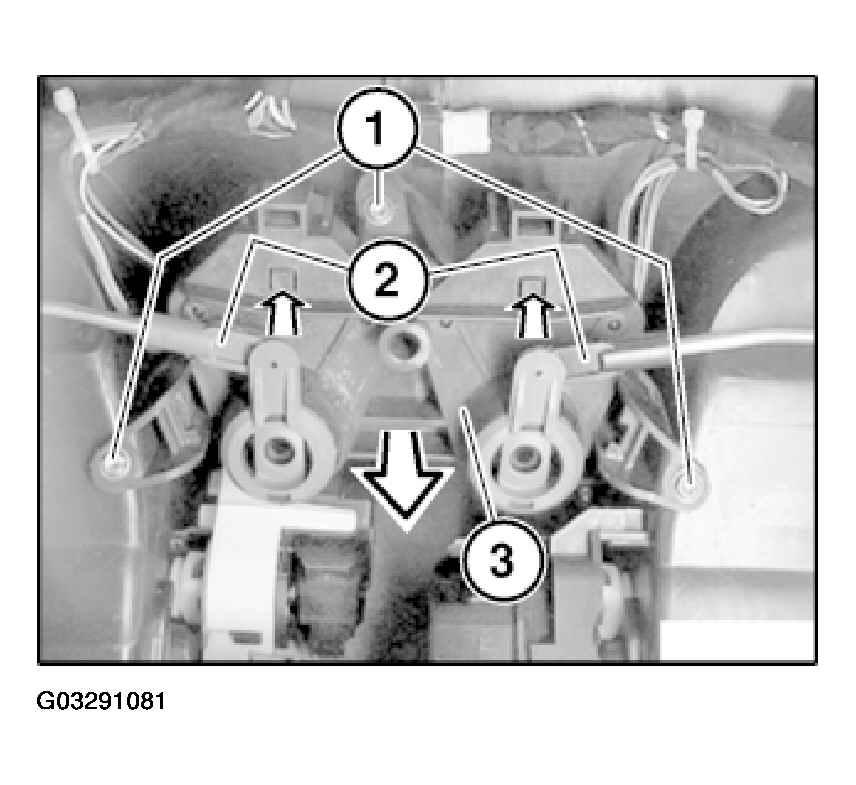

Fig 2: Locating Linkages

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Pull back holder (3) in direction of arrow and invert.

Disconnect plug connection (1).

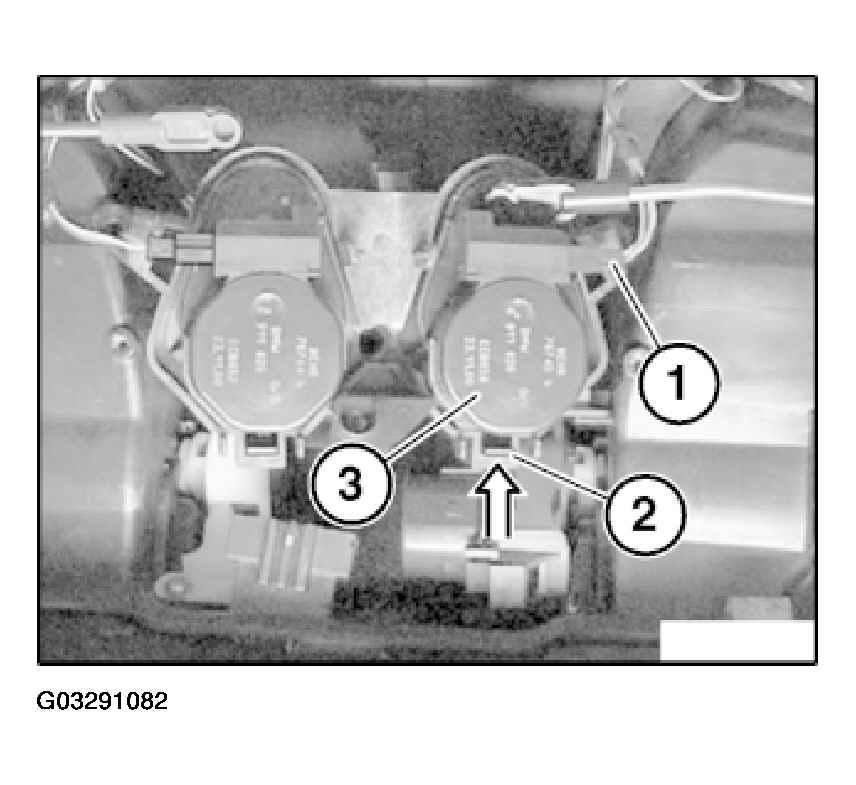

Fig 3: Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (2) and unclip servodrive (3) in direction of arrow.

NOTE: If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
