64 11 821 Replacing servodrive for fresh air flaps (automatic A/C High)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove holder with servodrive for recirculated air flaps, refer to 64 11 826 REPLACING SERVODRIVE FOR RECIRCULATED AIR FLAPS (AUTOMATIC A/C HIGH)

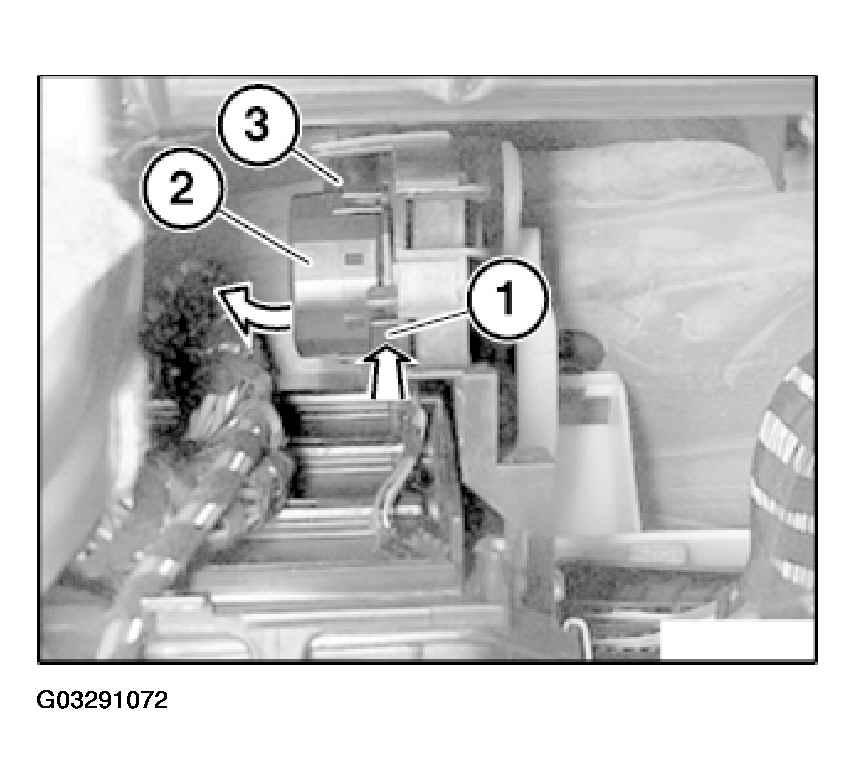

Press lock (1) and unclip servodrive (2) in direction of arrow.

Fig 1: Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3) and remove servodrive (2).

Installation:

If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
