64 11 826 Replacing servodrive for recirculated air flaps (automatic A/C High)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove battery negative lead, refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY
Remove glovebox, refer to 51 16 366 REMOVING AND INSTALLING RIGHT GLOVE WITH HOUSING or 51 16 367 REMOVING AND INSTALLING RIGHT GLOVEBOX (WITH ACTIVE KNEE PROTECTOR) WITH HOUSING

Release screw (1).

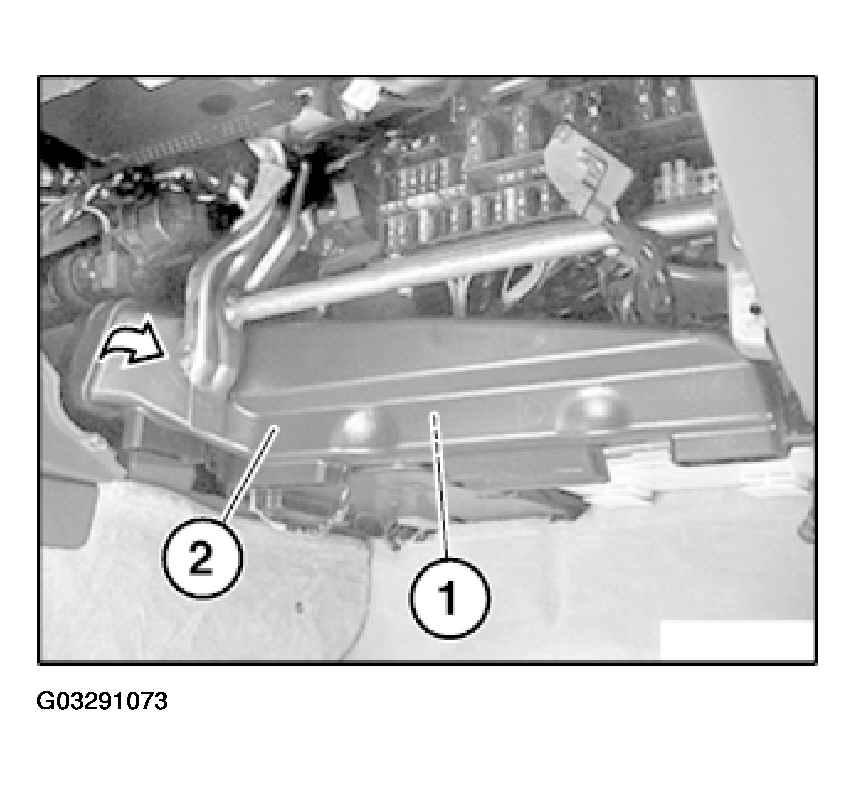

Fig 1: Detaching Right Footwell Air Duct

G03291073

Courtesy of BMW OF NORTH AMERICA, INC.

Detach right footwell air duct (2) in direction of arrow and remove towards bottom.

Release screws (1).

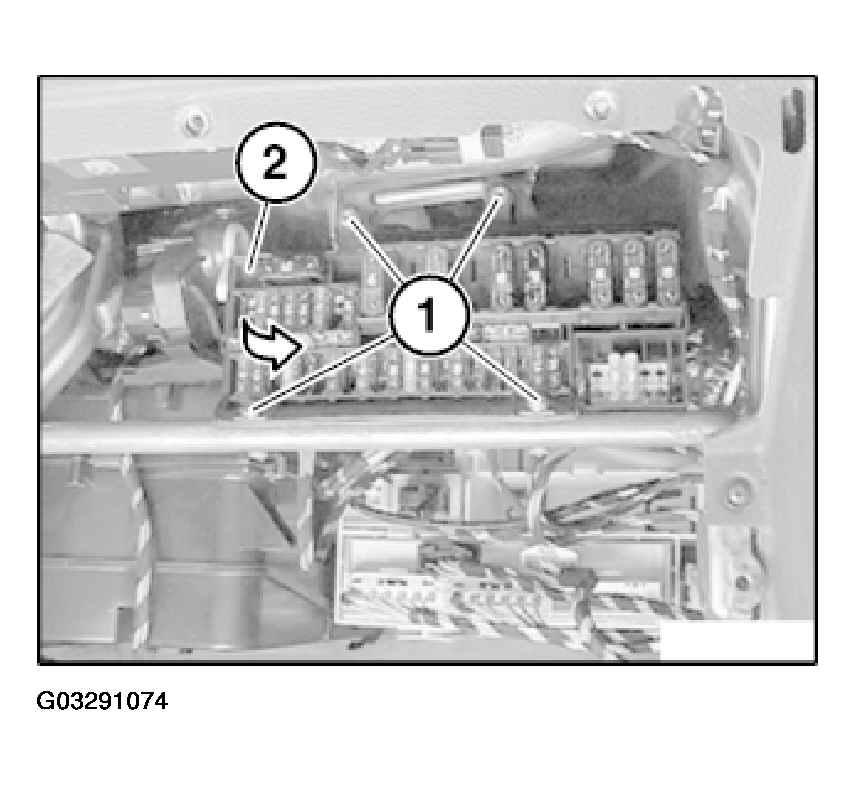

Fig 2: Folding Back Fuse Box

G03291074

Courtesy of BMW OF NORTH AMERICA, INC.

Fold back fuse box (2) in direction of arrow and place to one side.

Remove retainer (1).

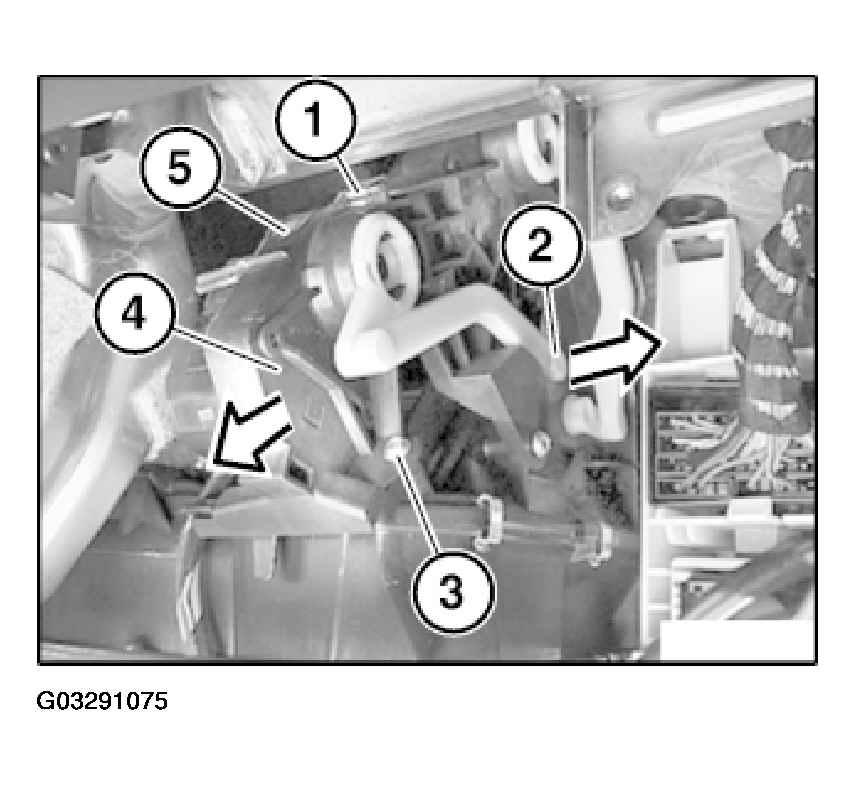

Fig 3: Pulling Back Holder

G03291075

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip linkage (2) in direction of arrow.

Release screw (3) and pull back holder (4) in direction of arrow.

Disconnect plug connection (5) and remove holder (4).

Press lock (1) and unclip servodrive (2) in direction of arrow from holder (3).

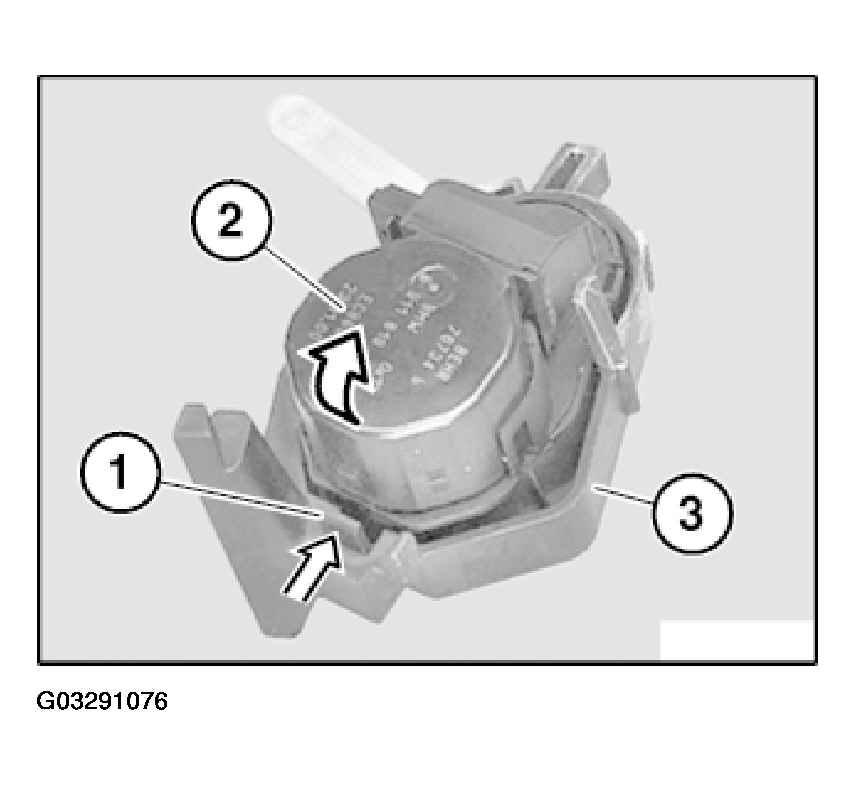

Fig 4: Removing Servodrive From Holder

G03291076

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
