64 11 818 Replacing servodrive for right cold air duct (automatic A/C High)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove servodrive for right hot air flap, refer to 64 11 813 Replacing servodrive for right hot air flap (automatic A/C High)

Release screw (1).

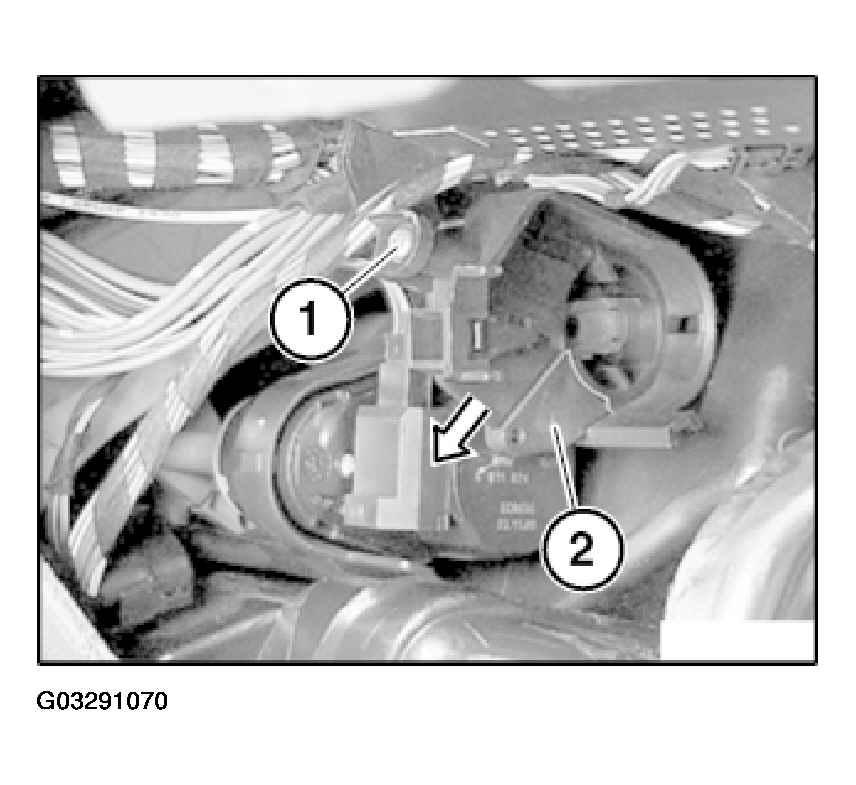

Fig 1: Removing Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Remove holder for servodrive for right hot air flap (2).

Disconnect plug connection (1).

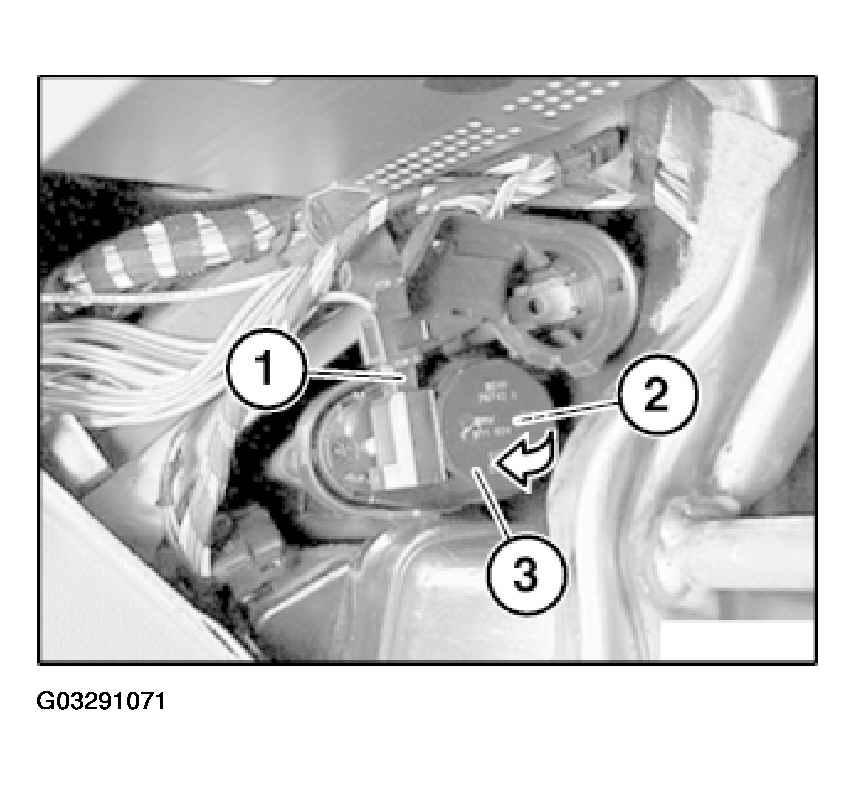

Fig 2: Removing Servodrive For Right Cold Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (2) and unclip servodrive for right cold air duct (3) in direction of arrow.

Installation:

If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
