64 11 813 Replacing servodrive for right hot air flap (automatic A/C High)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove glovebox, refer to 51 16 366 REMOVING AND INSTALLING RIGHT GLOVE WITH HOUSING or 51 16 367 REMOVING AND INSTALLING RIGHT GLOVEBOX (WITH ACTIVE KNEE PROTECTOR) WITH HOUSING

Disconnect plug connection (1).

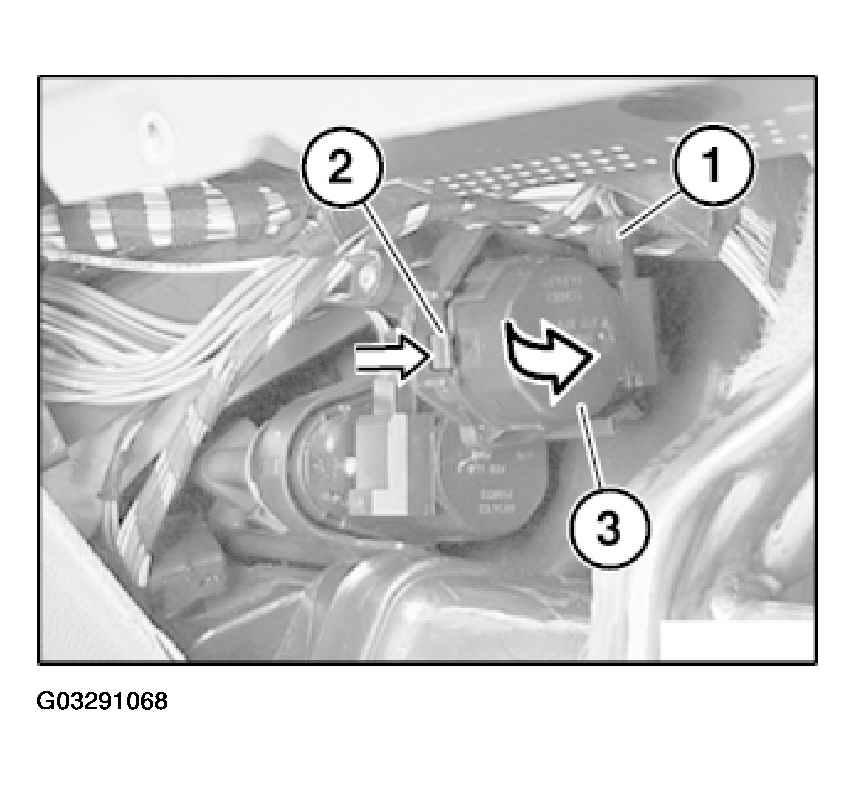

Fig 1: Removing Servodrive For Right Hot Air Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (2) and unclip servodrive for right hot air flap (3) in direction of arrow.

Installation:

If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
