64 11 816 Replacing servodrive for left cold air duct (automatic A/C High)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove function carrier on trim for instrument carrier, refer to 51 16 170 REMOVING AND INSTALLING FUNCTION CARRIER ON PANEL FOR INSTRUMENT PANEL

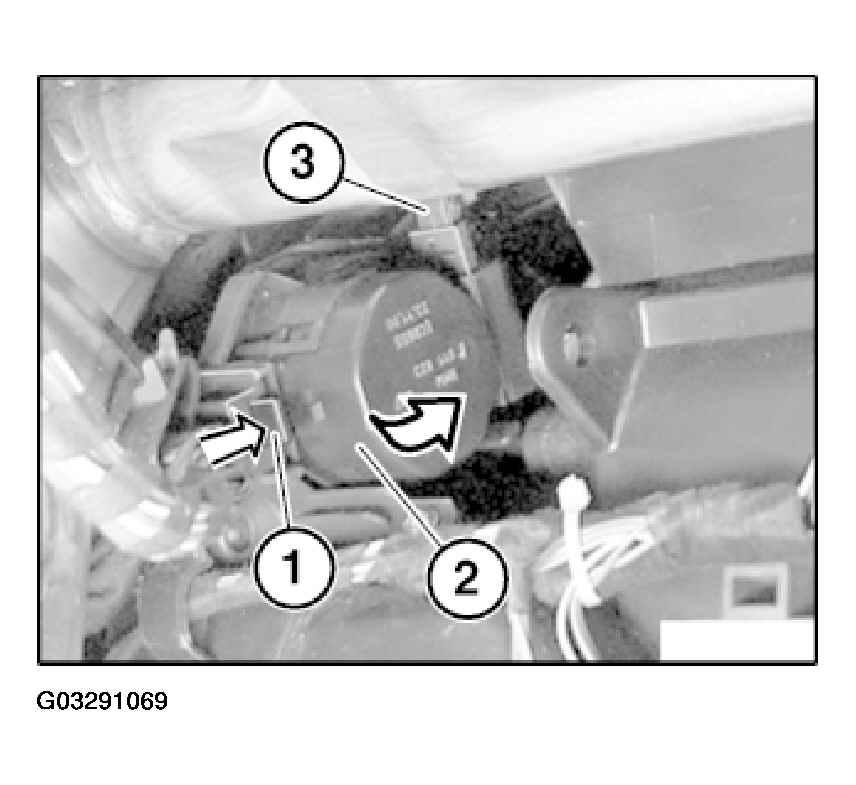

Press lock (1) and unclip servodrive (2) in direction of arrow.

Fig 1: Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (3) and remove servodrive (2).

Installation:

If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
