64 11 482 Removing and installing/replacing cooler box cooling unit

Necessary preliminary tasks:

• Remove complete cooler box. Refer to 64 11 475 REMOVING AND INSTALLING COMPLETE COOLER BOX .

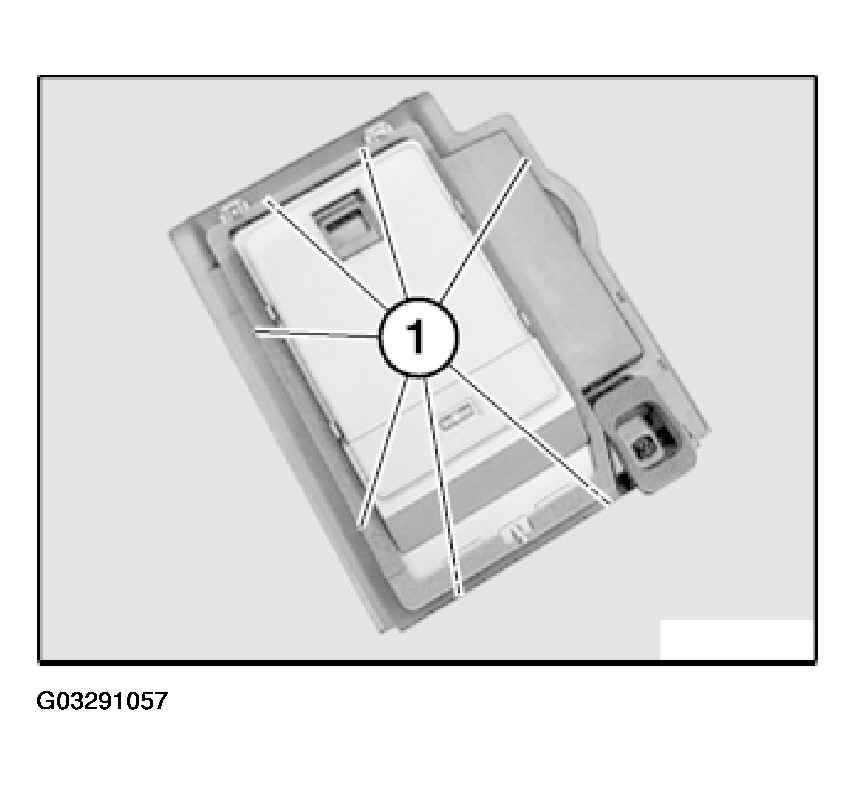

Release screws (1).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

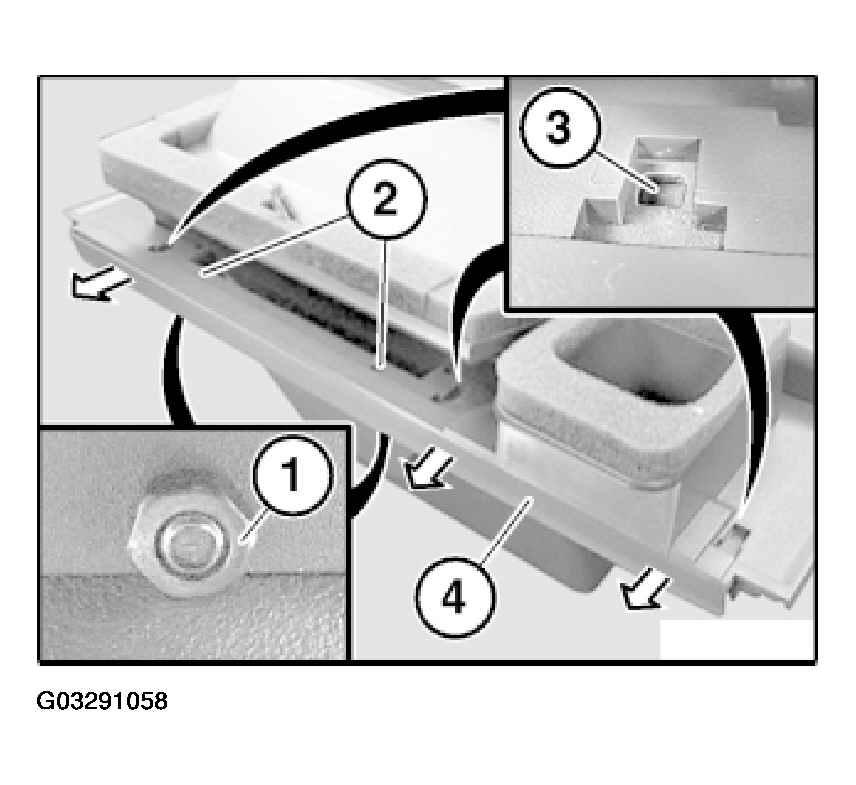

Unscrew nuts (1).

Fig 2: Locating Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screws (2).

Gently press catch (3) downwards and pull out strip (4) in direction of arrow.

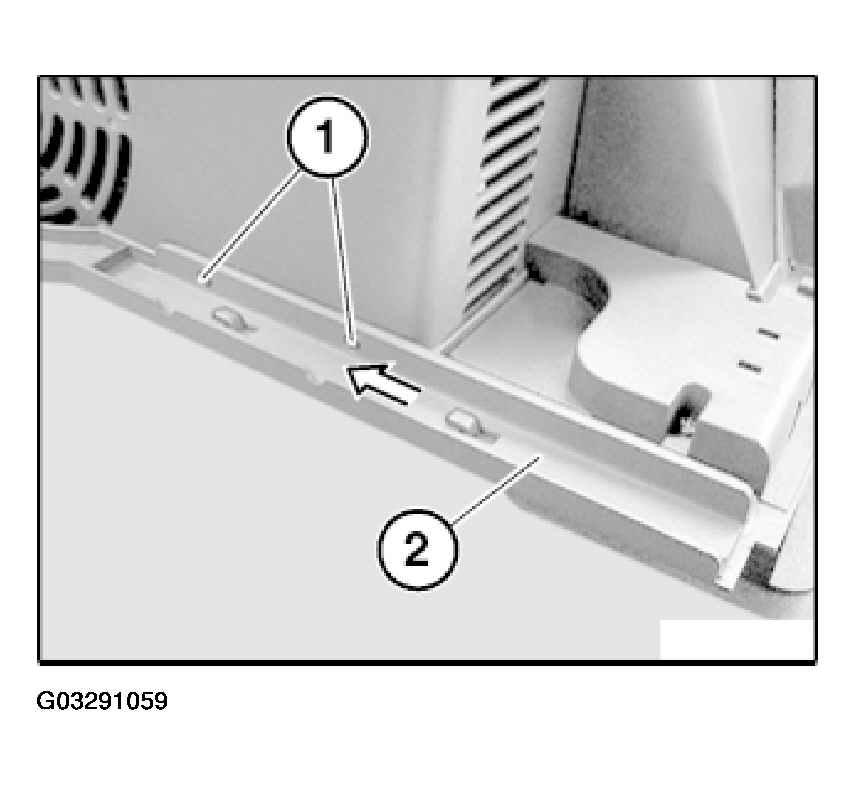

Release screws (1).

Fig 3: Removing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Move strip (2) in direction of arrow and remove.

Installation:

Note different screw lengths:

• 1 = Long screw
• 2 = Short screw

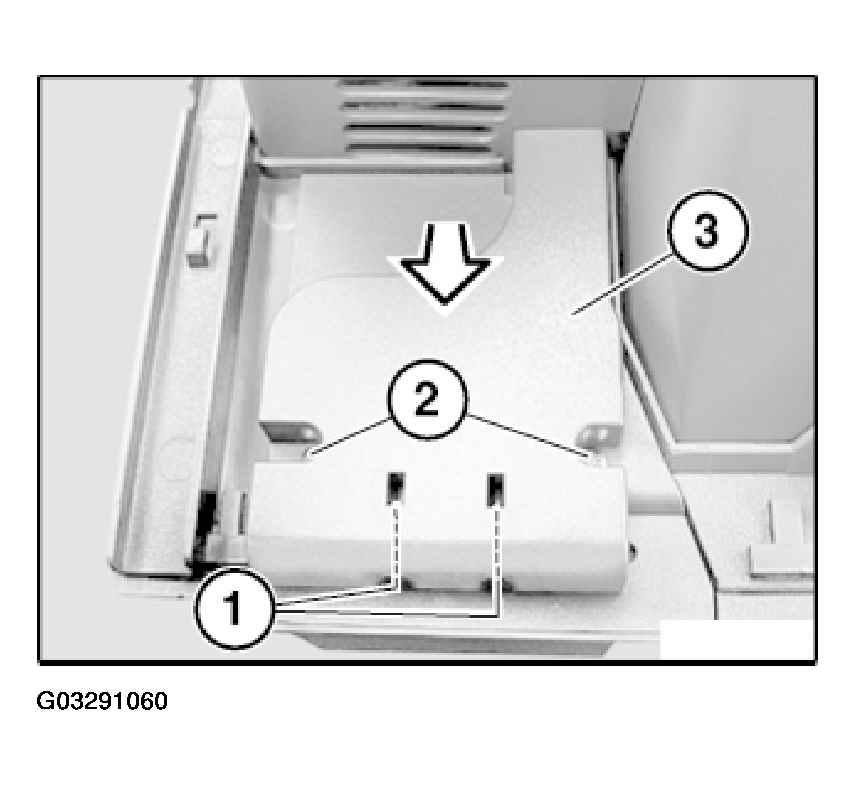

Remove screws (1) and (2).

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off cover (3) in direction of arrow.

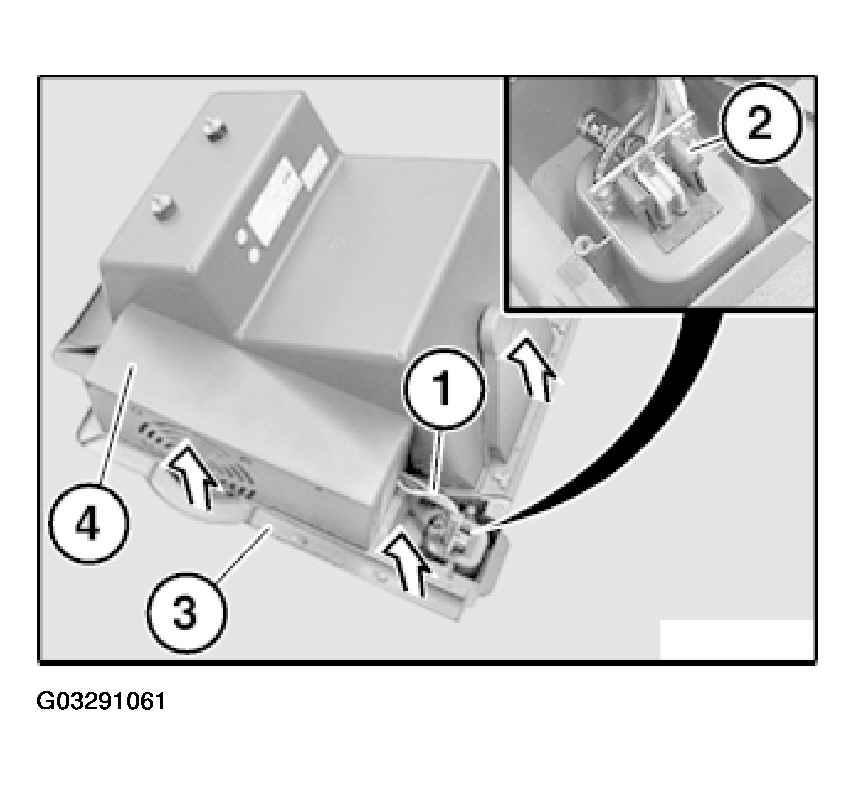

Fig 5: Detaching Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip plug (2).

Detach frame (3) in direction of arrow from cooler box (4).

Installation:

Make sure wiring harness (1) is correctly laid.

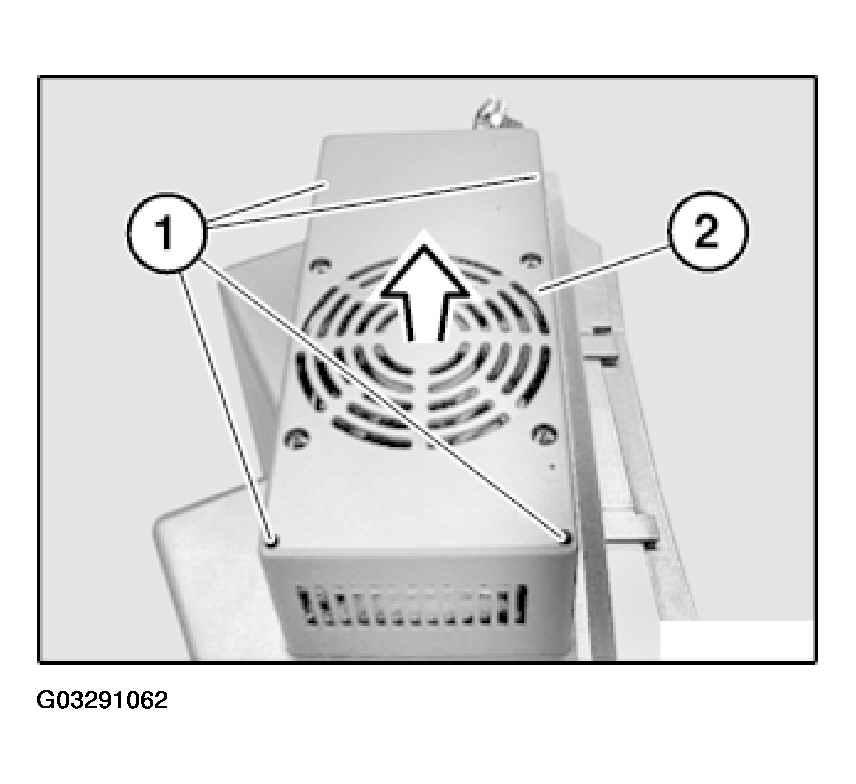

Release screws (1).

Fig 6: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cover (2) in direction of arrow.

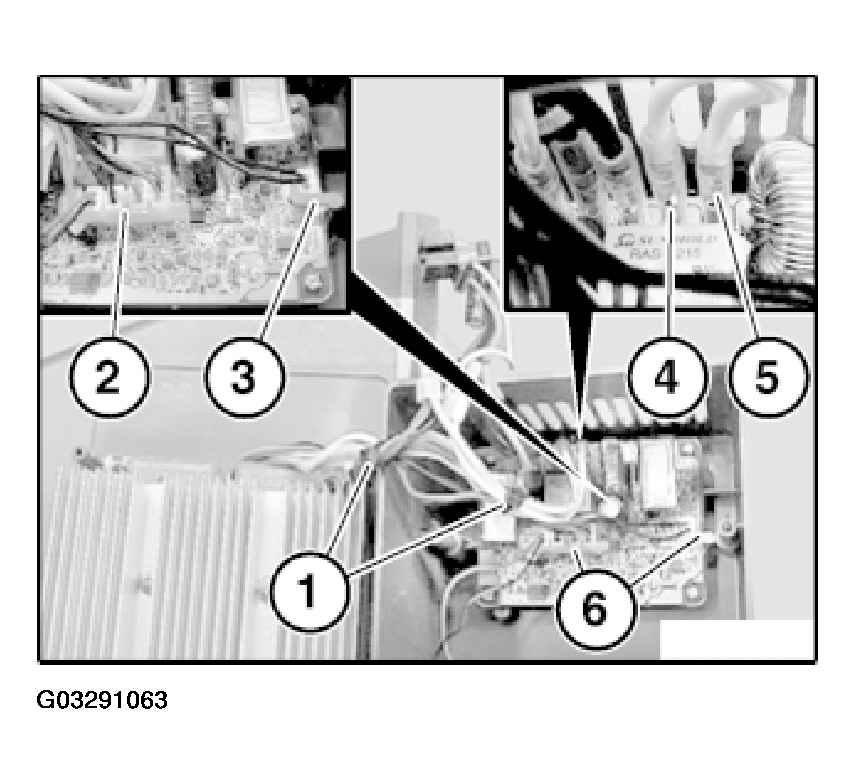

Detach cable straps (1).

Fig 7: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (2), (3), (4) and (5).

If necessary, cut through adhesive bead (6) on plug connections with a suitable knife.

If necessary, separate base from socket housing.

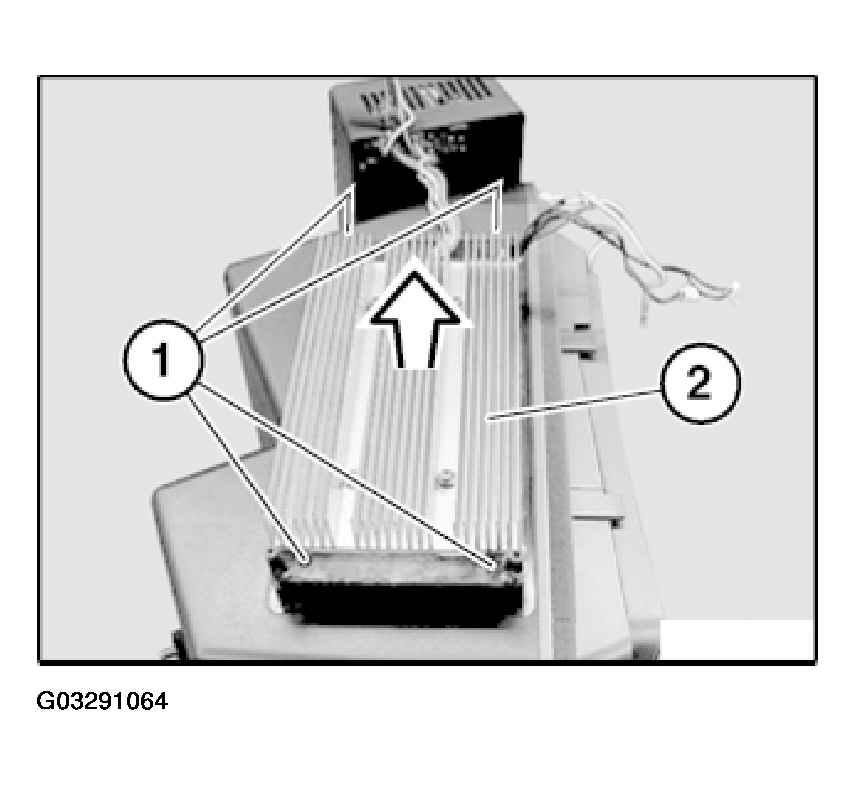

Release screws (1).

Fig 8: Removing Cooling Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure cooling unit (2) is in correct installation position.

Remove cooling unit (2) in direction of arrow.
