64 51 001 Cleaning evaporator

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

64 1 460

WARNING: When handling cleaning agent, observe following protection measures:
Wear protective rubber gloves and protective goggles.
If cleaning agent comes into contact with eyes or skin, wash immediately with lots of water.

IMPORTANT: To avoid dirtying vehicle interior:

Close all air vents.
Switch heating - A/C system to recirculated-air mode.
Cover carpet in work area.

Recycling:

Carry out the cleaning operation in a suitable washing bay as the emerging cleaning agent escapes through the drain openings in the transmission tunnel.

After completing cleaning, allow car to drip-dry for approx. 5 minutes.

Necessary preliminary tasks:

Remove protection under transmission. Refer to REMOVAL & INSTALLATION - (6HP26Z/6HP32Z) .
Remove evaporator temperature sensor. Refer to 64 11 943 REPLACING EVAPORATOR TEMPERATURE SENSOR (HIGH AUTOMATIC A/C) .

Release screw (1).

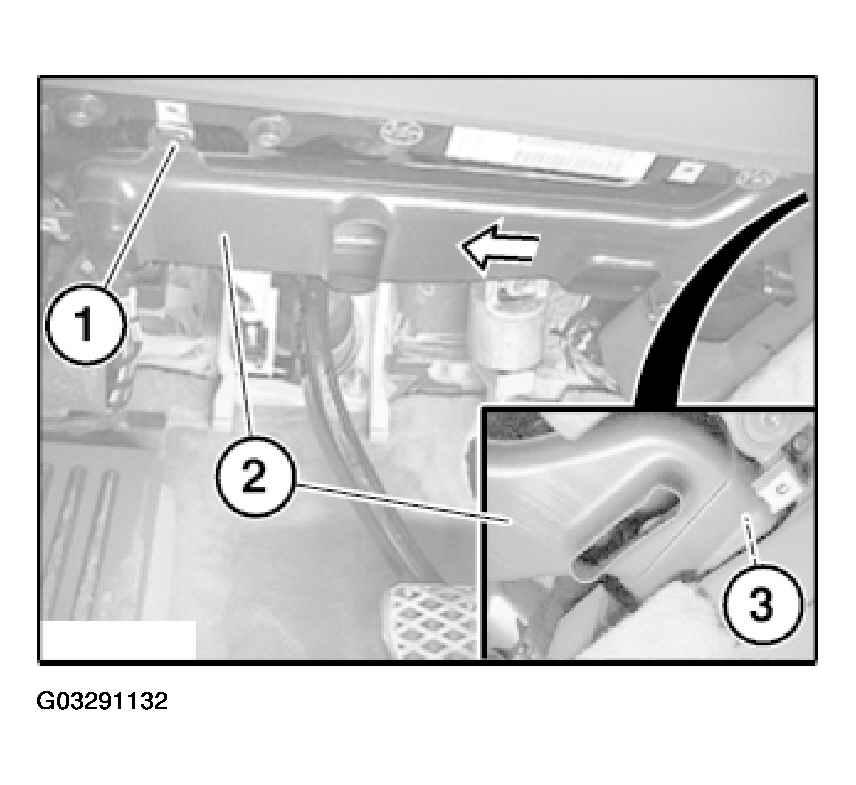

Fig 1: Removing Left Footwell Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Remove left footwell air duct (2) in direction of arrow.

Installation:

Make sure air duct in footwell on left (2) is correctly seated on heating - A/C system (3).

Pull knob (1) in direction of arrow to move folding spray element into insertion position. Insert spray lance with folding spray element 64 1 460 through opening in evaporator temperature sensor.

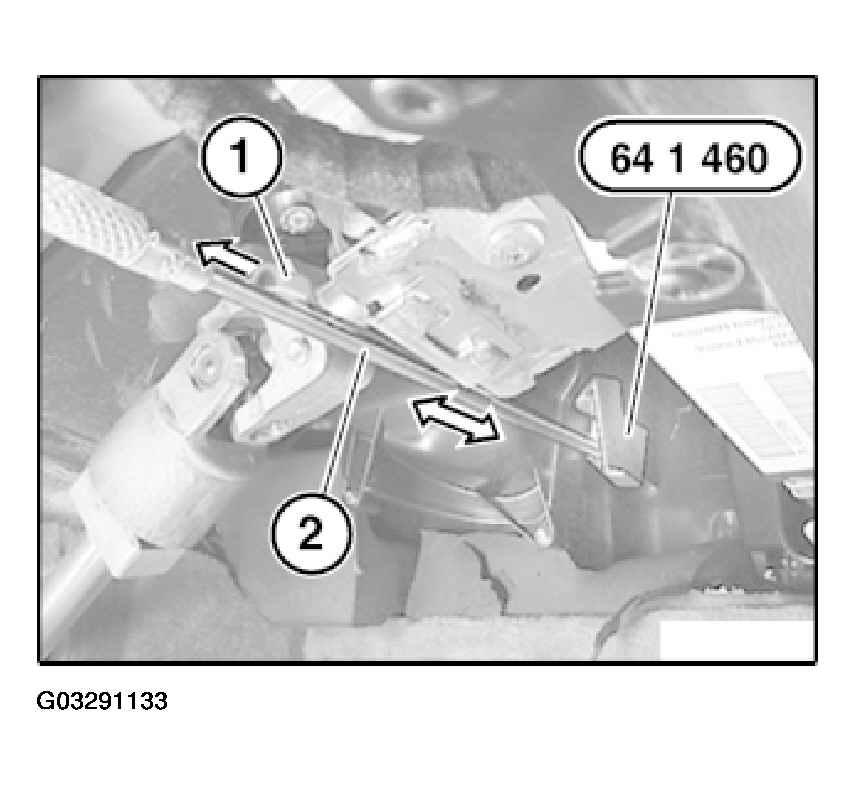

Fig 2: Connecting Spray Lance To Spray Equipment

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Make sure spray lance with folding spray element 64 1 460 is correctly seated in opening in evaporator temperature sensor.

Connect spray lance (2) to spray equipment.

Secure spray lance with folding spray element 64 1 460 and move spray lance (2) back and forth in direction of arrow to spray a uniform amount of cleaning agent over the evaporator.

NOTE: Set heating - A/C system to footwell ventilation and fresh-air mode. Open windows/doors.
Start car and run heating - A/C system at max. fan power for approx. 5 minutes in order to dry evaporator.
In order to eliminate the last remnants of cleaning agent, repeat this procedure shortly before handover to the customer.
