64 11 943 Replacing evaporator temperature sensor (High automatic A/C)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Remove and install panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .
Press sound insulation for A/C unit at rear left downwards slightly.

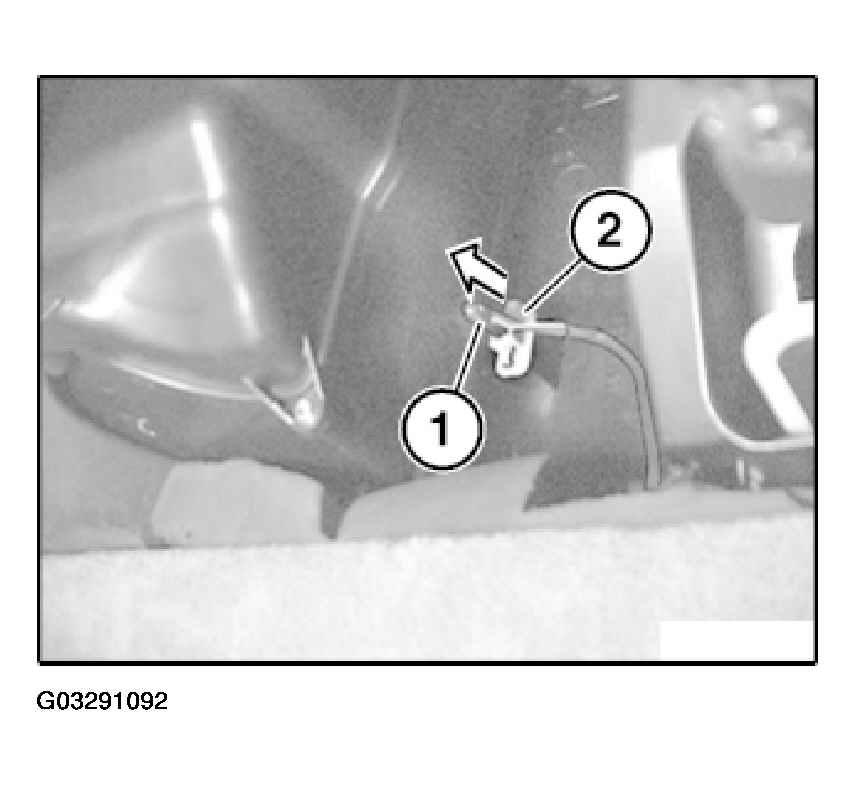

Disconnect plug connection (1).
Pull out evaporator temperature sensor (2) in direction of arrow.
Installation:

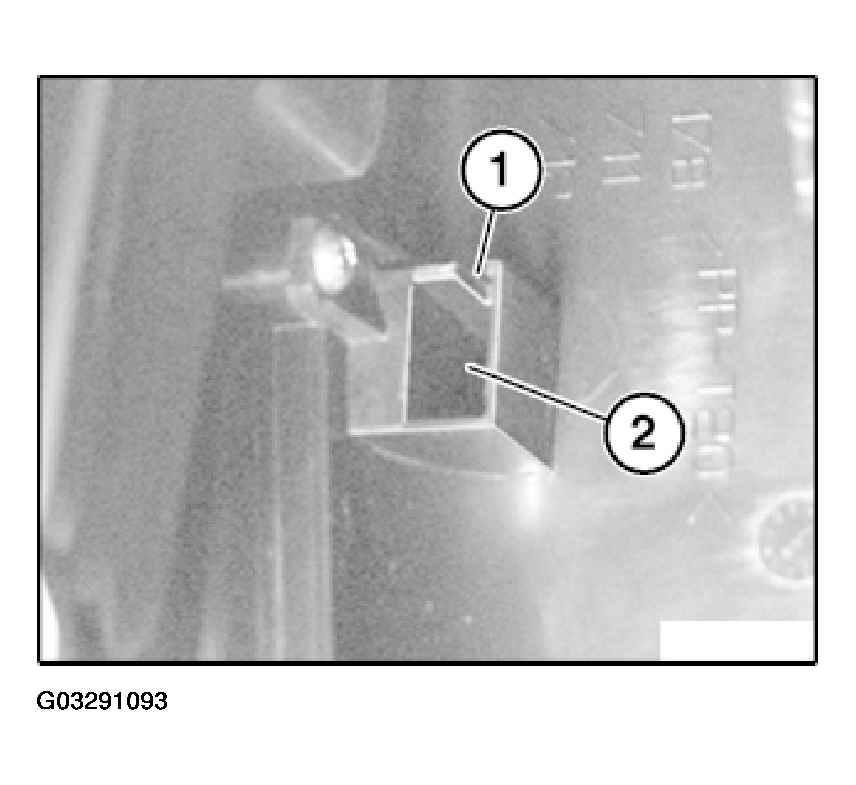

When installing evaporator temperature sensor, pay attention to guide (1) in mount (2).
