63 21 180 Removing and installing/replacing left or right rear light (on side panel)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Open flap in luggage compartment panel.

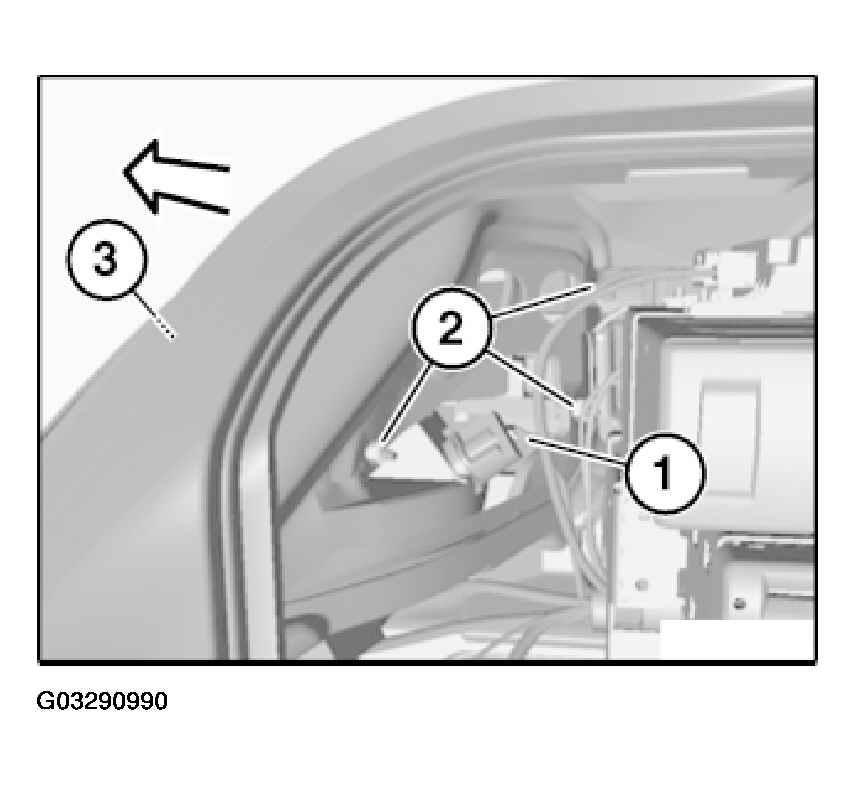

Disconnect plug connection (1).
Release nuts (2) and remove outer rear light (3) in direction of arrow.
Installation:
Make sure gap (outer) is uniform all round between rear light (3) and side panel.
Make sure sealing frame is correctly seated; replace if necessary. Refer to 63 21 101 REPLACING SEALING FRAME FOR LEFT OR RIGHT REAR LIGHT (ON SIDE PANEL) .
Replacement:
- If necessary, remove bulbs.
- Remove socket housing for rear light. Refer to 63 21 055 REPLACING A SOCKET HOUSING FOR LEFT OR RIGHT REAR LIGHT (ON SIDE PANEL) .
