63 21 101 Replacing sealing frame for left or right rear light (on side panel)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove left or right rear light, refer to 63 21 180 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR LIGHT (ON SIDE PANEL)

Detach sealing frame for rear light (1) in direction of arrow from rear light (2).

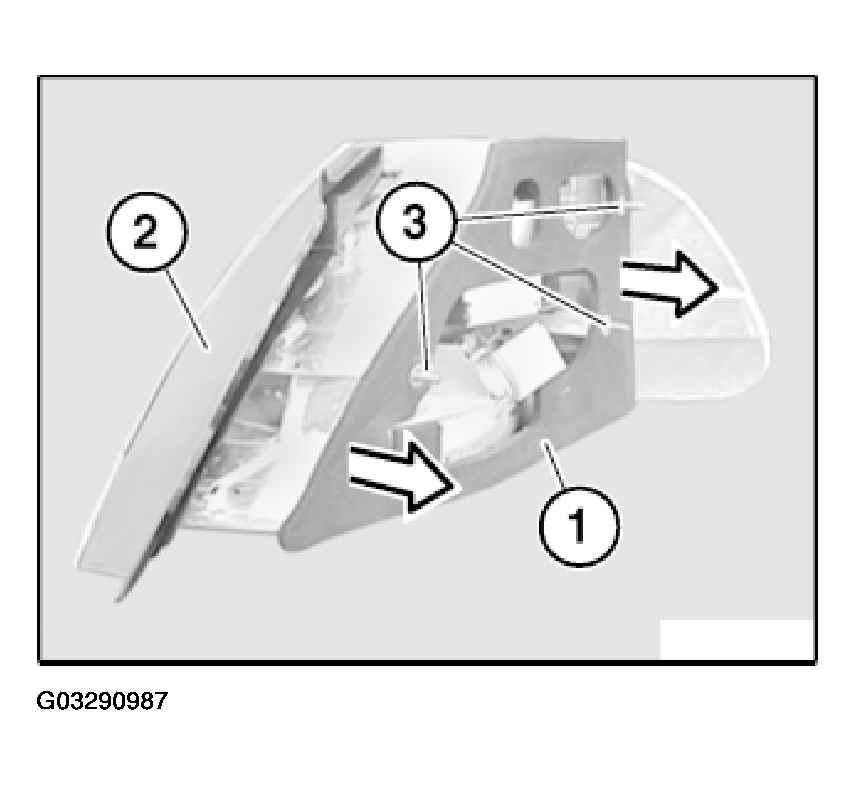

Fig 1: Detaching Sealing Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Sealing frame (1) is centered by way of openings for threaded pins (3).

Make sure sealing frame (1) is correctly bonded all round on rear light (2).
