63 99... Replacing bulb for rear make-up mirror

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove make-up mirror, refer to 51 44 180 REMOVING AND INSTALLING / REPLACING REAR CONSOLE INSERT / MAKE-UP MIRROR IN REAR COMPARTMENT

WARNING: Follow instructions for handling light bulbs (interior lights). Refer to 63 99... INSTRUCTIONS FOR REPLACING LIGHT BULBS (INTERIOR LIGHTS) .

Lever retainer (1) out of cover (3).

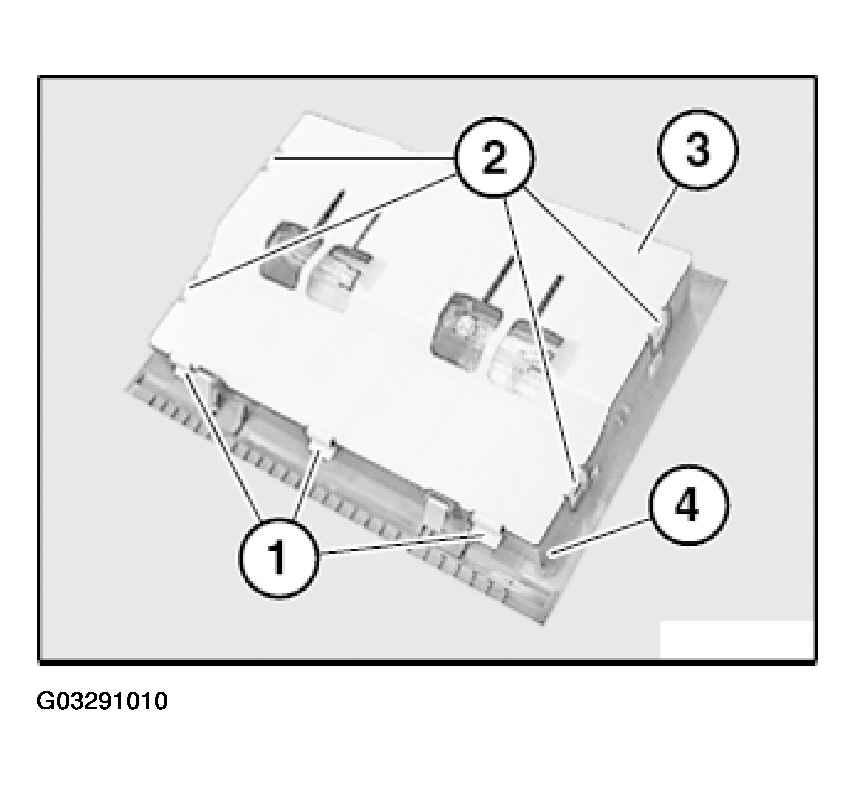

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip holders (2) from housing section (4).

Carefully remove cover (3) towards top.

Lever out bulb (2) underneath.

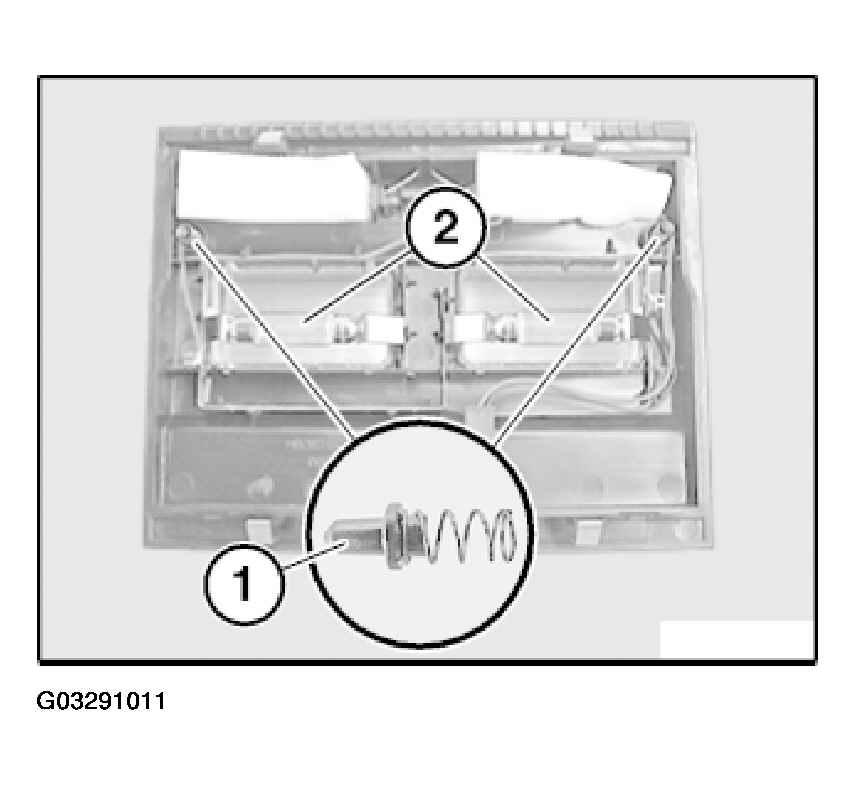

Fig 2: Levering Out Bulb

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Make sure ejector (1) is correctly seated.

Installation:

Note bulb type. Refer to LIGHTS - TECHNICAL DATA - 745I - E65 .
