63 99 295 Replacing bulb for auxiliary turn signal light, front left or right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

Remove front auxiliary turn signal light, refer to 63 13 200 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT AUXILIARY TURN SIGNAL LAMP

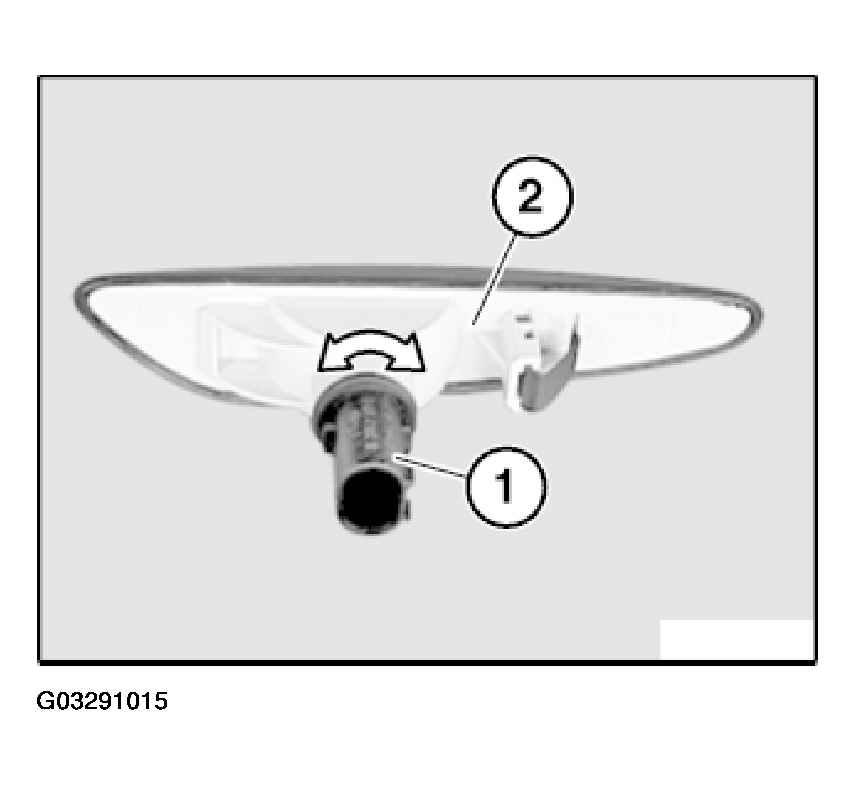

Turn bulb holder (1) and remove from additional front turn signal lamp (2).

Fig 1: Removing Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Additional turn signal lamp, front left:

To open, turn bulb holder (1) counterclockwise.

Additional turn signal lamp, front right:

To open, turn bulb holder (1) clockwise.

Pull bulb out of holder (1).

Installation:

Note bulb type. Refer to LIGHTS - TECHNICAL DATA - 745I - E65 .
