63 13 200 Removing and installing/replacing front left or right auxiliary turn signal lamp

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

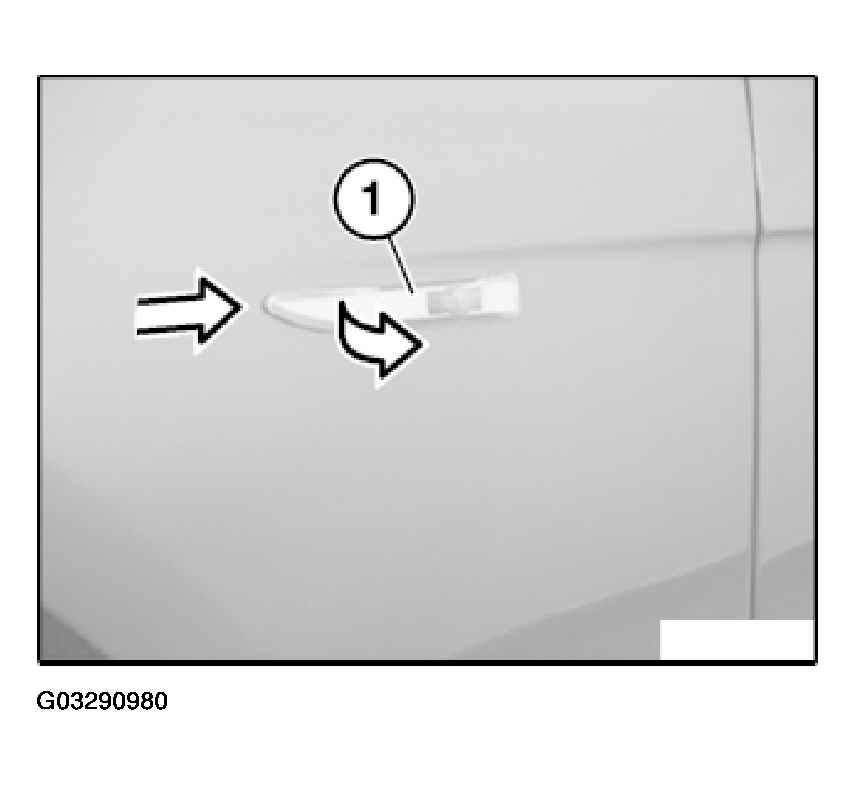

Slide front auxiliary turn signal lamp (1) towards rear and fold out in direction of arrow.

Fig 1: Sliding Front Auxiliary Turn Signal Lamp Towards Rear

Courtesy of BMW OF NORTH AMERICA, INC.

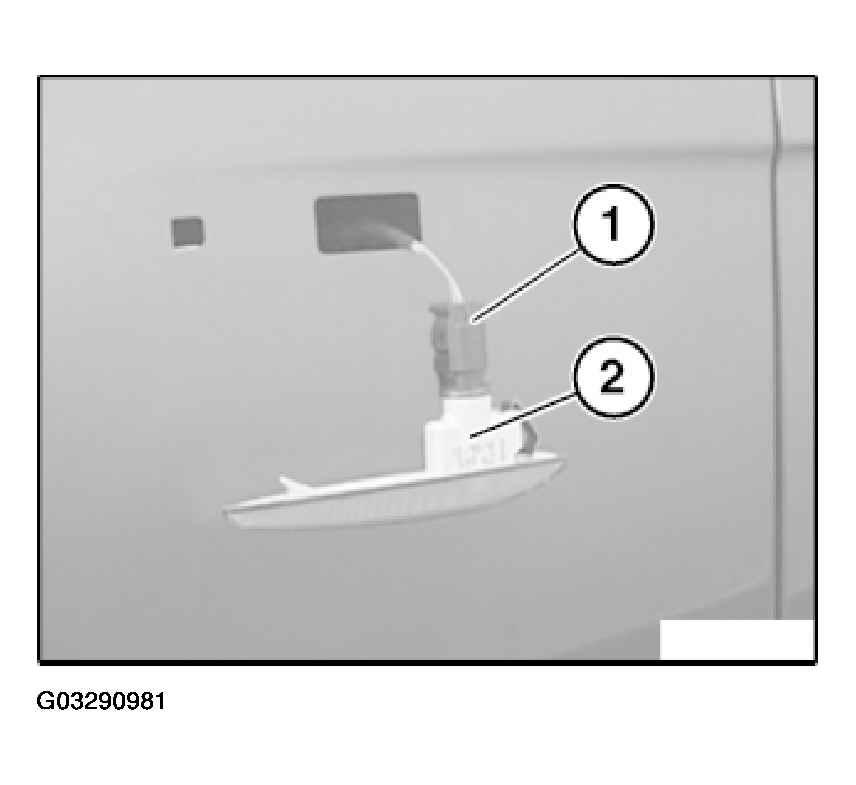

Pull out additional front turn signal lamp (1) up to bulb holder, turn through approx. 90° and feed out.

Disconnect plug connection (1) and remove additional front turn signal lamp (2).

Fig 2: Removing Additional Front Turn Signal Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Follow instructions for handling light bulbs (exterior lights). Refer to 63 99... INSTRUCTIONS FOR HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Replacement:

If necessary, remove bulbs.
