63 12... Replacing upper holder on headlight (repair kit)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete headlight. Refer to 63 12 001 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT (UP TO 03/2005) or 63 12 010 REMOVING AND INSTALLING LEFT HEADLIGHT (XENON HEADLIGHT) .

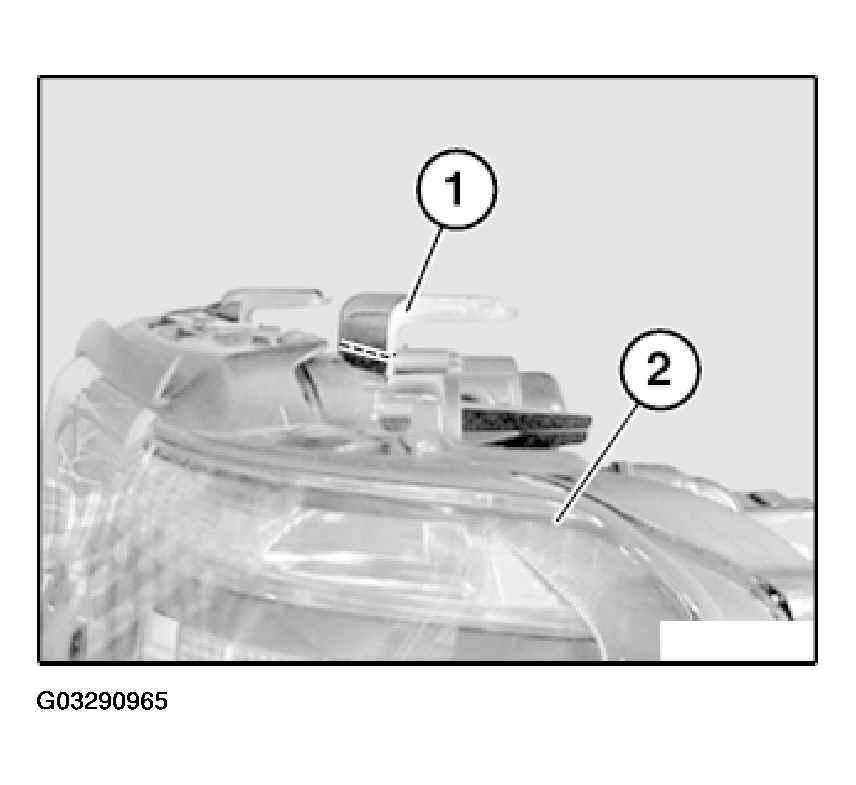

Cut off holder (1) along dotted line from headlight (2).

Fig 1: Cutting Off Holder

Courtesy of BMW OF NORTH AMERICA, INC.

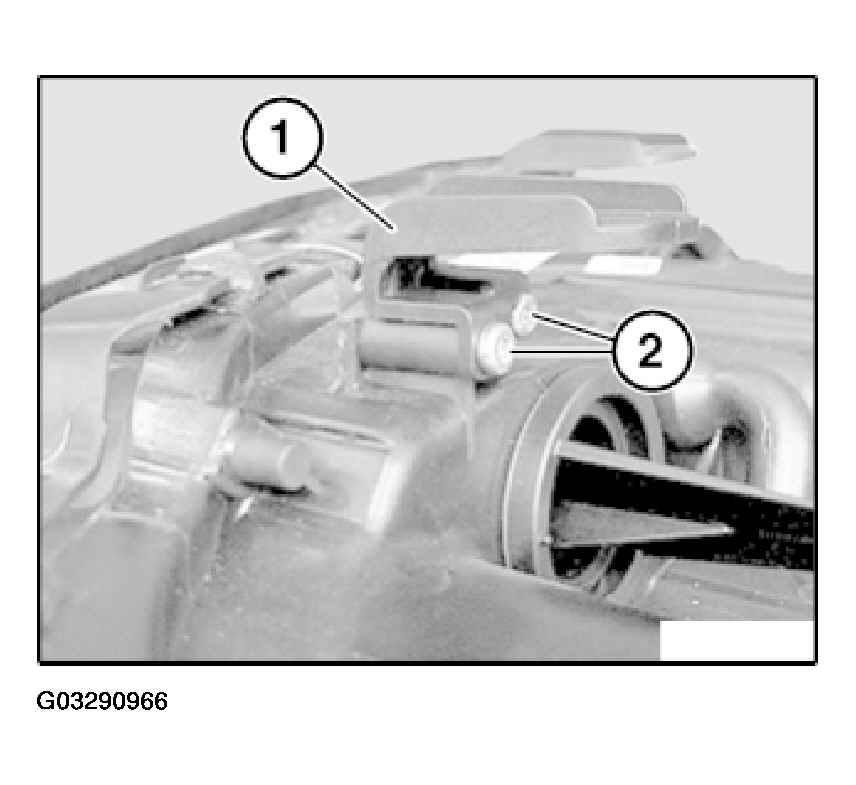

Secure holder (1) with screws (2).

Fig 2: Securing Holder With Screws

Courtesy of BMW OF NORTH AMERICA, INC.
