63 12 950 Replacing a lower holder for headlight mounting

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete headlight. Refer to 63 12 001 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT (UP TO 03/2005) or 63 12 010 REMOVING AND INSTALLING LEFT HEADLIGHT (XENON HEADLIGHT) .

Version with headlight cleaning system:

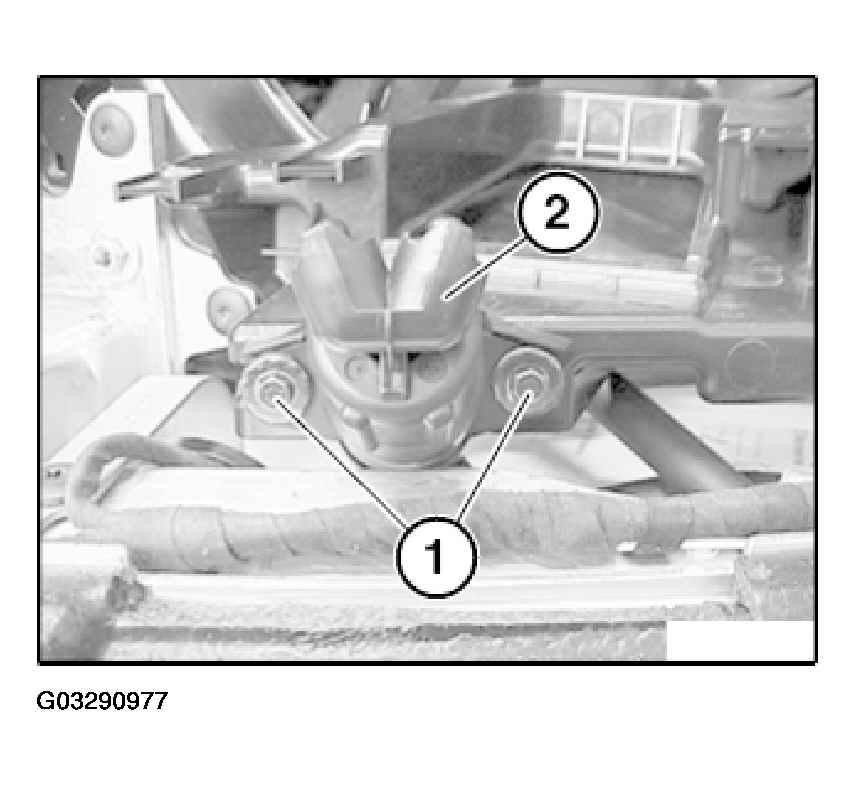

If necessary, release screws (1) and fold back H.P. nozzle (2).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

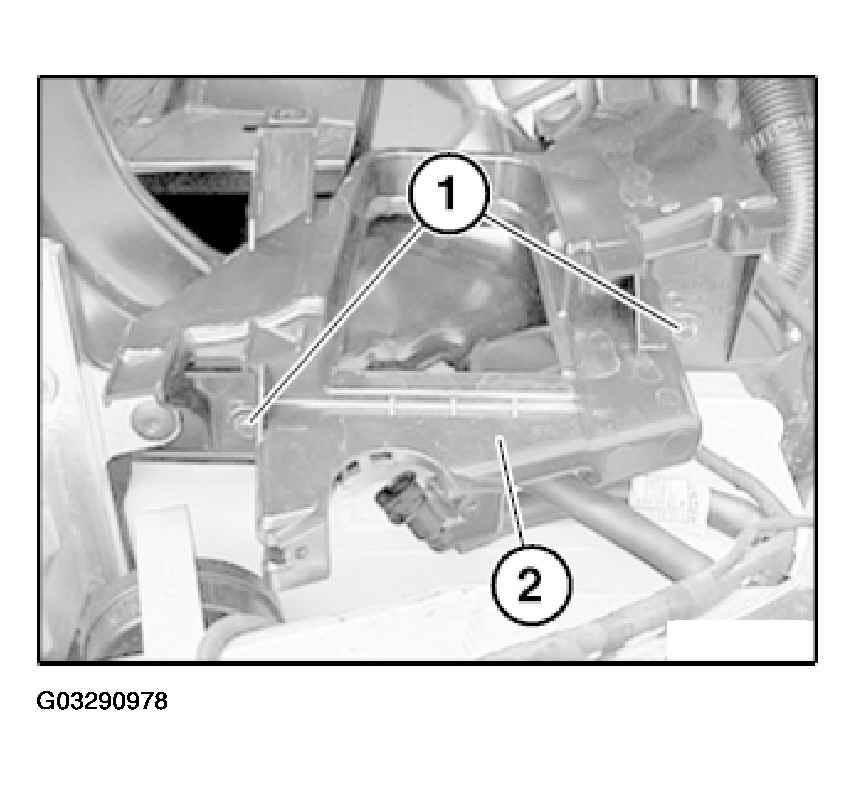

Release screws (1) and remove holder for headlight mounting (2).

Fig 2: Removing Holder For Headlight Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install holder for headlight mounting, tighten screws until hand-tight.

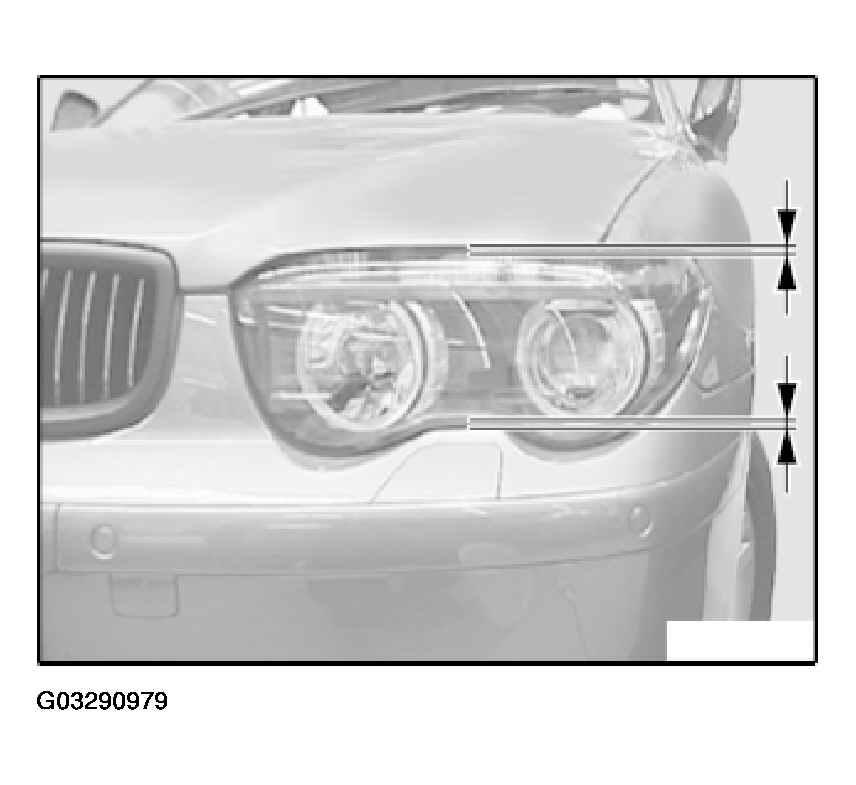

Fig 3: Installing Headlight Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Install headlight and adjust gap dimensions.

Tighten down screws on holder for headlight mounting.
