63 10 014 Adjusting fog lamps

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Observe test preconditions for adjusting headlights. Refer to 63 10... Test requirements for headlight vertical aim adjustment .

Build date up to 03/2005

Adjust fog lamp (1) at adjusting screw (2).

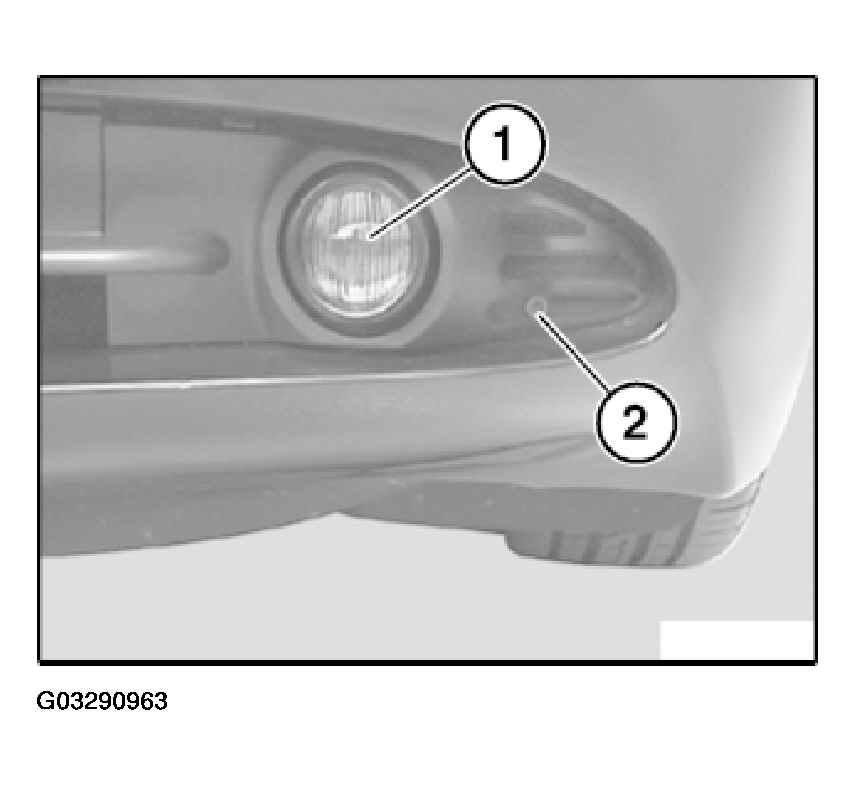

Fig 1: Adjusting Fog Lamp (Build Date Up To 03/2005)

Courtesy of BMW OF NORTH AMERICA, INC.

Build date from 03/2005

Adjust fog lamp (1) at adjusting screw (2).

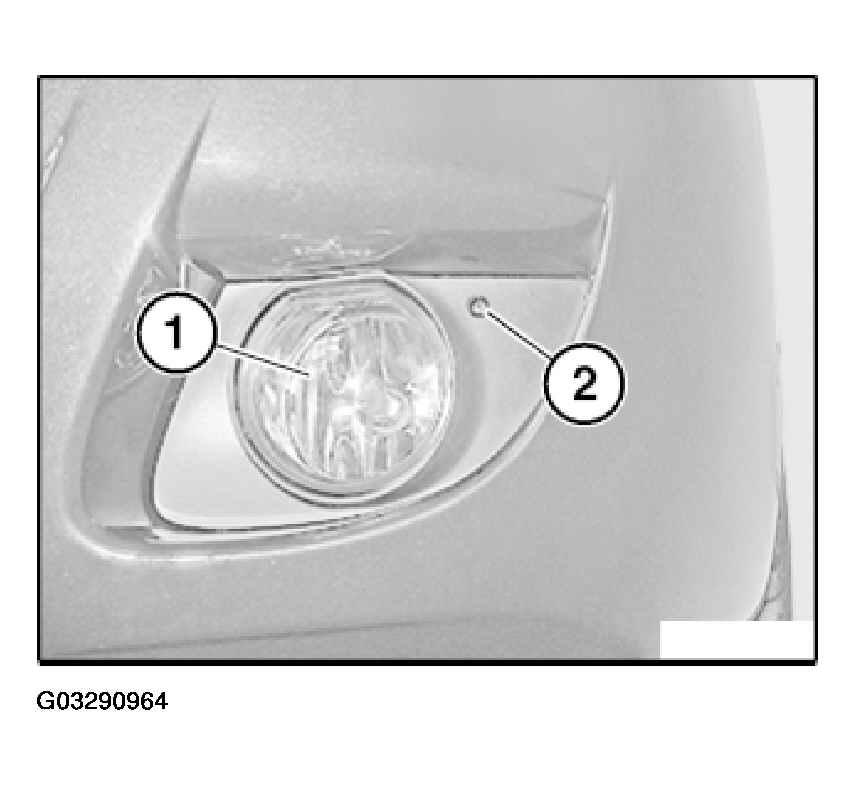

Fig 2: Adjusting Fog Lamp (Build Date From 03/2005)

Courtesy of BMW OF NORTH AMERICA, INC.
