Special tools required:

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

00 9 341

Remove and install center armrest (front). Refer to 51 16 195 REMOVING AND INSTALLING CENTRE ARMREST (FRONT) .

CAUTION: Set down center armrest on a suitable surface.

Release screws (1).

Lever out front center armrest trim (2) with special tool 00 9 341 and remove and direction of arrow.

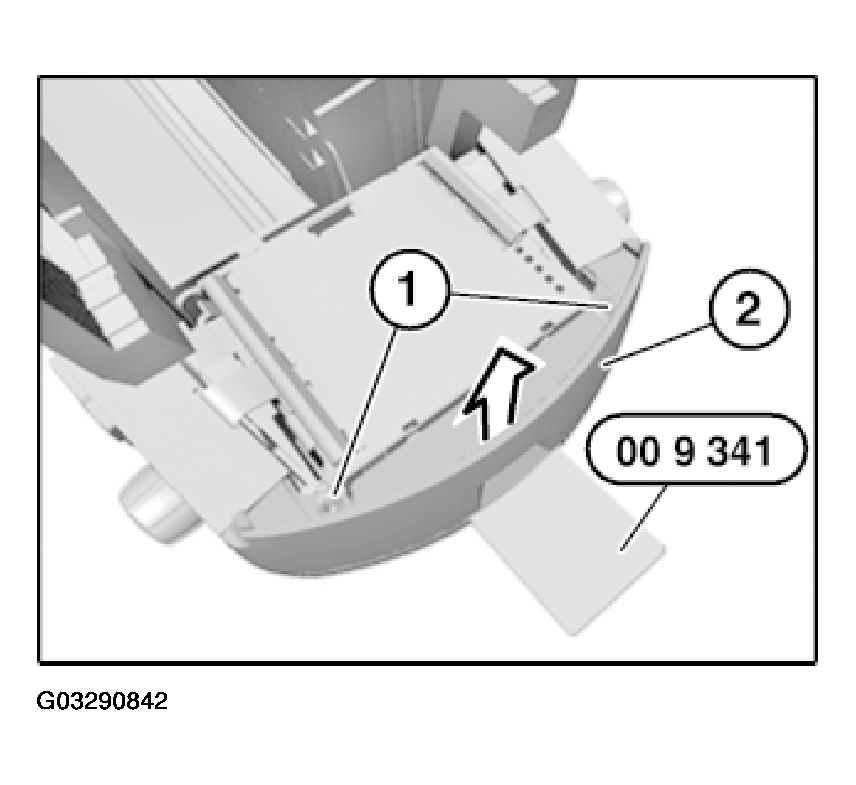

Fig 1: Levering Out Front Center Armrest Trim

G03290842

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1).

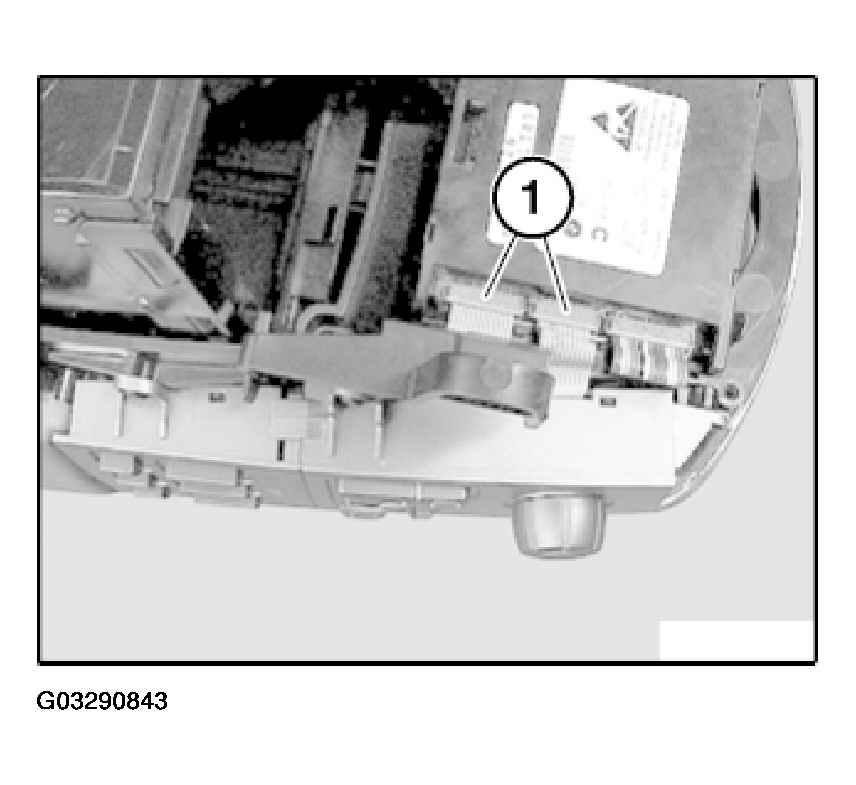

Fig 2: Disconnecting Plug Connections

G03290843

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Feed out switch combination for seat adjustment (2) in direction of arrow.

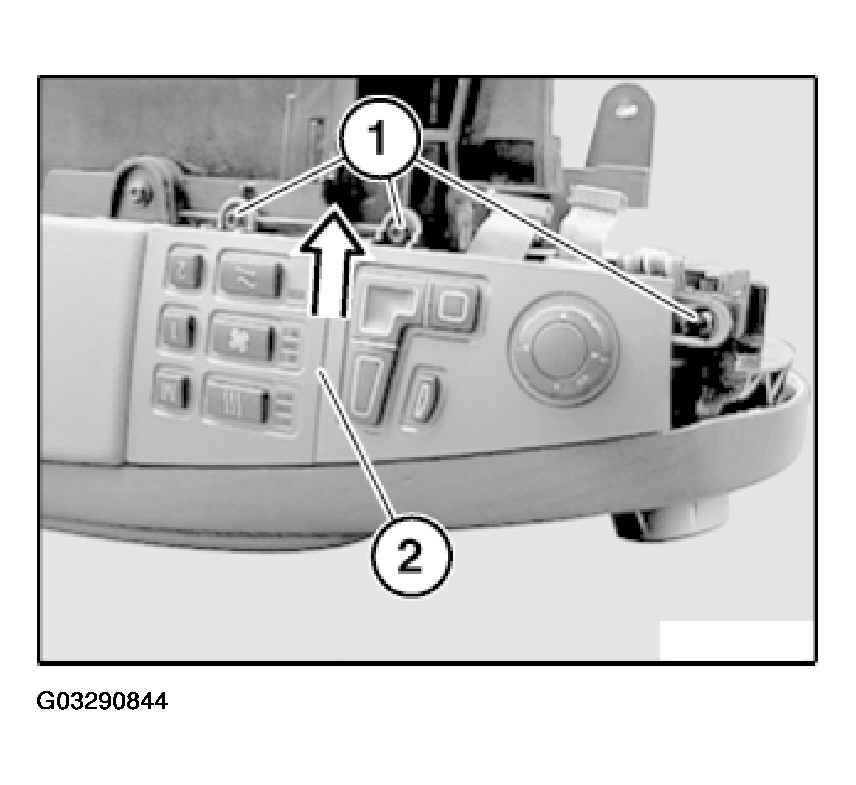

Fig 3: Removing Switch Combination For Seat Adjustment

G03290844

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure guides (1) are correctly seated in mountings (2).

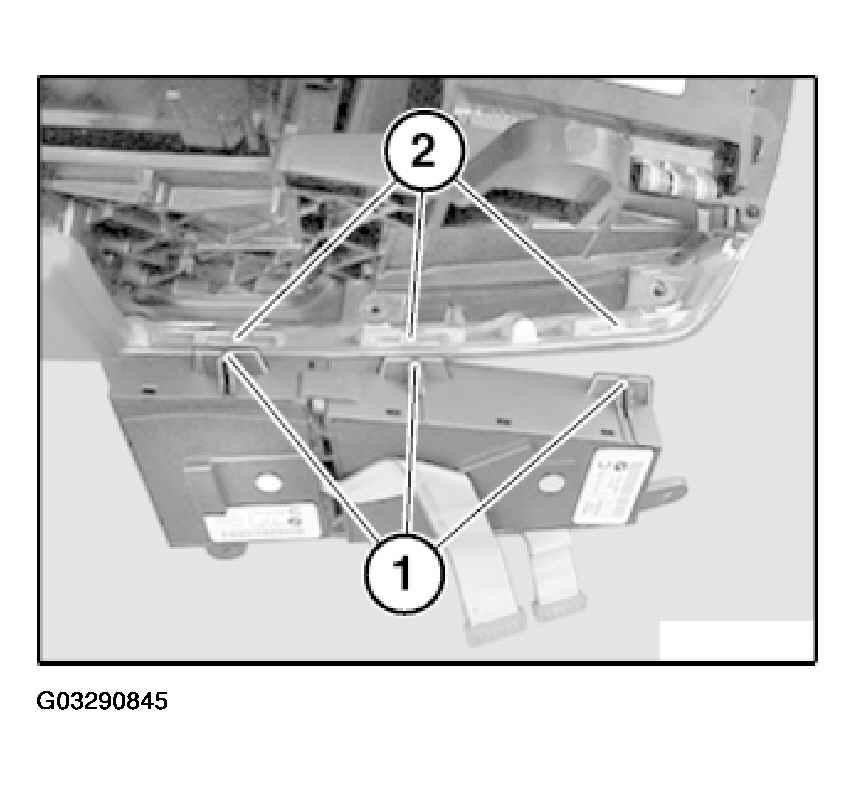

Fig 4: Identifying Guides In Mountings

G03290845

Courtesy of BMW OF NORTH AMERICA, INC.
