61 31 176 Removing and installing/replacing emergency call button

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete ceiling light (front). Refer to 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT (FRONT) .

Remove front console insert. Refer to 61 31 175 REMOVING AND INSTALLING/REPLACING SWITCH FOR SLIDE/TILT SUNROOF .

Unlock emergency call button (1) and press from inside out of front console insert (2).

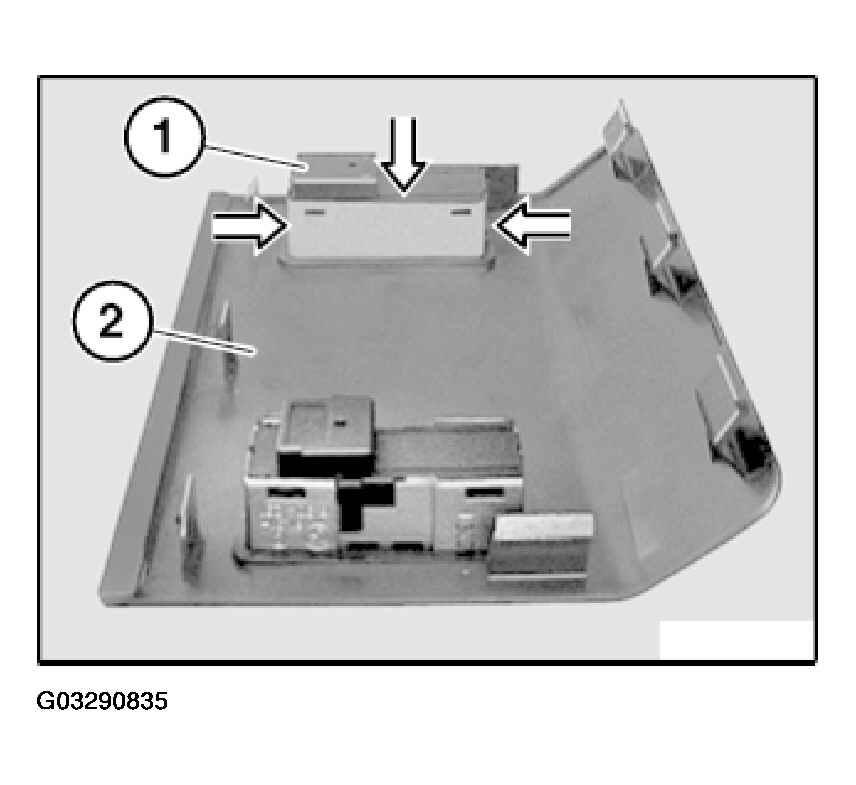

Fig 1: Unlocking Emergency Call Button
G03290835Courtesy of BMW OF NORTH AMERICA, INC.
