61 31 175 Removing and installing/replacing switch for slide/tilt sunroof

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete ceiling light (front). Refer to 63 31 000 REMOVING AND INSTALLING/REPLACING COMPLETE CEILING LIGHT (FRONT) .

Lever out front console insert (1) in direction of arrow.

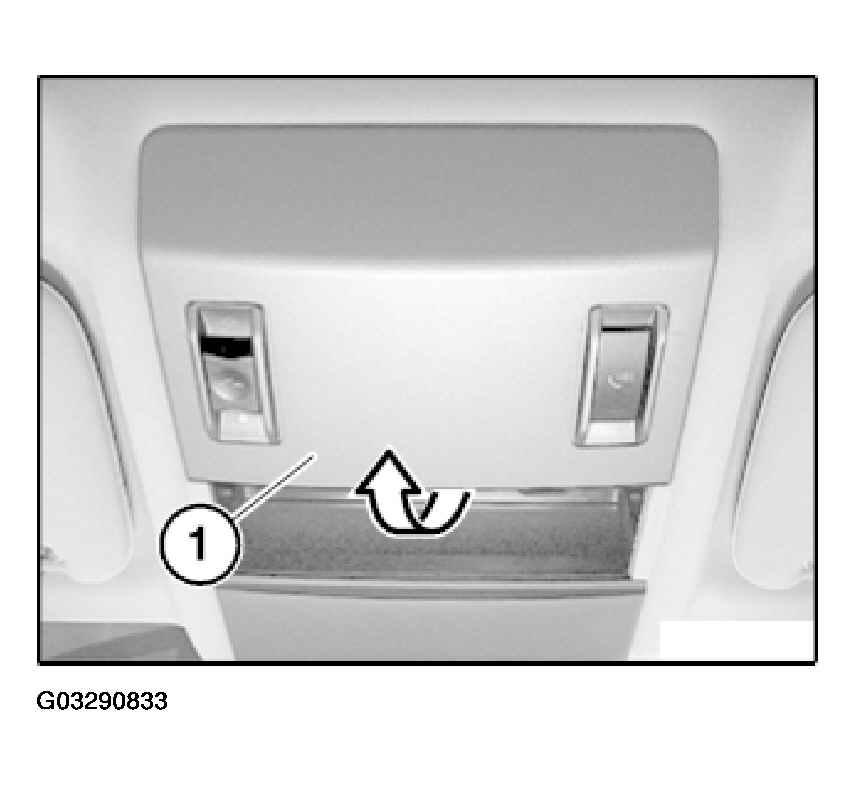

Fig 1: Removing Front Console Insert

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection underneath and remove front console insert (1).

Unlock sunroof switch (1) and press from inside out of front console insert (2).

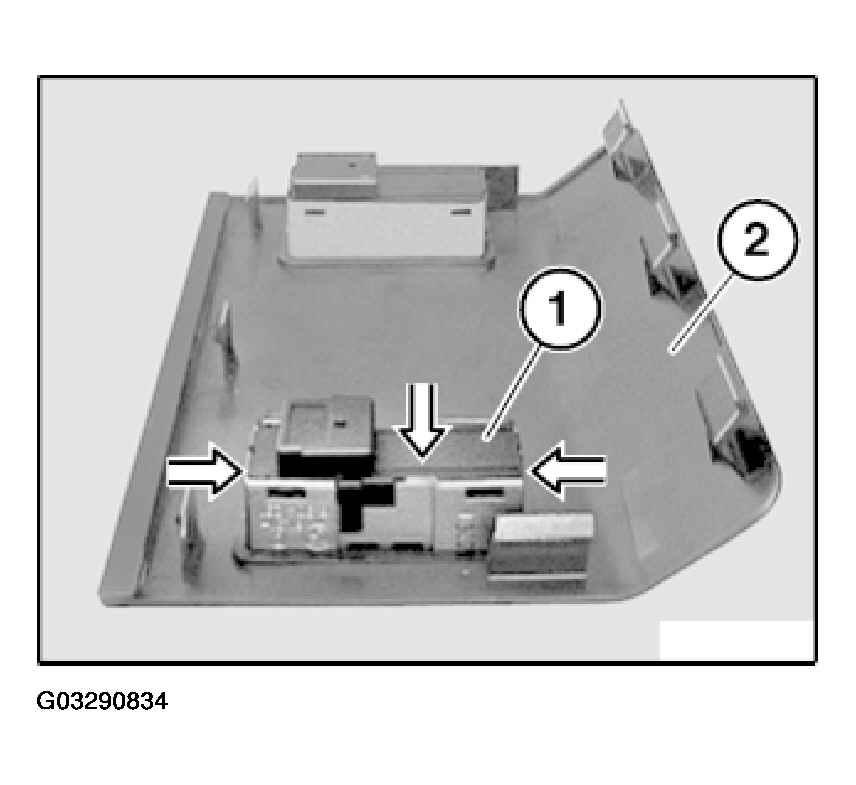

Fig 2: Unlocking Sunroof Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Initialize sunroof. Refer to 54 0... NOTES ON STEEL AND GLASS SLIDE/TILT SUNROOFS (INITIALIZATION/NORMALIZATION/LEARNING OF CHARACTERISTIC CURVE) .
