61 31 152 Removing and installing (replacing) control unit in center armrest at front

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 341

Necessary preliminary tasks:

Remove center armrest (front). Refer to 51 16 195 REMOVING AND INSTALLING CENTRE ARMREST (FRONT) .

CAUTION: To avoid damage, place center armrest on a suitable surface.

Disconnect plug connections (1) from control unit in center armrest (2).

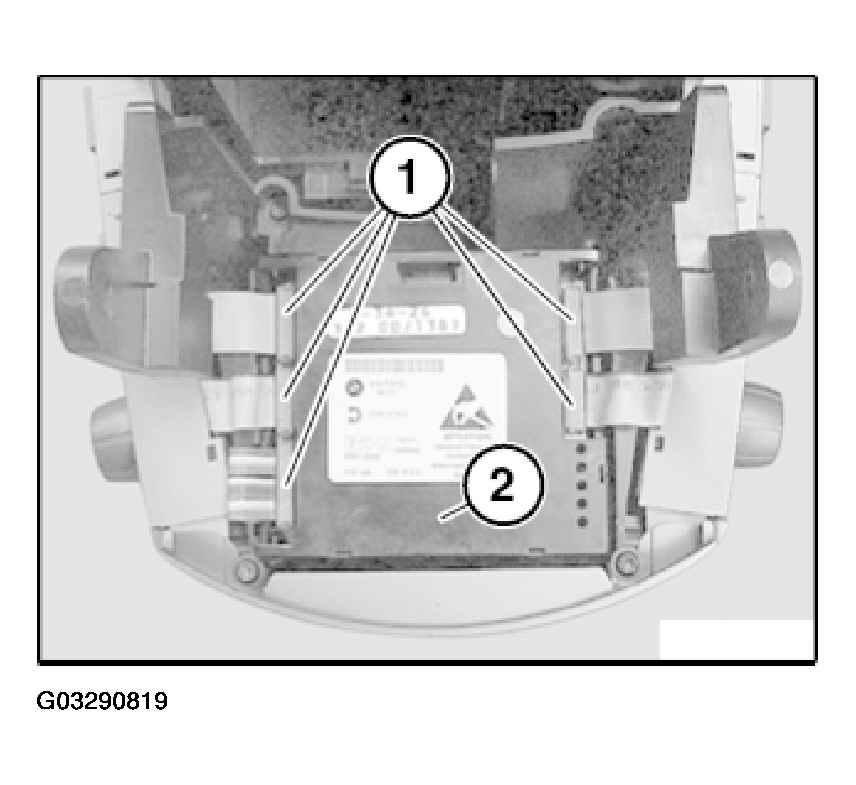

Fig 1: Disconnecting Plug Connections

G03290819

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

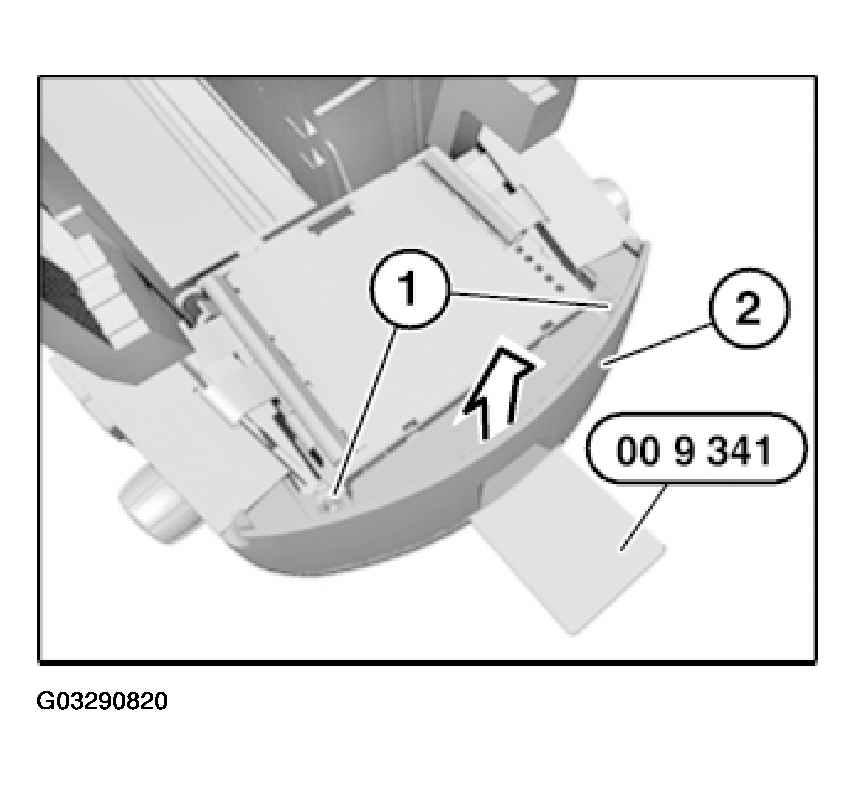

Fig 2: Levering Out Front Center Armrest Trim

G03290820

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out front center armrest trim (2) with special tool 00 9 341 and remove and direction of arrow.

Unlock catches (1), feed out control unit in center armrest (2) in direction of arrow and remove.

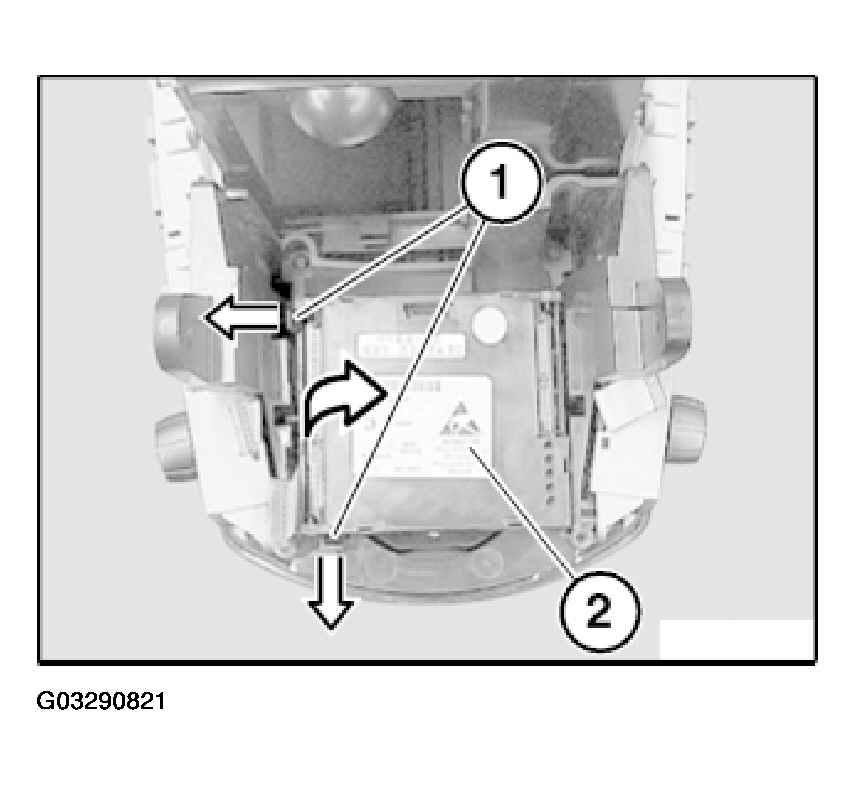

Fig 3: Feeding Out Control Unit In Center Armrest

G03290821

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

Fig 4: View Of Control Unit

G03290822

Courtesy of BMW OF NORTH AMERICA, INC.
