61 31 019 Removing and installing (replacing) ignition starter switch

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove audio system controller, refer to 65 12 200 REMOVING AND INSTALLING (REPLACING) AUDIO SYSTEM CONTROLLER
Remove operator unit for heater/air conditioner, refer to 64 11 377 REMOVING AND INSTALLING (REPLACING) CONTROL PANEL FOR HEATER - A/C SYSTEM

Release screws (1) of ignition starter switch (2).

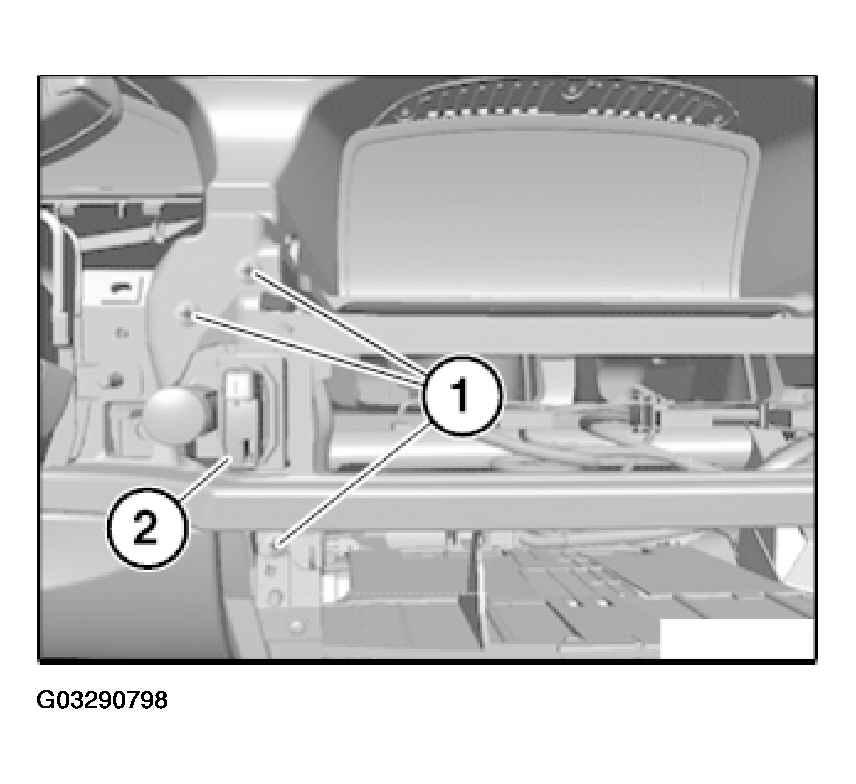

Fig 1: Releasing Screws Of Ignition Starter Switch

G03290798

Courtesy of BMW OF NORTH AMERICA, INC.

Slide ignition starter switch (1) forwards and feed out in direction of arrow.

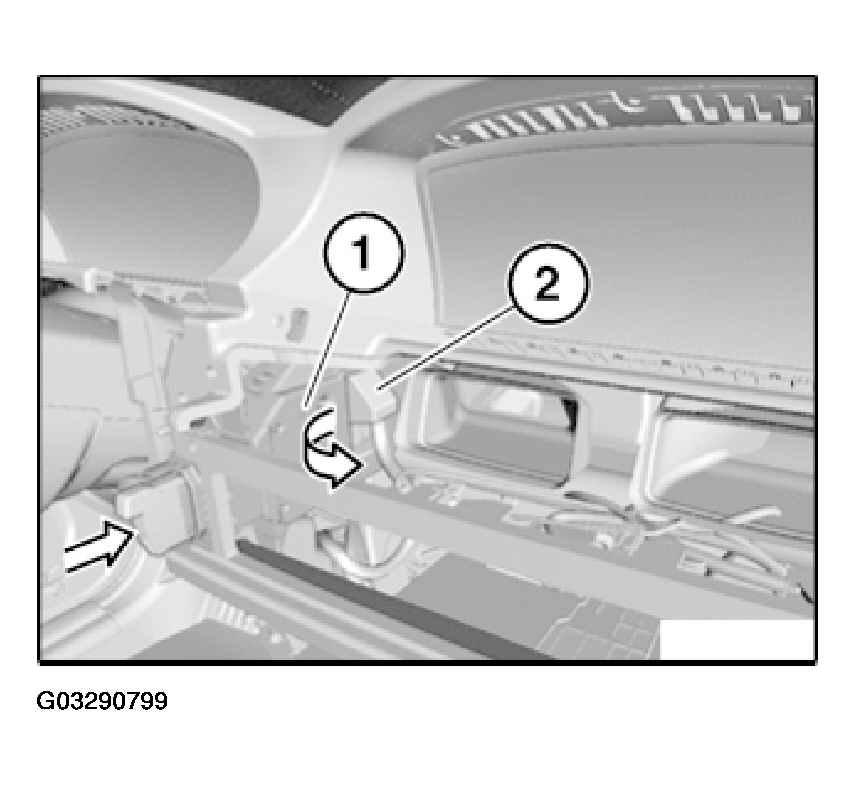

Fig 2: Removing Ignition Starter Switch

G03290799

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (2) and remove ignition starter switch (1).

Replacement:

Carry out coding/programming.

Fig 3: Identifying Controller

G03290800

Courtesy of BMW OF NORTH AMERICA, INC.

Observe following IDC specifications:

Programming
Coding
Car & Key Memory
CD "CIP"

Version with independent heating:

Initialize all independent heating remote controls. Refer to 64 12... INITIALIZING INDEPENDENT HEATING REMOTE CONTROL .
